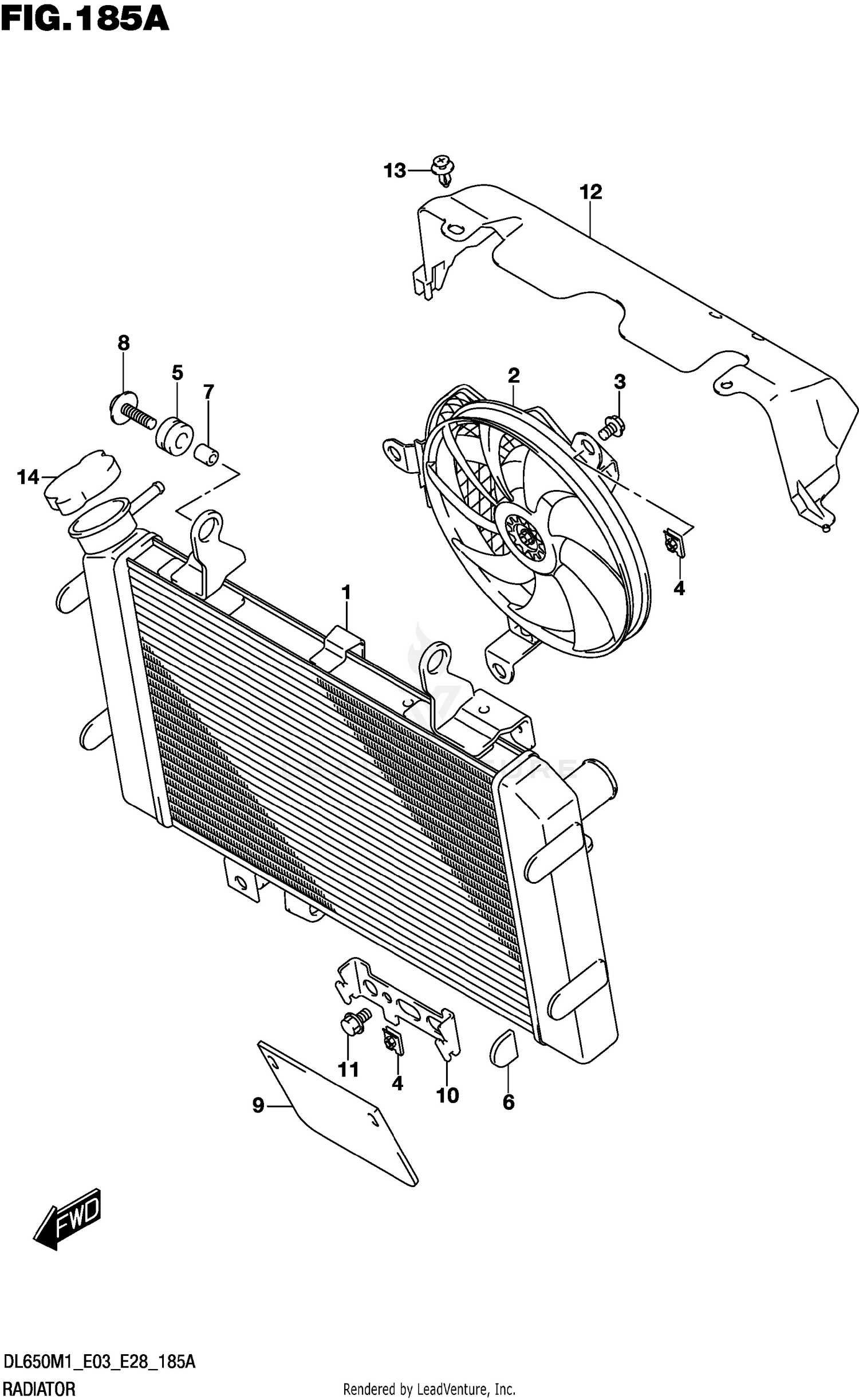

Radiator Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RADIATOR ASSY,WATER
17710-11J00-000
|
|||
|
Unavailable |
|||
|
#2
FAN ASSY,RADIATOR
17800-11J00-000
|
|||
|
Unavailable |
|||
|
#3
BOLT,FAN ASSY
17711-08J00-000
|
|||
|
Unavailable |
|||
|
#4
NUT,FAN ASSY
17712-40F00-000
|
|||
|
Unavailable |
|||
|
#5
CUSHION (10X20X10)
09320-10501-000
|
|||
|
Unavailable |
|||
|
#6
CUSHION
09329-18001-000
|
|||
|
Unavailable |
|||
|
#7
SPACER (6.5X10X10)
09180-06310-000
|
|||
|
Unavailable |
|||
|
#8
BOLT (6X25)
09118-06097-000
|
|||
|
Unavailable |
|||
|
#9
RUBBER,RADIATOR UNDER
17781-17G00-000
|
|||
|
Unavailable |
|||
|
#10
BRACKET,RDTR UNDER RUBBER
17741-17G00-000
|
|||
|
Unavailable |
|||
|
#11
BOLT
01550-0612A-000
|
|||
|
Unavailable |
|||
|
#12
SHIELD,RADIATOR HEAT
17771-11J00-000
|
|||
|
Unavailable |
|||
|
#13
CLIP (BLACK)
09409-06322-5PK
|
$3.94 | ||
|
Available to order. Add to View Price |
|||
|
#14
CAP,RADIATOR (1.1)
17730-08J00-000
|
|||
|
Unavailable |
|||
