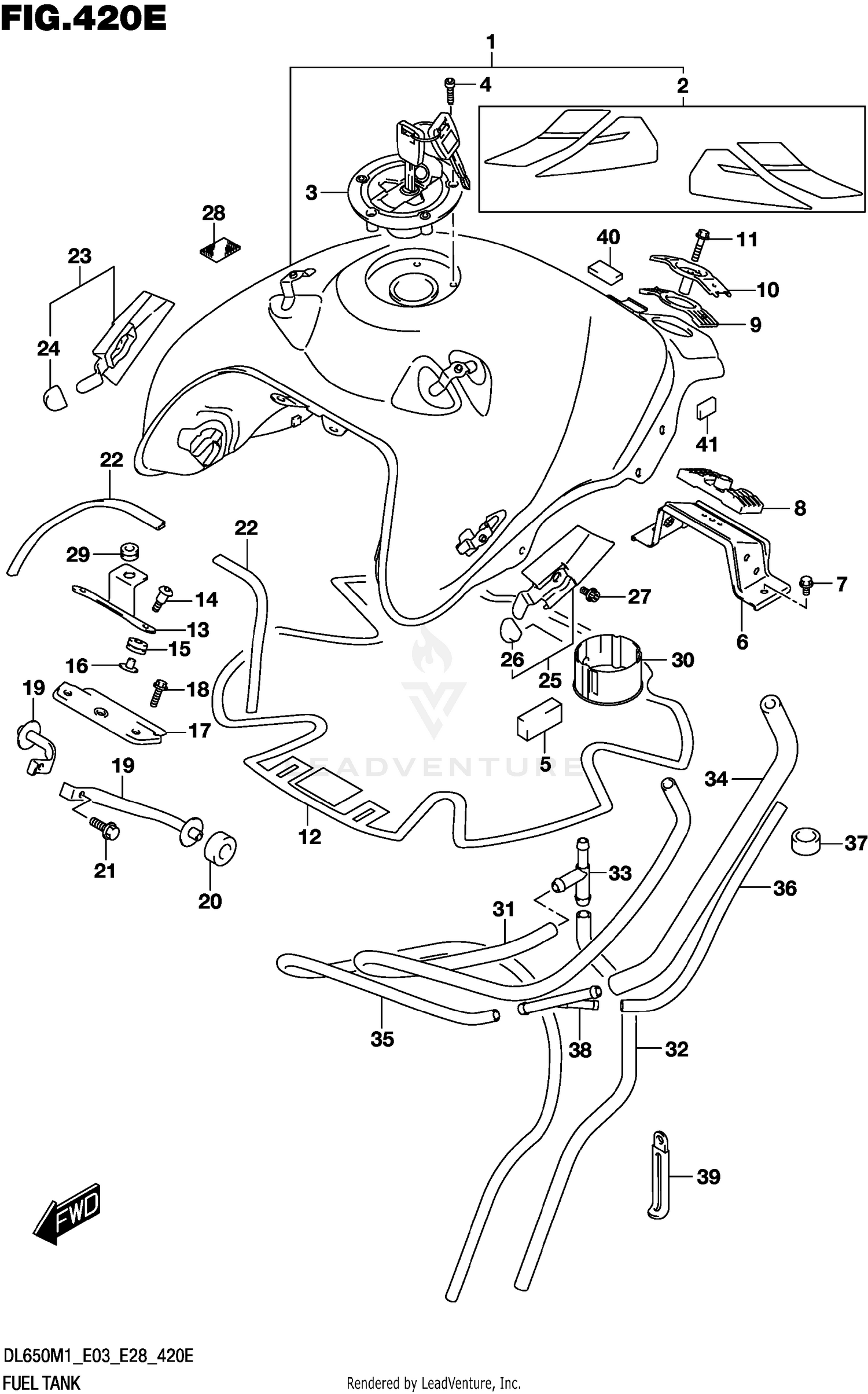

Fuel Tank (dl650xa:(e03,e28)) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1-1
TANK ASSY, FUEL (YELLOW)
44100-28KG0-YU1
|
$1,228.12 | ||
|
Available to order. Add to View Price |
|||
|
#1-2
TANK ASSY,FUEL (GRAY)
44100-28KG0-QEB
|
$1,228.12 | ||
|
Available to order. Add to View Price |
|||
|
#1-3
TANK ASSY, FUEL (WHITE)
44100-28KG0-YUH
|
$1,228.12 | ||
|
Available to order. Add to View Price |
|||
|
#1-4
TANK ASSY,FUEL (BLACK)
44100-28KG0-YVB
|
$1,228.79 | ||
|
Available to order. Add to View Price |
|||
|
#2-1
.TAPE SET, FUEL TANK
68110-28K30-B5U
|
$71.06 | ||
|
Available to order. Add to View Price |
|||
|
#2-2
.TAPE SET,FUEL TANK (BLUE,GRA
68110-28K30-B5V
|
$71.06 | ||
|
Available to order. Add to View Price |
|||
|
#2-3
.TAPE SET, FUEL TANK
68110-28K30-B5W
|
$71.06 | ||
|
Available to order. Add to View Price |
|||
|
#2-4
.TAPE SET,FUEL TANK (RED,BLAC
68110-28K30-B4S
|
$71.06 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAP SET,FUEL TANK FILLER
44200-17840-000
|
|||
|
Unavailable |
|||
|
#4
BOLT,FUEL TANK FILLER CAP
44244-11J00-000
|
|||
|
Unavailable |
|||
|
#5
CUSHION,FUEL TANK SIDE
44541-28K00-000
|
|||
|
Unavailable |
|||
|
#6
BRACKET,FUEL TANK REAR
44550-06G10-000
|
|||
|
Unavailable |
|||
|
#7
BOLT (8X16)
01550-0816A-000
|
|||
|
Unavailable |
|||
|
#8
CUSHION,FUEL TANK REAR LOWER
44545-06G00-000
|
|||
|
Unavailable |
|||
|
#9
CUSHION,FUEL TANK REAR UPPER
44542-06G00-000
|
|||
|
Unavailable |
|||
|
#10
BRACKET,FUEL TANK REAR UP
44530-06G00-000
|
|||
|
Unavailable |
|||
|
#11
BOLT
01550-0835A-000
|
|||
|
Unavailable |
|||
|
#12
SHIELD,FUEL TANK CENTER
44194-11J00-000
|
|||
|
Unavailable |
|||
|
#13
BRACKET,FRONT COVER
44154-11J00-000
|
|||
|
Unavailable |
|||
|
#14
SCREW (6X25)
09139-06192-000
|
|||
|
Unavailable |
|||
|
#15
CUSHION,FUEL TANK FRONT
44511-16G01-000
|
|||
|
Unavailable |
|||
|
#16
SPACER,FUEL TANK,FR
44512-16G00-000
|
|||
|
Unavailable |
|||
|
#17
BRACKET,FUEL TANK FRONT
44520-11J00-000
|
|||
|
Unavailable |
|||
|
#18
BOLT
01550-0620B-000
|
|||
|
Unavailable |
|||
|
#19
BRACKET,FRONT SIDE
44560-11J00-000
|
|||
|
Unavailable |
|||
|
#20
CUSHION,FRONT SIDE BRKT
44543-31J01-000
|
|||
|
Unavailable |
|||
|
#21
BOLT
01550-0612A-000
|
|||
|
Unavailable |
|||
|
#22
MOLDING,FUEL TANK
68241-11J01-000
|
|||
|
Unavailable |
|||
|
#23
BRACKET,FUEL TANK COVER RH
44130-28K00-000
|
|||
|
Unavailable |
|||
|
#24
CUSHION
09329-18001-000
|
|||
|
Unavailable |
|||
|
#25
BRACKET,FUEL TANK COVER LH
44140-28K00-000
|
|||
|
Unavailable |
|||
|
#26
CUSHION
09329-18001-000
|
|||
|
Unavailable |
|||
|
#27
BOLT
07120-0610A-000
|
|||
|
Unavailable |
|||
|
#28
FASTENER,COWLING (20X15X0.8)
44572-37H00-000
|
|||
|
Unavailable |
|||
|
#29
CUSHION (6X18X6)
09320-06504-000
|
|||
|
Unavailable |
|||
|
#30
VESSEL,FUEL TANK INNER
44121-28K01-000
|
|||
|
Unavailable |
|||
|
#31
HOSE,FUEL TANK DRAIN NO.1
44423-28K01-000
|
|||
|
Unavailable |
|||
|
#32
HOSE,FUEL TANK DRAIN NO.2
44423-11J31-000
|
|||
|
Unavailable |
|||
|
#33
3 WAY
09367-08005-000
|
|||
|
Unavailable |
|||
|
#34
HOSE,FUEL TANK BRTHR NO.1
44424-28K00-000
|
|||
|
Unavailable |
|||
|
#35
HOSE,FUEL TANK BRTHR NO.2
09352-50005-690
|
$9.38 | ||
|
Available to order. Add to View Price |
|||
|
#36
HOSE,FUEL TANK BRTHR NO.3
09352-50005-160
|
$3.74 | ||
|
Available to order. Add to View Price |
|||
|
#37
HOSE (13.5X16.5X10)
09352-13162-010
|
$1.97 | ||
|
Unavailable |
|||
|
#38
3 WAY
09367-06007-000
|
|||
|
Unavailable |
|||
|
#39
CLAMP (L:80)
09404-06030-000
|
|||
|
Unavailable |
|||
|
#40
CUSHION (15X27X2)
45516-01H00-000
|
|||
|
Unavailable |
|||
|
#41
CUSHION,FRAME COVER FRONT RR
47122-28K00-000
|
|||
|
Unavailable |
|||
