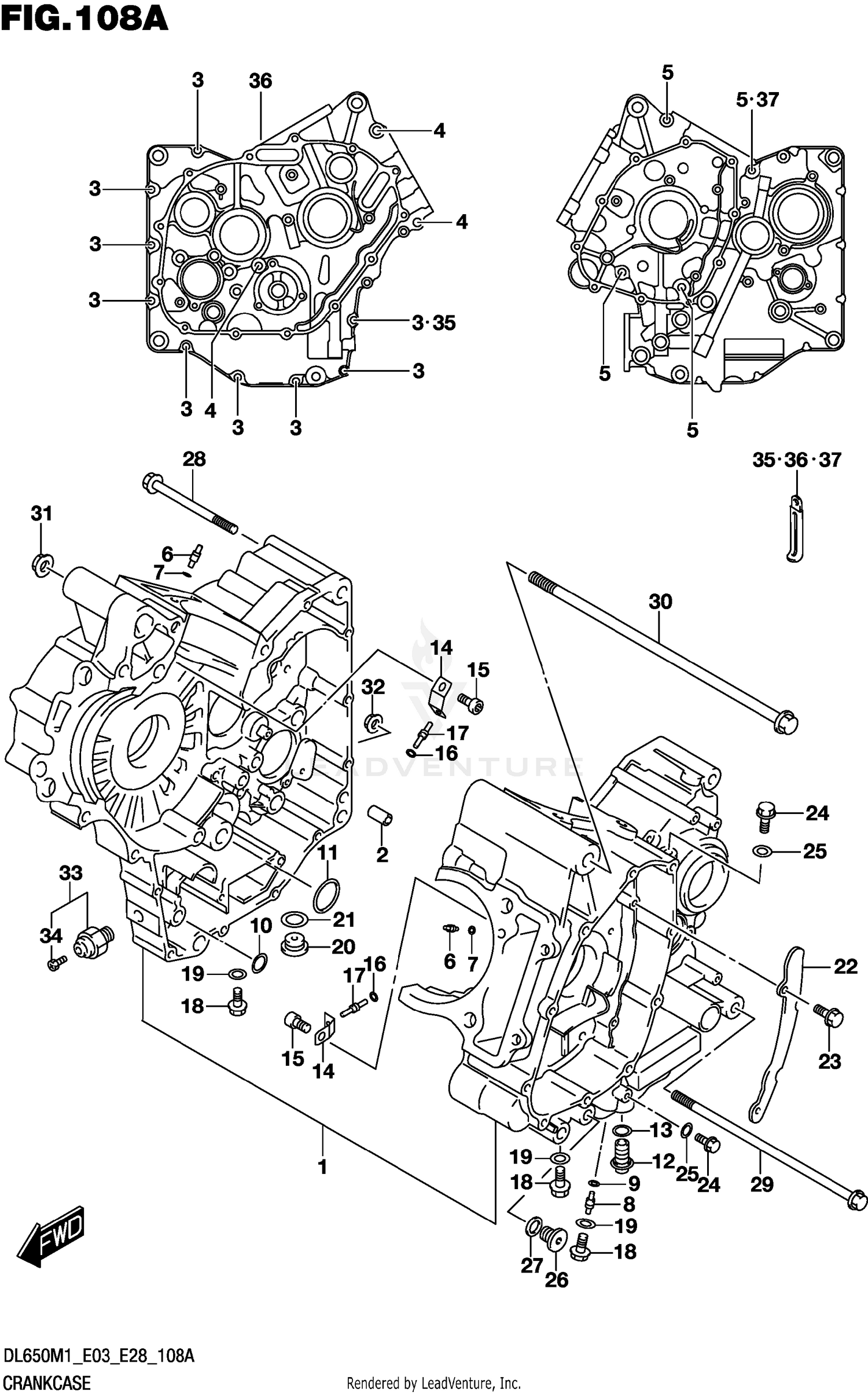

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE SET
11301-27871-000
|
|||
|
Unavailable |
|||
|
#2
.PIN (8.4X11X20)
09206-11007-000
|
|||
|
Unavailable |
|||
|
#3
BOLT
01547-0650A-000
|
|||
|
Unavailable |
|||
|
#4
.BOLT
07120-0855A-000
|
|||
|
Unavailable |
|||
|
#5
.BOLT
07120-0880A-000
|
|||
|
Unavailable |
|||
|
#6
JET AIR (#14)
09493-28010-000
|
|||
|
Unavailable |
|||
|
#7
O-RING (D:1.2,ID:4)
09280-04004-000
|
|||
|
Unavailable |
|||
|
#8
JET,OIL GALY (#18)
09493-36004-000
|
|||
|
Unavailable |
|||
|
#9
O-RING (D:1.2,ID:4)
09280-04004-000
|
|||
|
Unavailable |
|||
|
#10
O-RING (D:1.9,ID:12.5)
09280-13007-000
|
|||
|
Unavailable |
|||
|
#11
O-RING (D:2.4,ID:15.8)
09280-15007-000
|
|||
|
Unavailable |
|||
|
#12
PLUG (12X20)
09247-12011-000
|
|||
|
Unavailable |
|||
|
#13
GASKET (12.1X16.2X3.7)
09168-12002-000
|
|||
|
Unavailable |
|||
|
#14
PLATE,PISTON COOLING JET
16438-19F00-000
|
|||
|
Unavailable |
|||
|
#15
BOLT (6X12)
09106-06075-000
|
|||
|
Unavailable |
|||
|
#16
JET (#130)
09493-26007-000
|
|||
|
Unavailable |
|||
|
#17
BOLT (8X12)
01550-0812A-000
|
|||
|
Unavailable |
|||
|
#18
GASKET (12.1X16.2X3.7)
09168-12002-000
|
|||
|
Unavailable |
|||
|
#19
GASKET (8.2X14X1)
09168-08016-000
|
|||
|
Unavailable |
|||
|
#20
PLUG (16X8)
09248-16012-000
|
|||
|
Unavailable |
|||
|
#21
GASKET (16X22X2)
09168-16002-000
|
|||
|
Unavailable |
|||
|
#22
PLATE,OIL SEPARATOR
11323-19F00-000
|
|||
|
Unavailable |
|||
|
#23
BOLT
01547-0612A-000
|
|||
|
Unavailable |
|||
|
#24
BOLT
01547-0610A-000
|
|||
|
Unavailable |
|||
|
#25
GASKET (5.8X13X1.2)
09168-06023-000
|
|||
|
Unavailable |
|||
|
#26
PLUG (12X10)
09247-12006-000
|
|||
|
Unavailable |
|||
|
#27
GASKET (12X17X1)
09168-12017-000
|
|||
|
Unavailable |
|||
|
#28
BOLT (10X225)
09103-10205-000
|
|||
|
Unavailable |
|||
|
#29
BOLT (10X275)
09103-10347-000
|
|||
|
Unavailable |
|||
|
#30
BOLT (12X310)
09103-12054-000
|
|||
|
Unavailable |
|||
|
#31
NUT
09159-12056-000
|
|||
|
Unavailable |
|||
|
#32
NUT
08319-3110A-000
|
|||
|
Unavailable |
|||
|
#33
SWITCH ASSY,OIL PRESSURE
37820-33D10-000
|
|||
|
Unavailable |
|||
|
#34
.BOLT,OIL PRESSURE SWITCH
37822-33D00-000
|
|||
|
Unavailable |
|||
|
#35
CLAMP (L:45)
09404-06429-000
|
|||
|
Unavailable |
|||
|
#36
CLAMP (L:80)
09404-06030-000
|
|||
|
Unavailable |
|||
|
#37
CLAMP (L:80)
09404-08422-000
|
|||
|
Unavailable |
|||
