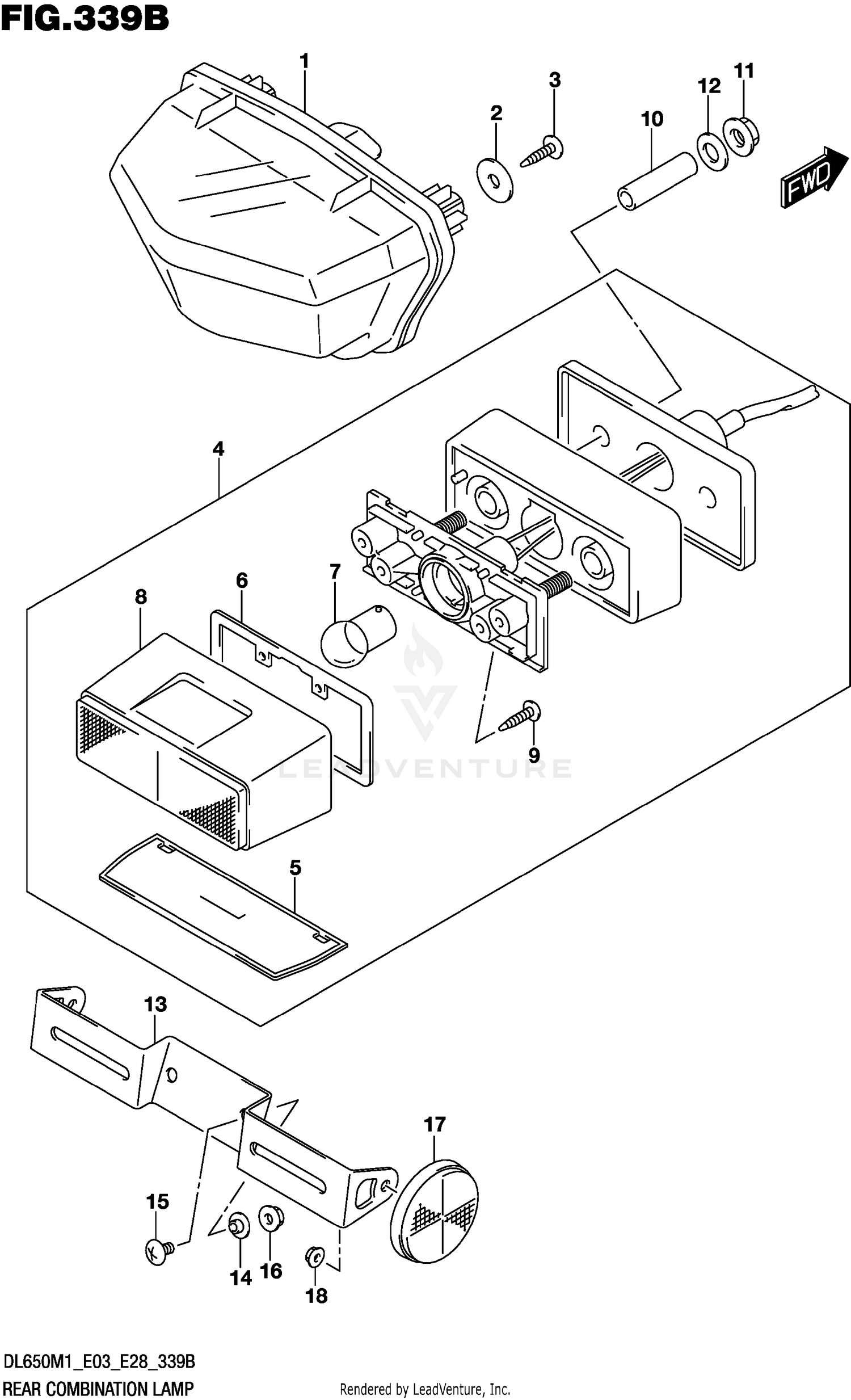

Rear Combination Lamp Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LAMP ASSY,RR COMB
35710-31J01-000
|
|||
|
Unavailable |
|||
|
#2
WASHER (5.5X20X1.2)
09160-05501-000
|
|||
|
Unavailable |
|||
|
#3
SCREW
03541-0516A-000
|
|||
|
Unavailable |
|||
|
#4
LAMP ASSY,LICENSE
35910-41GC2-000
|
|||
|
Unavailable |
|||
|
#5
.LENS,LICENSE
35912-41G01-000
|
|||
|
Unavailable |
|||
|
#6
.GASKET
35913-41G00-000
|
|||
|
Unavailable |
|||
|
#7
.BULB (12V5W)
09471-12140-000
|
|||
|
Unavailable |
|||
|
#8
.COVER,LICENSE LAMP
35917-41G00-000
|
|||
|
Unavailable |
|||
|
#9
.SCREW
03211-0416A-000
|
|||
|
Unavailable |
|||
|
#10
SPACER (6.5X9X33.3)
09180-06278-000
|
|||
|
Unavailable |
|||
|
#11
NUT (6X12)
08316-1006A-000
|
|||
|
Unavailable |
|||
|
#12
WASHER (6.5X20X1.2)
09160-06077-000
|
|||
|
Unavailable |
|||
|
#13
BRACKET,LICENSE PLATE
35927-14J30-000
|
|||
|
Unavailable |
|||
|
#14
WASHER
09169-06071-000
|
|||
|
Unavailable |
|||
|
#15
.SCREW
02142-0616A-000
|
|||
|
Unavailable |
|||
|
#16
NUT (6X12)
08316-1006A-000
|
|||
|
Unavailable |
|||
|
#17
REFLECTOR ASSY,REAR SIDE
35970-13K00-000
|
|||
|
Unavailable |
|||
|
#18
NUT
08316-1005A-000
|
|||
|
Unavailable |
|||
