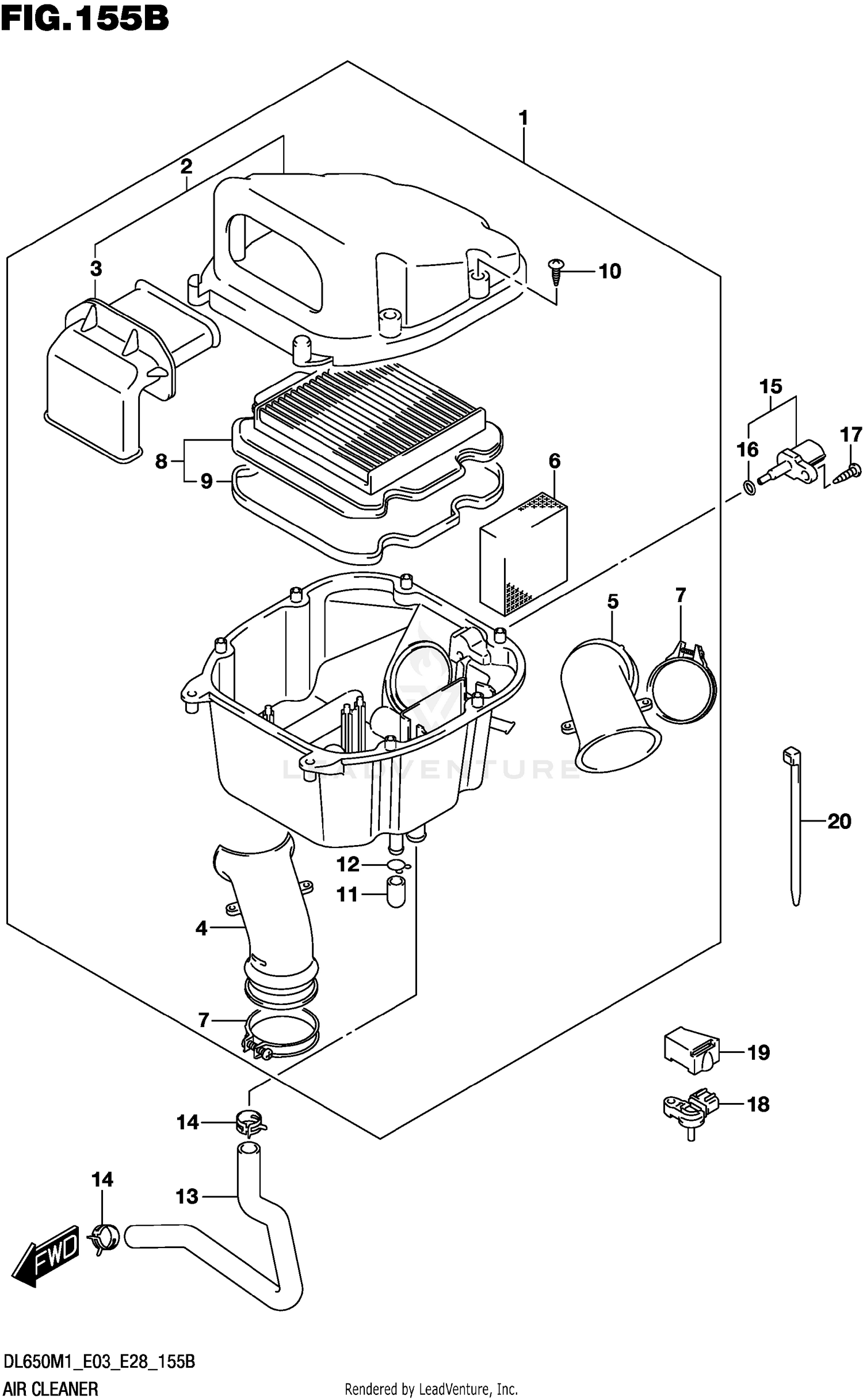

Air Cleaner Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLEANER ASSY,AIR
13700-11J02-000
|
|||
|
Unavailable |
|||
|
#2
.CAP,AIR CLEANER
13740-11J01-000
|
|||
|
Unavailable |
|||
|
#3
..TUBE,INLET
13891-27G01-000
|
|||
|
Unavailable |
|||
|
#4
.TUBE,OUTLET A
13881-27G11-000
|
|||
|
Unavailable |
|||
|
#5
.TUBE,OUTLET B
13882-27G11-000
|
|||
|
Unavailable |
|||
|
#6
.FILTER,BREATHER
13788-11J00-000
|
|||
|
Unavailable |
|||
|
#7
.CLAMP,OUTLET TUBE
13826-44H01-000
|
|||
|
Unavailable |
|||
|
#8
.FILTER ASSY
13780-27G10-000
|
|||
|
Unavailable |
|||
|
#9
..GASKET,AIR CLEANER
13746-06G00-000
|
|||
|
Unavailable |
|||
|
#10
.SCREW
03141-0516A-000
|
|||
|
Unavailable |
|||
|
#11
.PLUG
13878-10G01-000
|
|||
|
Unavailable |
|||
|
#12
.CLIP
09401-14301-000
|
|||
|
Unavailable |
|||
|
#13
TUBE,BREATHER
13850-11J00-000
|
|||
|
Unavailable |
|||
|
#14
CLIP
09401-20405-000
|
|||
|
Unavailable |
|||
|
#15
SENSOR,AIR TEMP
13650-41F10-000
|
|||
|
Unavailable |
|||
|
#16
O RING
13655-41F10-000
|
|||
|
Unavailable |
|||
|
#17
SCREW
03511-0516A-000
|
|||
|
Unavailable |
|||
|
#18
SENSOR,AIR PRESSURE
18590-18K00-000
|
|||
|
Unavailable |
|||
|
#19
HOLDER,SENSOR
18595-04K01-000
|
|||
|
Unavailable |
|||
|
#20
CLAMP (L:145)
09407-14407-000
|
|||
|
Unavailable |
|||
