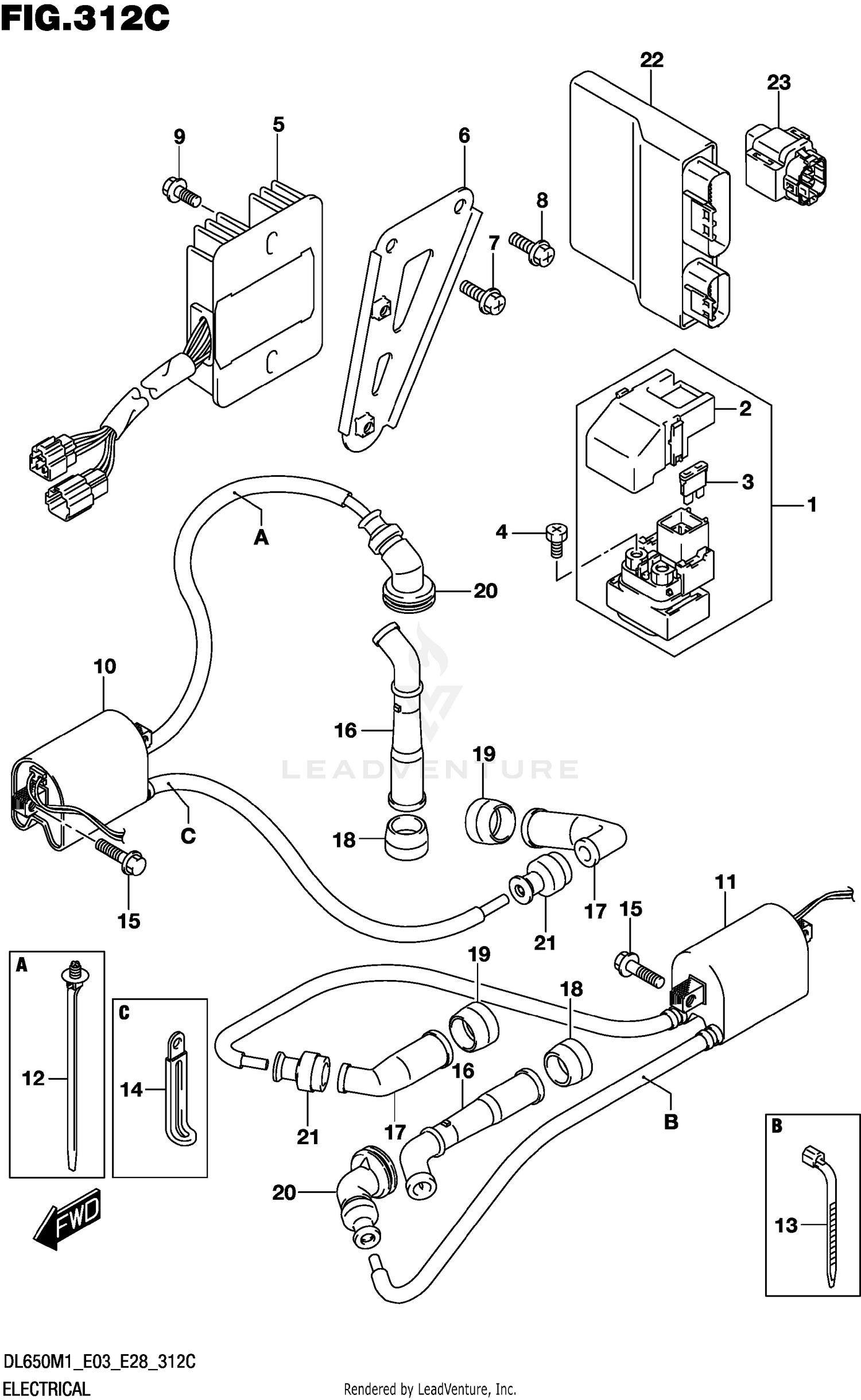

Electrical (e03,e28) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RELAY ASSY,STARTING MOTOR
31800-06G01-000
|
|||
|
Unavailable |
|||
|
#2
.COVER
31861-47E00-000
|
|||
|
Unavailable |
|||
|
#3
.FUSE (30A)
09481-30101-000
|
|||
|
Unavailable |
|||
|
#4
SCREW (6X8)
09128-06013-000
|
|||
|
Unavailable |
|||
|
#5
RECTIFIER ASSY
32800-47H00-000
|
|||
|
Unavailable |
|||
|
#6
BRACKET,RECT FTG
32830-11J00-000
|
|||
|
Unavailable |
|||
|
#7
SCREW
02162-0616A-000
|
|||
|
Unavailable |
|||
|
#8
SCREW
02162-0616A-000
|
|||
|
Unavailable |
|||
|
#9
SCREW
02162-0610A-000
|
|||
|
Unavailable |
|||
|
#10
COIL ASSY,IGNITION
33410-27G02-000
|
|||
|
Unavailable |
|||
|
#11
COIL ASSY,IGNITION
33420-27G03-000
|
|||
|
Unavailable |
|||
|
#12
CLAMP (L:154)
09407-17403-000
|
|||
|
Unavailable |
|||
|
#13
CLAMP (L:165)
09407-18402-000
|
|||
|
Unavailable |
|||
|
#14
CLAMP (L:45)
09404-06429-000
|
|||
|
Unavailable |
|||
|
#15
BOLT
01547-0625A-000
|
|||
|
Unavailable |
|||
|
#16
CAP ASSY,SPARK PLUG
33510-17G00-000
|
|||
|
Unavailable |
|||
|
#17
CAP ASSY,SPARK PLUG
33510-20E00-000
|
|||
|
Unavailable |
|||
|
#18
SEAL,SPARK PLUG
33541-23E10-000
|
|||
|
Unavailable |
|||
|
#19
SEAL,SPARK PLUG
33541-47D00-000
|
|||
|
Unavailable |
|||
|
#20
SEAL,HIGH TENSION CORD
33542-17G01-000
|
|||
|
Unavailable |
|||
|
#21
SEAL,HIGH TENSION CORD
33542-38B00-000
|
|||
|
Unavailable |
|||
|
#22
CONTROL UNIT,FI
32920-28K52-000
|
|||
|
Unavailable |
|||
|
#23
SENSOR ASSY,FUEL CUT
33960-27G00-000
|
|||
|
Unavailable |
|||
