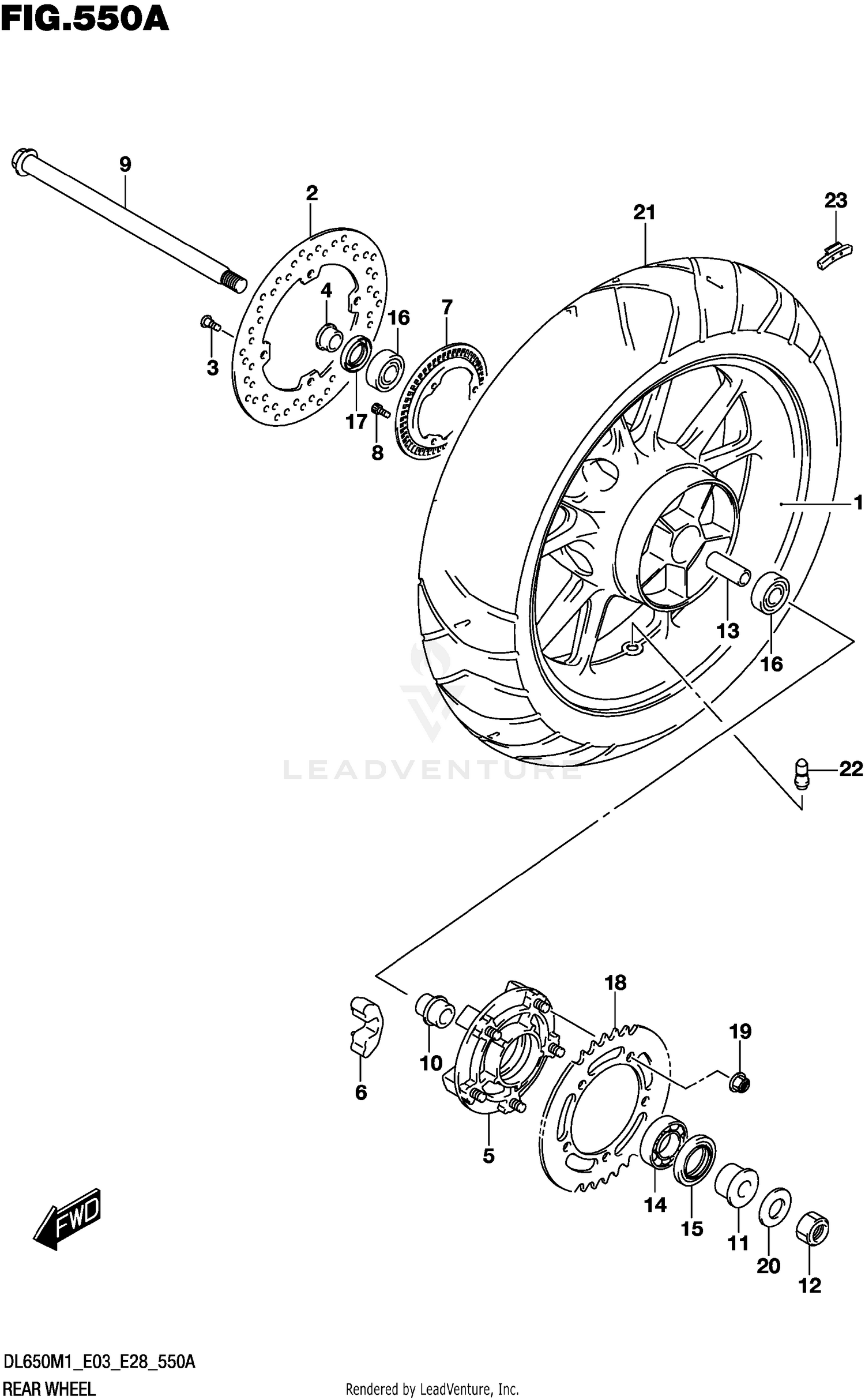

Rear Wheel (dl650a) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WHEEL,REAR (17M/CXMT4.00,BLAC
64111-28K00-019
|
$656.45 | ||
|
Available to order. Add to View Price |
|||
|
#2
DISC,RR BRAKE
69211-06G10-000
|
|||
|
Unavailable |
|||
|
#3
BOLT (8X21)
09106-08160-000
|
|||
|
Unavailable |
|||
|
#4
SPACER,REAR AXLE RH
64741-10F00-000
|
|||
|
Unavailable |
|||
|
#5
DRUM,REAR SPROCKET
64610-35F40-000
|
|||
|
Unavailable |
|||
|
#6
ABSORBER,REAR HUB SHOCK
64651-35F10-000
|
|||
|
Unavailable |
|||
|
#7
RING,SPEED SENSOR (50T)
54162-28K00-000
|
|||
|
Unavailable |
|||
|
#8
BOLT
07130-0512A-000
|
|||
|
Unavailable |
|||
|
#9
AXLE,REAR
64711-03F00-000
|
|||
|
Unavailable |
|||
|
#10
RETAINER,REAR SPROCKET DRUM
64733-06G00-000
|
|||
|
Unavailable |
|||
|
#11
SPACER,REAR AXLE LH
64751-27G00-000
|
|||
|
Unavailable |
|||
|
#12
NUT
09159-18007-000
|
|||
|
Unavailable |
|||
|
#13
SPACER (20.8X27.2X124)
09180-20112-000
|
|||
|
Unavailable |
|||
|
#14
BEARING,RR SPROCKET DRUM (32X
09262-32024-000
|
|||
|
Unavailable |
|||
|
#15
OIL SEAL (39X65X7)
09285-39001-000
|
|||
|
Unavailable |
|||
|
#16
BEARING,REAR WHEEL HUB
08123-6204B-000
|
|||
|
Unavailable |
|||
|
#17
SEAL,REAR HUB,R (27X47X7)
09285-28004-000
|
|||
|
Unavailable |
|||
|
#18
SPROCKET,REAR (47T-525)
64511-27G00-000
|
|||
|
Unavailable |
|||
|
#19
NUT
08319-3110A-000
|
|||
|
Unavailable |
|||
|
#20
WASHER (19X32X3.2)
09160-19025-000
|
|||
|
Unavailable |
|||
|
#21
TIRE,REAR (BATTLAX ADVENTURE
65110-28K00-000
|
|||
|
Unavailable |
|||
|
#22
VALVE ASSY,WHEEL RIM (TR412)
43130-24A00-000
|
|||
|
Unavailable |
|||
|
#23-1
BALANCER,WHEEL NO.1 (10G)
55411-22H00-000
|
|||
|
Unavailable |
|||
|
#23-2
BALANCER,WHEEL NO.2 (20G)
55412-22H00-000
|
|||
|
Unavailable |
|||
|
#23-3
BALANCER,WHEEL NO.3 (30G)
55413-22H00-000
|
|||
|
Unavailable |
|||
