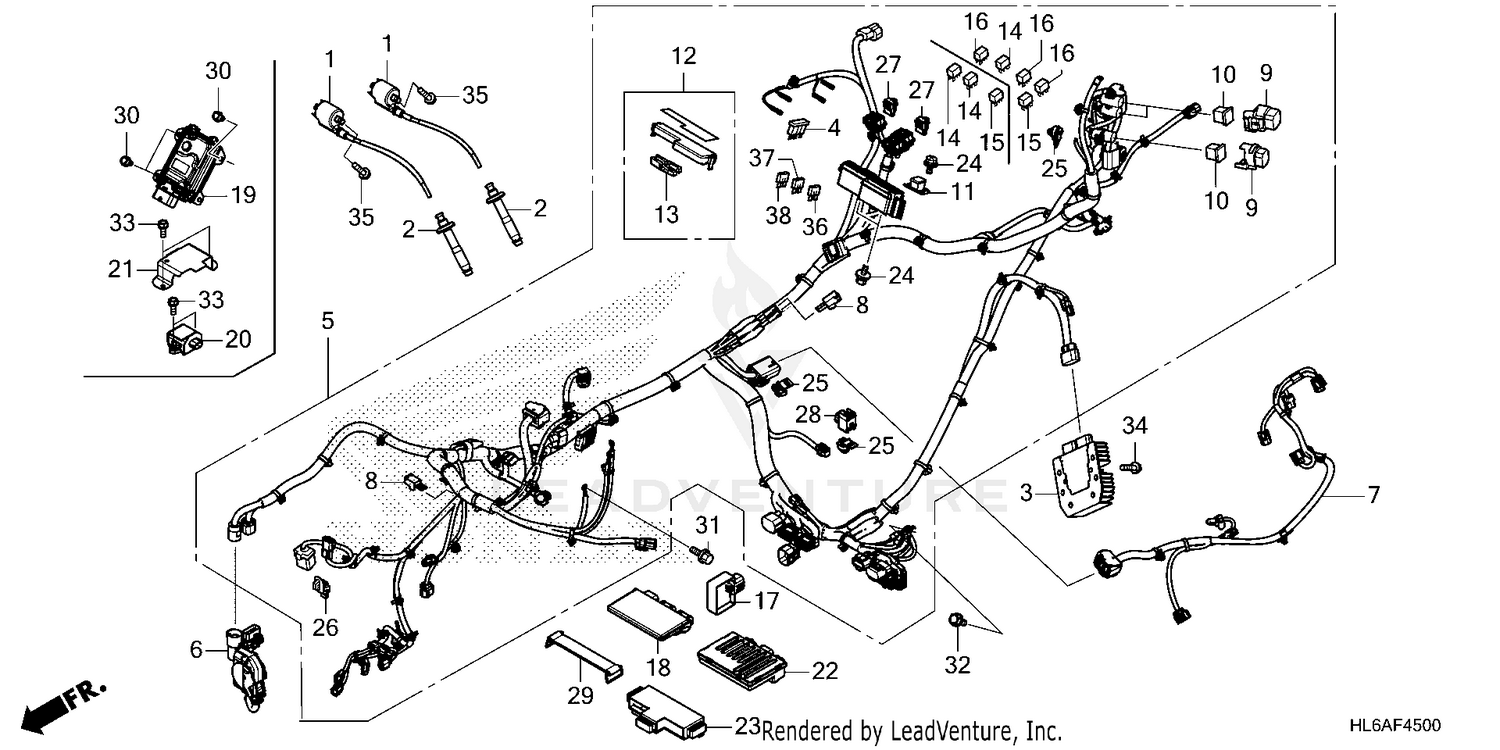

Wire Harness Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COIL, IGNITION
30510-HL6-A01
|
$85.29 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP ASSY., NOISE SUPPRESSOR
30700-HL4-A01
|
$61.55 | ||
|
Available to order. Add to View Price |
|||
|
#3
RECTIFIER ASSY., REGULATOR
31600-HL6-A01
|
$159.36 | ||
|
Available to order. Add to View Price |
|||
|
#4
DIODE ASSY., THREE WAY (SUMITOMO)
31730-MAS-601
|
$13.09 | ||
|
Available to order. Add to View Price |
|||
|
#5
WIRE HARNESS
32100-HL6-AH0
|
$1,003.25 | ||
|
Unavailable |
|||
|
#6
SUB-HARNESS
32101-HL6-AF0
|
$50.95 | ||
|
Unavailable |
|||
|
#7
SUB-HARNESS, ENGINE
32104-HL7-A20
|
$182.45 | ||
|
Available to order. Add to View Price |
|||
|
#8
CONNECTOR, DIODE (2P) (3A)
32146-S84-003
|
$18.03 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER ASSY., FUSE (40A)
38205-HP0-B11
|
$5.69 | ||
|
Available to order. Add to View Price |
|||
|
#10
FUSE, BLOCK (40A)
38211-SNA-A21
|
$5.43 | ||
|
Available to order. Add to View Price |
|||
|
#11
FUSE, BLOCK (50A)
38213-SM4-003
|
$16.05 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER SET, FUSE (NOT AVAILABLE)
38230-HL6-A40
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#13
PULLER, MINI FUSE (SUMITOMO)
38235-S04-003
|
$1.07 | ||
|
Available to order. Add to View Price |
|||
|
#14
RELAY, POWER (MICRO ISO 4P)
38501-MCS-G01
|
$13.04 | ||
|
Available to order. Add to View Price |
|||
|
#15
RELAY, POWER (MICRO ISO 5P)
38502-MCS-G01
|
$12.56 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
RELAY, POWER (MICRO ISO 4P)
38503-MCA-A61
|
$17.69 | ||
|
Available to order. Add to View Price |
|||
|
#17
CONTROL UNIT, FAN
38710-HL6-A01
|
$77.29 | ||
|
Available to order. Add to View Price |
|||
|
#18
PGM-FI UNIT
38770-HL6-AF2
|
$340.04 | ||
|
Unavailable |
|||
|
#19
ADS UNIT
39780-HL6-AH1
|
$418.55 | ||
|
Unavailable |
|||
|
#20
SENSOR SET
39900-HL6-AH0
|
$317.38 | ||
|
Unavailable |
|||
|
#21
COVER, INERTIAL MEASUREMENT UNIT
39965-HL7-A30
|
$24.64 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT (5X13)
90114-SG0-003
|
$6.62 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLIP, CONNECTOR (DARK BLUE)
91535-STK-003
|
$7.70 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLIP, CONNECTOR (DARK BROWN)
91535-TA0-003
|
$5.20 | ||
|
Available to order. Add to View Price |
|||
|
#27
CLIP, RELAY HOLDER (NATURAL)
91536-STK-003
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
|
#28
CONNECTOR, DUMMY (6P 025M)
91771-MKG-D81
|
$9.73 | ||
|
Available to order. Add to View Price |
|||
|
#29
BAND F, BATTERY (155MM)
95012-17001
|
$9.07 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
BOLT, FLANGE (6X10)
95701-06010-08
|
$1.68 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, FLANGE (6X12)
95701-06012-08
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, FLANGE (6X16)
95701-06016-08
|
$1.52 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
BOLT, FLANGE (6X16)
95701-06016-08
|
$1.52 | ||
|
Unavailable |
|||
|
#34
BOLT, FLANGE (6X22)
95701-06022-08
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT, FLANGE (6X25) BOLT, FLANGE (6X16)
95701-06025-08
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#36
FUSE, MINI (10A)
98200-41000
|
$1.38 | ||
|
Available to order. Add to View Price |
|||
|
#37
FUSE, MINI (15A) (Honda Code 4853438)
98200-41500
|
$1.27 | ||
|
Unavailable |
|||
|
#38
FUSE, MINI (30A) (Honda Code 5359666)
98200-43000
|
$1.83 | ||
|
Available to order. Add to View Price |
|||
