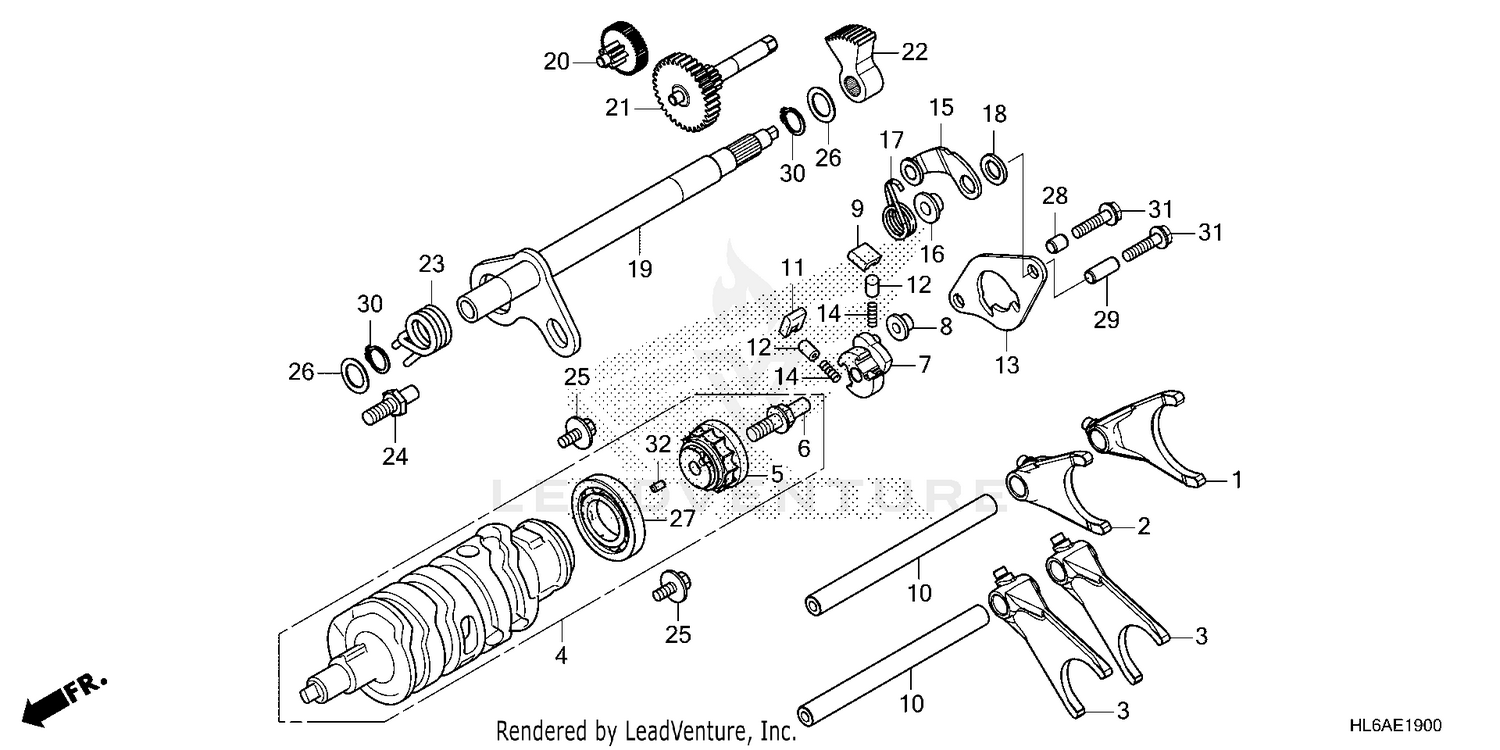

Gearshift Fork (transmission) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FORK M-OUTER
24211-HL4-AJ0
|
$76.80 | ||
|
Unavailable |
|||
|
#2
FORK M-INNER
24212-HL4-AJ0
|
$76.80 | ||
|
Unavailable |
|||
|
#3
FORK C, GEARSHIFT
24213-HL4-AJ0
|
$73.47 | ||
|
Unavailable |
|||
|
#4
DRUM ASSY., GEARSHIFT
24310-HL4-010
|
$168.42 | ||
|
Available to order. Add to View Price |
|||
|
#5
CENTER, SHIFT DRUM
24312-HL4-000
|
$36.93 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN, SHIFTER
24315-HL4-000
|
$10.38 | ||
|
Available to order. Add to View Price |
|||
|
#7
SHIFTER, DRUM
24321-KT8-030
|
$62.87 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR, SHIFTER
24322-MM4-000
|
$6.42 | ||
|
Available to order. Add to View Price |
|||
|
#9
PAWL A, RATCHET
24324-KA3-711
|
$16.02 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHAFT, GEARSHIFT FORK
24325-HL4-000
|
$21.65 | ||
|
Available to order. Add to View Price |
|||
|
#11
PAWL B, RATCHET
24325-KA3-711
|
$16.02 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLUNGER, PAWL
24326-KBH-901
|
$7.31 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLATE, CHANGE GUIDE
24328-HL4-000
|
$11.62 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING, PAWL PLUNGER
24329-KA3-740
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#15
STOPPER, GEARSHIFT DRUM
24430-HL4-000
|
$17.58 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR, SHIFT DRUM STOPPER PLATE
24434-HL4-000
|
$3.51 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING, SHIFT DRUM STOPPER
24435-HP5-600
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#18
COLLAR, DRUM STOPPER SIDE
24437-HL4-000
|
$6.84 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPINDLE, GEARSHIFT
24610-HL4-000
|
$93.11 | ||
|
Available to order. Add to View Price |
|||
|
#20
GEAR, SHIFT REDUCTION (45T/7T)
24615-MGE-D01
|
$77.00 | ||
|
Available to order. Add to View Price |
|||
|
#21
GEAR, SHIFT REDUCTION (32T/12T)
24616-HL4-000
|
$89.36 | ||
|
Available to order. Add to View Price |
|||
|
#22
GEAR, SHIFT REDUCTION (9T)
24617-HL4-003
|
$58.82 | ||
|
Available to order. Add to View Price |
|||
|
#23
SPRING, GEARSHIFT RETURN
24651-HL4-000
|
$7.58 | ||
|
Available to order. Add to View Price |
|||
|
#24
PIN, GEARSHIFT RETURN SPRING
24652-HA0-000
|
$10.31 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT-WASHER (6X12) (Honda Code 2551760)
90021-MM5-000
|
$6.42 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER (14.2X24)
90433-MEY-670
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#27
BEARING, SPECIAL BALL (6500)
91008-MFJ-D01
|
$18.93 | ||
|
Available to order. Add to View Price |
|||
|
#28
PIN A, DOWEL (8X10)
94301-08100
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
PIN, DOWEL (8X14) (Honda Code 0069310)
94301-08140
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#30
CIRCLIP (OUTER) (14MM)
94510-14000
|
$1.07 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, FLANGE (6X28)
95801-06028-00
|
$1.90 | ||
|
Available to order. Add to View Price |
|||
|
#32
ROLLER (4X8)
96220-40080
|
$0.58 | ||
|
Unavailable |
|||
