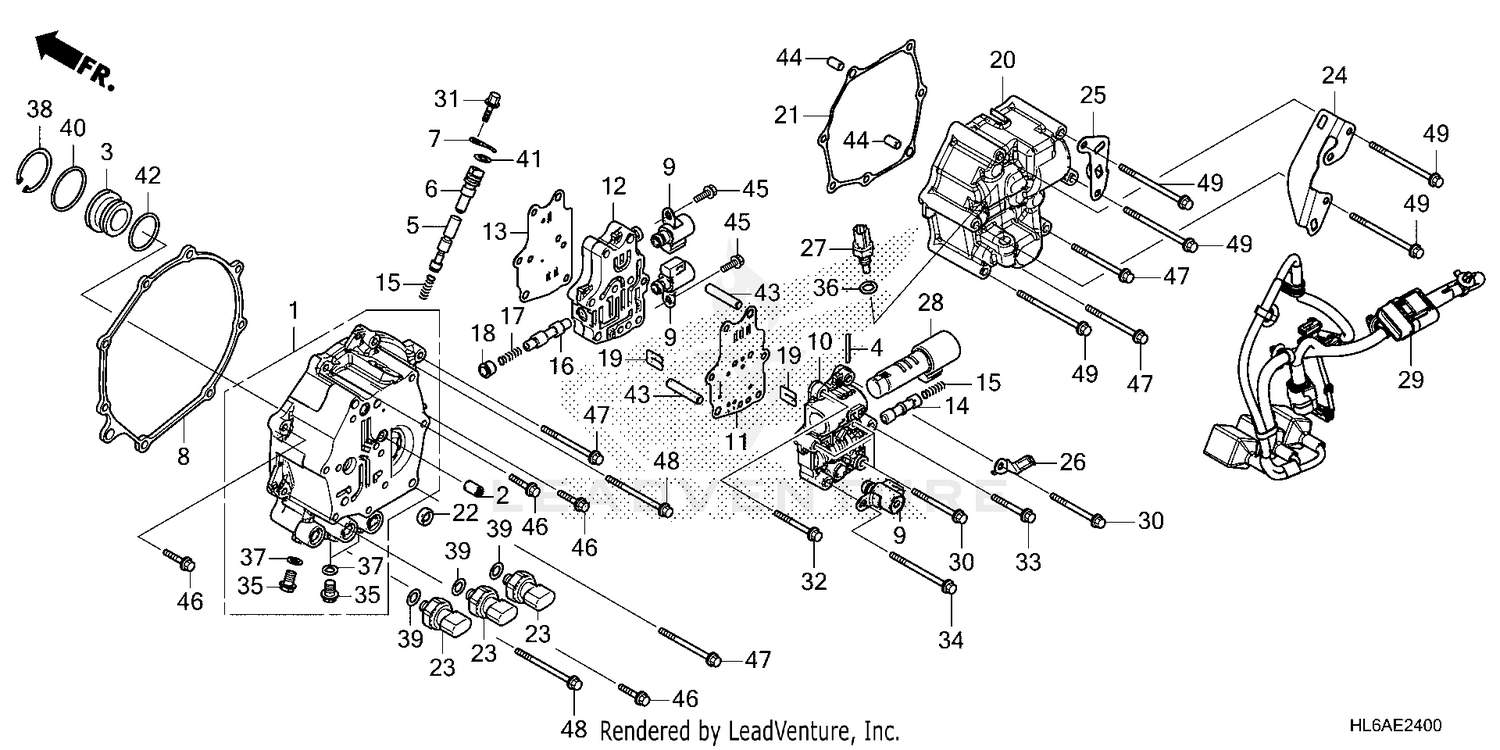

Solenoid Valve Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER COMP, CLUTCH
11330-HL4-AJ0
|
$335.38 | ||
|
Unavailable |
|||
|
#2
ORIFICE, CLUTCH COVER
11332-HL4-000
|
$7.35 | ||
|
Available to order. Add to View Price |
|||
|
#3
COLLAR, OIL GUIDE
11332-MGS-D20
|
$30.20 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN, SOLENOID STOPPER
11339-HL4-000
|
$5.16 | ||
|
Available to order. Add to View Price |
|||
|
#5
VALVE, EMERGENCY
11371-HL4-000
|
$5.04 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, EMERGENCY
11372-HL4-000
|
$7.89 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE, EMERGENCY STOPPER
11373-HL4-000
|
$1.96 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET, CLUTCH COVER
11397-HL4-003
|
$15.71 | ||
|
Available to order. Add to View Price |
|||
|
#9
VALVE, SHIFT
27100-HL4-003
|
$43.50 | ||
|
Available to order. Add to View Price |
|||
|
#10
BODY A, CLUTCH CONTROL
27110-HL4-000
|
$71.79 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLATE A, SEPARATE
27112-HL4-000
|
$6.84 | ||
|
Available to order. Add to View Price |
|||
|
#12
BODY B, CLUTCH CONTROL
27120-HL4-000
|
$77.29 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLATE B, SEPARATE
27122-HL4-000
|
$6.84 | ||
|
Available to order. Add to View Price |
|||
|
#14
VALVE, SHIFT
27211-HP7-A00
|
$7.93 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPRING, VALVE
27231-HP7-A00
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
|
#16
VALVE, HOLD
27241-HL4-000
|
$12.07 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING, HOLD VALVE
27251-HL4-000
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#18
SLEEVE, HOLD VALVE
27261-HL4-000
|
$8.58 | ||
|
Available to order. Add to View Price |
|||
|
#19
SEAT, VALVE SPRING
27263-PX3-000
|
$4.68 | ||
|
Available to order. Add to View Price |
|||
|
#20
COVER, SOLENOID
27501-HL4-000
|
$90.40 | ||
|
Available to order. Add to View Price |
|||
|
#21
GASKET, SOLENOID COVER
27505-HL4-003
|
$13.84 | ||
|
Available to order. Add to View Price |
|||
|
#22
FILTER, SECONDARY BODY
27750-PF4-000
|
$14.10 | ||
|
Available to order. Add to View Price |
|||
|
#22
FILTER, SECONDARY
27750-HL4-BA0
|
$4.96 | ||
|
Unavailable |
|||
|
#23
SENSOR ASSY., OIL PRESSURE
28660-RFH-013
|
$124.52 | ||
|
Available to order. Add to View Price |
|||
|
#24
STAY B, SOLENOID WIRE
32153-HL6-A00
|
$11.36 | ||
|
Available to order. Add to View Price |
|||
|
#25
STAY, SOLENOID WIRE
32157-HL6-A00
|
$9.00 | ||
|
Available to order. Add to View Price |
|||
|
#26
STAY, SOLENOID HARNESS (INNER)
32161-HL4-000
|
$4.27 | ||
|
Available to order. Add to View Price |
|||
|
#27
SENSOR ASSY., THERMOSTAT OIL (Honda Code 8192445)
37750-KPH-701
|
$61.02 | ||
|
Available to order. Add to View Price |
|||
|
#28
VALVE, LINEAR SOLENOID
38610-HL4-003
|
$131.18 | ||
|
Available to order. Add to View Price |
|||
|
#29
WIRE HARNESS, SOLENOID
38611-HL6-A00
|
$229.73 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, FLANGE (6X60)
90003-PG6-000
Superseded by 90003-PH3-000
|
$7.02 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, FLANGE (6X60)
90003-PH3-000
|
$7.02 | ||
|
Unavailable |
|||
|
#30
BOLT, FLANGE (6X60)
90003-HL4-BA0
|
$2.02 | ||
|
Unavailable |
|||
|
#31
BOLT, FLANGE (6X14)
90003-SNA-010
|
$3.93 | ||
|
Available to order. Add to View Price |
|||
|
#31
LONG BOLT FLANGE
90002-HL4-BA0
|
$1.80 | ||
|
Unavailable |
|||
|
#32
BOLT, FLANGE (6X50)
90004-PT0-000
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, FLANGE (6X50)
90004-HL4-BA0
|
$1.82 | ||
|
Unavailable |
|||
|
#33
BOLT, FLANGE (6X40)
90006-HL4-000
|
$3.24 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT, FLANGE (6X75)
90010-HL4-000
|
$3.64 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT, SEALING (8MM)
90024-612-000
|
$5.97 | ||
|
Available to order. Add to View Price |
|||
|
#36
WASHER, SEALING (10.2MM)
90443-MB0-000
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#37
WASHER (8MM)
90471-580-000
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#38
CIRCLIP (INNER) (40MM)
90604-RGC-000
|
$4.69 | ||
|
Available to order. Add to View Price |
|||
|
#38
CIRCLIP, IN (40)
90604-HL4-BA0
|
$2.11 | ||
|
Unavailable |
|||
|
#39
O-RING (13X1.5)
91301-MEH-003
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#40
O-RING (35X2.2)
91302-MGS-D20
|
$2.64 | ||
|
Available to order. Add to View Price |
|||
|
#41
O-RING (11X1.9) (NOK)
91301-671-671
Superseded by 91303-HA0-004
|
$2.23 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#41
O-RING (11X1.9) (ARAI)
91303-HA0-000
|
|||
|
Unavailable |
|||
|
#41
O-RING (11X1.9) (NOK)
91303-HA0-003
Superseded by 91303-HA0-004
|
$2.23 | ||
|
Unavailable |
|||
|
#41
O-RING (11X1.9) (NOK) O-RING (1.9X11)
91303-HA0-004
|
$2.23 | ||
|
Unavailable |
|||
|
#42
O-RING (29X2.4) (NOK)
91344-PC9-004
|
$4.42 | ||
|
Available to order. Add to View Price |
|||
|
#43
PIN, DOWEL (8X40)
91704-PF4-000
|
$6.92 | ||
|
Available to order. Add to View Price |
|||
|
#43
PIN, DOWEL (8X40)
91704-HL4-BA0
|
$2.47 | ||
|
Unavailable |
|||
|
#44
PIN, DOWEL (8X14) (Honda Code 0069310)
94301-08140
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#45
BOLT, FLANGE (6X14) (Honda Code 2410884)
95701-06014-00
|
$1.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#46
BOLT, FLANGE (6X28)
95701-06028-00
|
$1.90 | ||
|
Available to order. Add to View Price |
|||
|
#47
BOLT, FLANGE (6X65) (Honda Code 2552545)
95701-06065-00
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#48
BOLT, FLANGE (6X75)
95701-06075-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#49
BOLT, FLANGE (6X80)
95701-06080-00
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
