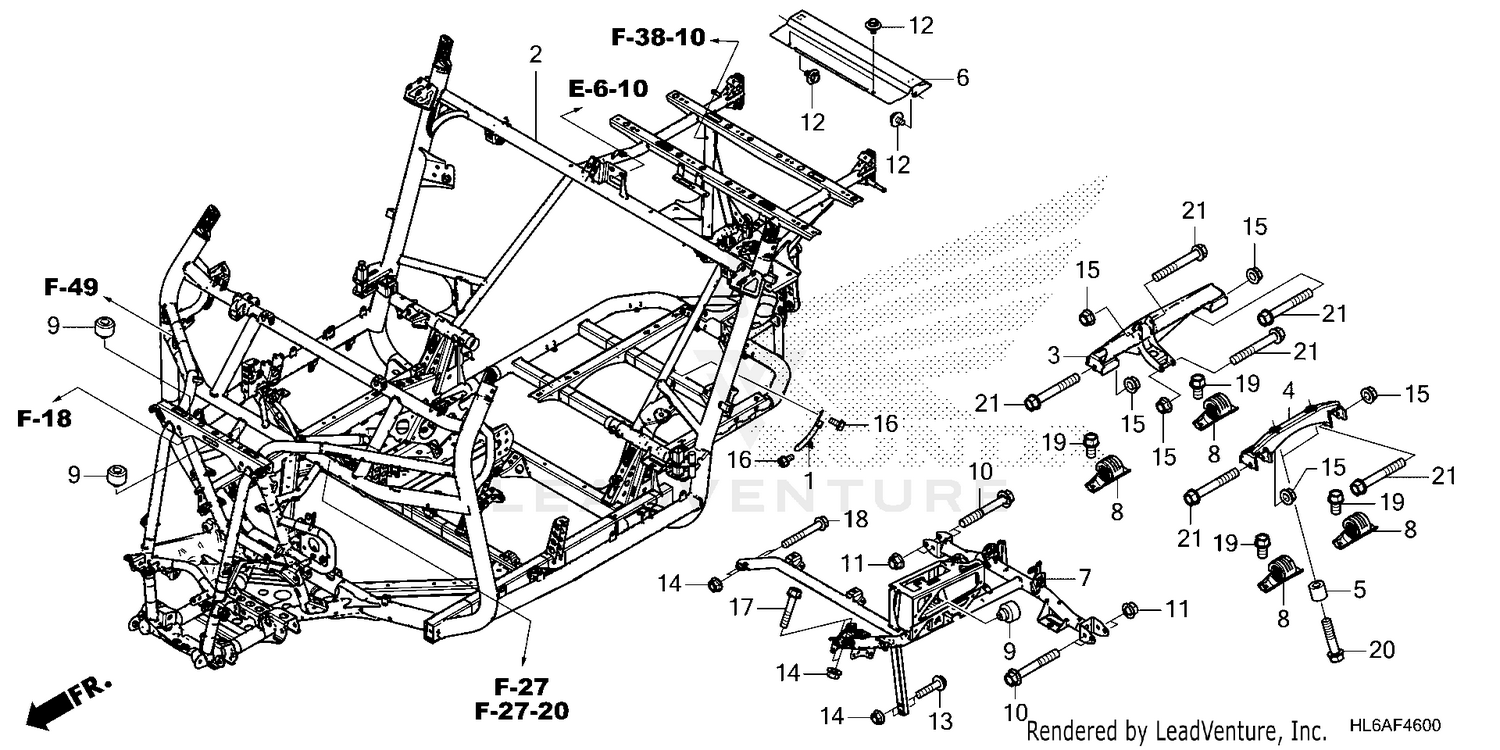

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CABLE, FRAME GROUND
32603-HL6-A00
|
$5.85 | ||
|
Available to order. Add to View Price |
|||
|
#2
FRAME *R386P*
50100-HL6-AF0ZA
|
$5,983.16 | ||
|
Unavailable |
|||
|
#2
FRAME *PB427M*
50100-HL6-AF0ZB
|
$5,725.84 | ||
|
Unavailable |
|||
|
#3
BRACKET, R. ENGINE HANGER
50310-HL6-A40
|
$147.24 | ||
|
Available to order. Add to View Price |
|||
|
#4
BRACKET, L. ENGINE HANGER
50320-HL6-A40
|
$65.36 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR (20X23)
50335-HL7-A20
|
$7.33 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER, RR. BED PLATE
50500-HL6-A00
|
$32.18 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIPE *R386P*
50600-HL6-AF0ZA
|
$772.71 | ||
|
Unavailable |
|||
|
#7
PIPE *PB427M*
50600-HL6-AF0ZB
|
$772.71 | ||
|
Unavailable |
|||
|
#8
RUBBER ASSY., ENGINE MOUNTING
50810-HL6-A01
|
$26.38 | ||
|
Available to order. Add to View Price |
|||
|
#9
RUBBER, SEAT SETTING
77206-GF0-000
|
$6.85 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE (10X70)
90165-S5A-000
|
$12.07 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, SELF-LOCK (10MM)
90305-HC0-770
|
$3.76 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT-WASHER (6X12)
93405-06012-08
|
$1.58 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT-WASHER (8X35)
93406-08035-08
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, FLANGE (8MM)
94050-08080
|
$0.98 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, FLANGE (10MM)
94050-10080
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE (6X12)
95701-06012-08
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (8X40)
95701-08040-08
|
$2.32 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (8X60)
95701-08060-08
|
$2.57 | ||
|
Unavailable |
|||
|
#19
BOLT, FLANGE (10X20)
95701-10020-08
|
$2.28 | ||
|
Unavailable |
|||
|
#20
BOLT, FLANGE (10X55)
95701-10055-08
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE (10X70)
95801-10070-08
|
$3.33 | ||
|
Unavailable |
|||
