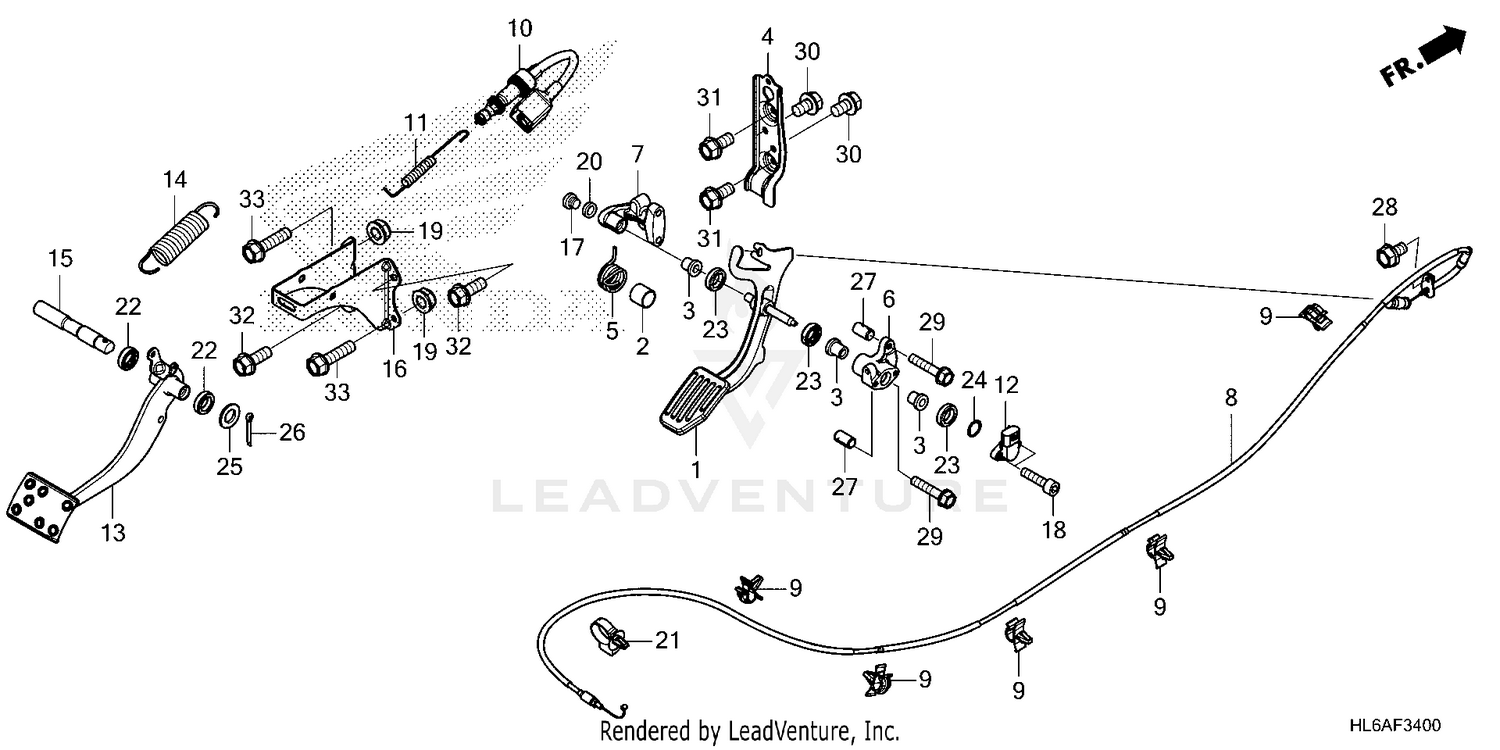

Pedal Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, ACCELERATOR
17810-HL7-A20
|
$30.22 | ||
|
Available to order. Add to View Price |
|||
|
#2
COLLAR, ACCELERATOR PEDAL
17811-HL1-A00
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#3
BUSH, FLANGE (10MM)
17813-HL6-A00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#4
STAY, ACCELERATOR PEDAL
17820-HL6-A00
|
$10.22 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, ACCELERATOR PEDAL
17830-HL4-A00
|
$12.07 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRACKET, R. PEDAL PIVOT
17850-HL6-A00
|
$71.54 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET, L. PEDAL PIVOT
17860-HL6-A00
|
$69.03 | ||
|
Available to order. Add to View Price |
|||
|
#8
CABLE, THROTTLE
17910-HL6-A01
|
$40.96 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLIP, WIRE HARNESS
32171-GJ1-003
|
$4.37 | ||
|
Available to order. Add to View Price |
|||
|
#10
SWITCH ASSY., STOP
35350-HL6-A01
|
$23.05 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING, STOP SWITCH
35357-HL6-A00
|
$1.69 | ||
|
Available to order. Add to View Price |
|||
|
#12
SENSOR ASSY., ANGLE
38800-HR3-A21
|
$31.84 | ||
|
Available to order. Add to View Price |
|||
|
#13
PEDAL, BRAKE
46510-HL6-A00
|
$47.20 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING, BRAKE PEDAL
46514-HL6-A00
|
$4.04 | ||
|
Available to order. Add to View Price |
|||
|
#15
SHAFT, BRAKE PIVOT
46550-HL3-A00
|
$22.15 | ||
|
Available to order. Add to View Price |
|||
|
#16
STAY, BRAKE PEDAL
46560-HL6-A00
|
$18.07 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, SEALING (12MM)
90007-ZG8-300
|
$9.24 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, SOCKET (5X20)
90116-HP5-600
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, FLANGE (8MM)
90309-KF0-003
Superseded by 90309-428-731
|
$4.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
NUT, FLANGE (M8X1.25) (SELF-LOCK)
90309-428-731
|
$4.20 | ||
|
Unavailable |
|||
|
#20
WASHER (12MM)
90545-KF0-000
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLAMP, HARNESS
90652-HC4-003
|
$7.47 | ||
|
Available to order. Add to View Price |
|||
|
#22
OIL SEAL (10X16X4.5)
91206-333-003
Superseded by 91259-VM0-000
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#22
OIL SEAL (10X16X4.5)
91259-VM0-000
|
$5.29 | ||
|
Unavailable |
|||
|
#23
OIL SEAL (10X16X5)
91206-ZG5-003
|
$4.12 | ||
|
Available to order. Add to View Price |
|||
|
#24
O-RING, ANGLE SENSOR
91308-HN0-A10
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, PLAIN (10MM)
94102-10800
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#26
PIN, SPLIT (3.0X18)
94201-30180
|
$1.08 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
PIN, DOWEL (8X14) (Honda Code 0069310)
94301-08140
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
BOLT, FLANGE (6X12)
95701-06012-08
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, FLANGE (6X30)
95701-06030-08
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, FLANGE (8X12)
95701-08012-08
|
$1.83 | ||
|
Unavailable |
|||
|
#31
BOLT, FLANGE (8X16)
95701-08016-08
|
$1.83 | ||
|
Unavailable |
|||
|
#32
BOLT, FLANGE (8X20)
95701-08020-08
|
$1.66 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, FLANGE (8X30)
95701-08030-08
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
