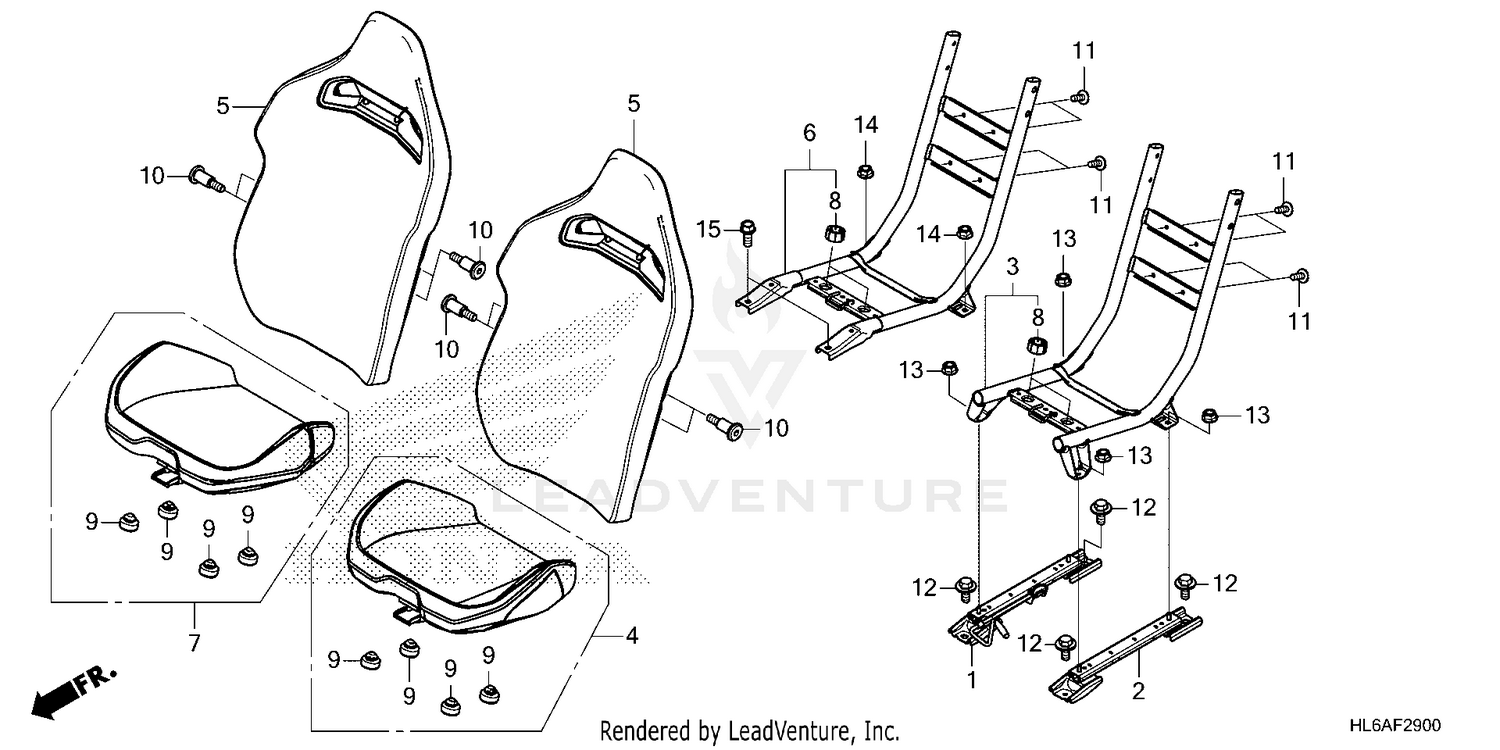

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SLIDER, R. SEAT
77110-HL6-A01
|
$93.24 | ||
|
Available to order. Add to View Price |
|||
|
#2
SLIDER, L. SEAT
77120-HL6-A01
|
$68.22 | ||
|
Available to order. Add to View Price |
|||
|
#3
FRAME, SEAT (DRIVER)
77130-HL6-A01
|
$247.35 | ||
|
Available to order. Add to View Price |
|||
|
#4
SEAT (LOWER) (TYPE6)
77140-HL6-AF1ZC
|
$284.87 | ||
|
Unavailable |
|||
|
#5
SEAT, BACK (TYPE6)
77150-HL6-AF1ZC
|
$377.98 | ||
|
Unavailable |
|||
|
#6
FRAME, SEAT (PASSENGER)
77160-HL6-A01
|
$252.05 | ||
|
Available to order. Add to View Price |
|||
|
#7
SEAT (LOWER) (TYPE6)
77170-HL6-AF1ZC
|
$315.13 | ||
|
Unavailable |
|||
|
#8
CUSHION, SEAT MOUNTING
77207-HA0-000
|
$8.96 | ||
|
Available to order. Add to View Price |
|||
|
#9
RUBBER B, SEAT STOPPER
77215-GC2-000
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, SPECIAL (8MM)
90102-HL3-A00
|
$1.02 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, PAN (6X16)
90118-HL5-A00
|
$0.91 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT-WASHER (8X20)
93404-08020-07
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT-WASHER (8X20)
93414-08020-07
Superseded by 93404-08020-07
|
$2.02 | ||
|
Unavailable |
|||
|
#13
NUT, FLANGE (8MM)
94050-08070
|
$1.71 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, FLANGE (8MM)
94050-08080
|
$0.98 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE (8X20)
95701-08020-08
|
$1.66 | ||
|
Available to order. Add to View Price |
|||
