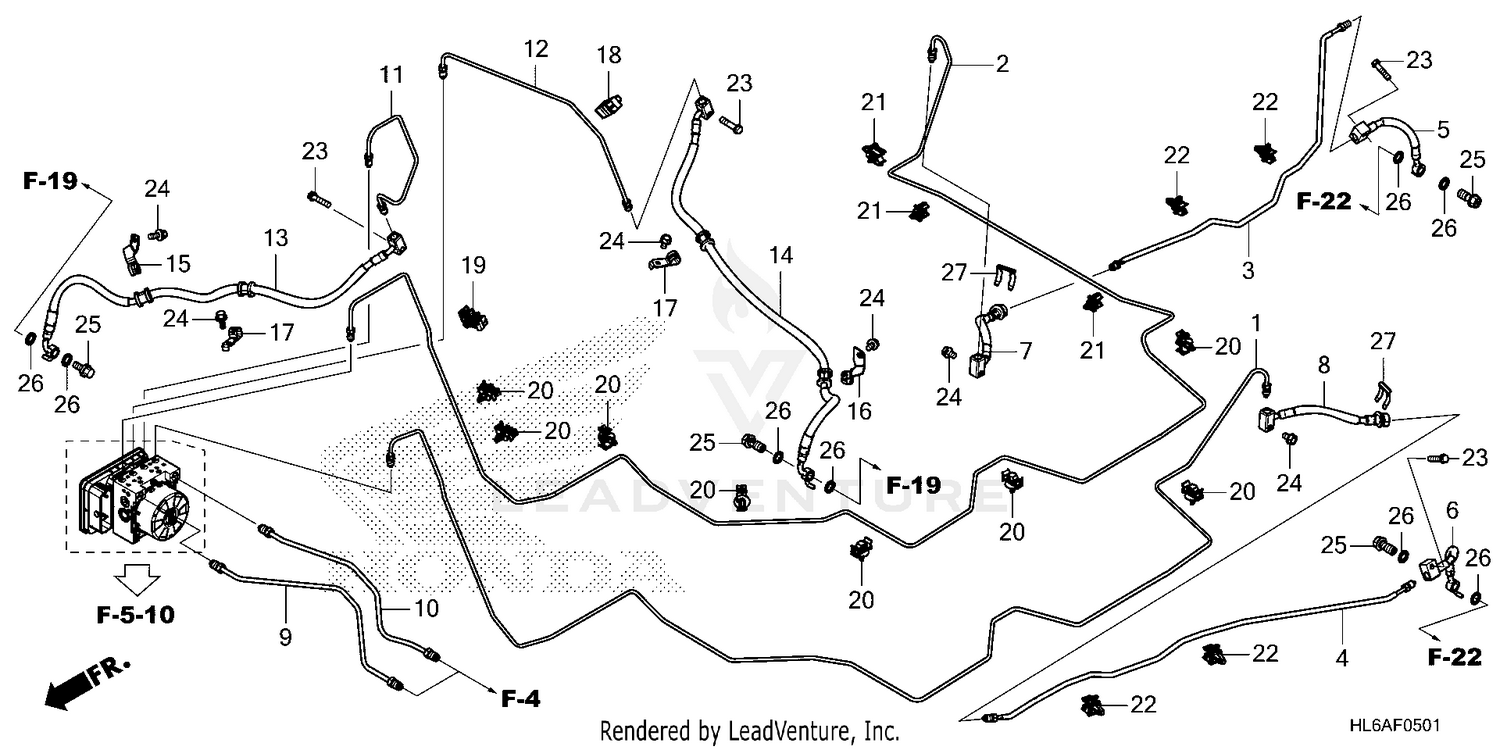

Brake Pipe@brake Hose (2) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIPE COMP, RR. L BRK
43124-HL6-AA0
|
$21.42 | ||
|
Unavailable |
|||
|
#2
PIPE COMP, RR. R BRK
43125-HL6-AA0
|
$24.80 | ||
|
Unavailable |
|||
|
#3
PIPE, R. RR. ARM BRAKE
43126-HL6-A00
|
$13.16 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIPE, L. RR. ARM BRAKE
43127-HL6-A00
|
$13.16 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOSE A, R. RR. BRAKE
43133-HL6-A01
|
$23.07 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOSE A, L. RR. BRAKE
43134-HL6-A01
|
$25.31 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOSE B, R. RR. BRAKE
43135-HL6-A01
|
$24.84 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOSE B, L. RR. BRAKE
43136-HL6-A01
|
$24.15 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIPE COMP, A M/C
45124-HL6-AA0
|
$6.49 | ||
|
Unavailable |
|||
|
#10
PIPE COMP, B M/C
45125-HL6-AA0
|
$7.33 | ||
|
Unavailable |
|||
|
#11
PIPE COMP, FR.
45126-HL6-AA0
|
$7.11 | ||
|
Unavailable |
|||
|
#12
PIPE COMP, FR.
45127-HL6-AA0
|
$6.78 | ||
|
Unavailable |
|||
|
#13
HOSE, R. FR. BRAKE
45131-HL6-A02
|
$45.55 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOSE, L. FR. BRAKE
45132-HL6-A02
|
$45.55 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLAMP B, R. FR. BRAKE HOSE
45463-HL6-A00
|
$3.04 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLAMP B, L. FR. BRAKE HOSE
45464-HL6-A00
|
$3.04 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLAMP, BRAKE HOSE
45465-HL6-A00
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLIP, BRAKE PIPE
46393-HL4-F41
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLIP, BRAKE PIPE
46393-TR0-A01
|
$1.23 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLIP, BRAKE PIPE
46394-HL4-F41
|
$3.71 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLIP A
46394-S04-003
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLIP, BRAKE PIPE
46394-SN7-003
|
$11.57 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE (6X25)
90106-MEJ-D00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE (6X10)
90107-HC5-000
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, OIL (10X22) (SAGA)
90145-MS9-612
|
$9.20 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, OIL BOLT
90545-300-000
|
$5.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
CLIP, BRAKE HOSE
90651-538-000
|
$8.50 | ||
|
Available to order. Add to View Price |
|||
