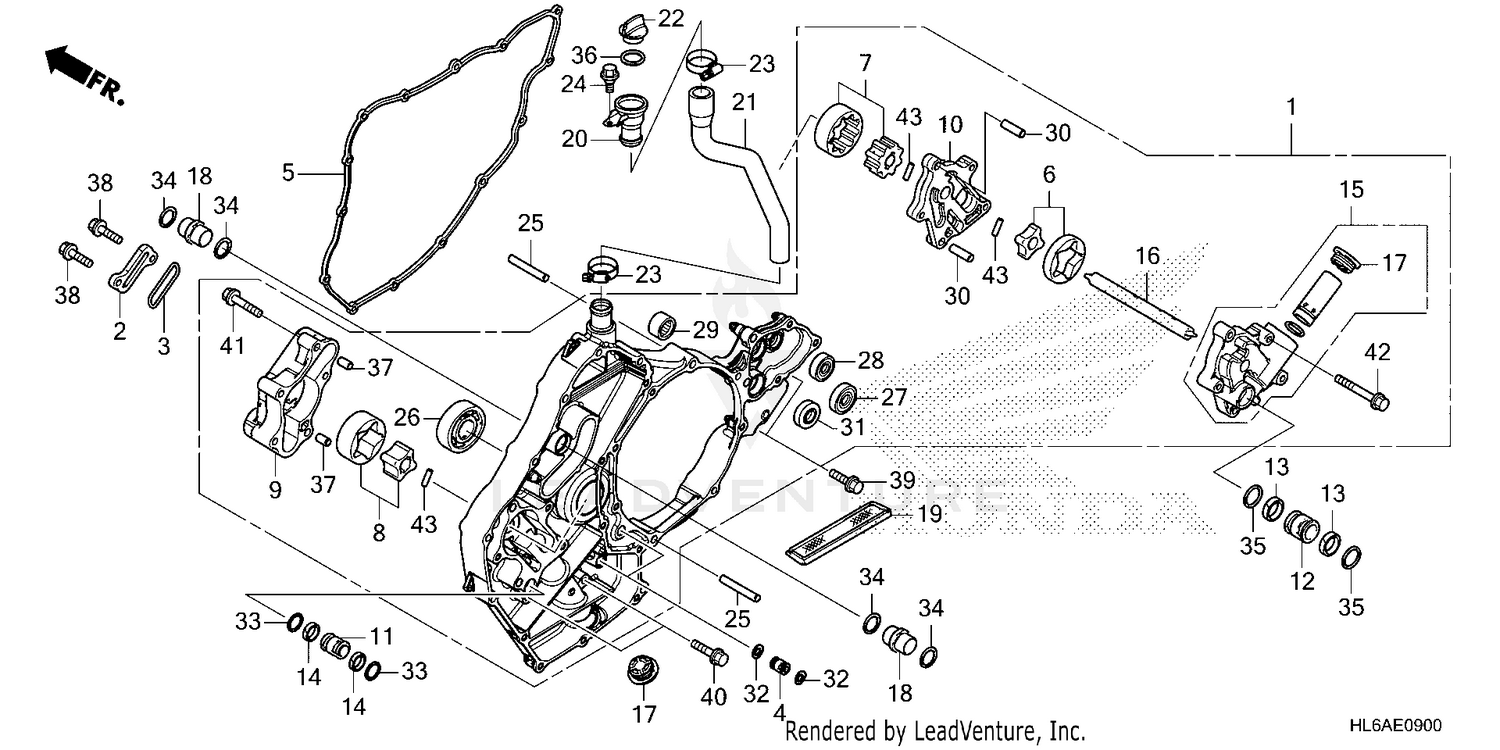

Oil Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPACER ASSY., RR. COVER
11310-HL6-A00
|
$583.66 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, SPACER
11322-HL4-000
|
$9.69 | ||
|
Available to order. Add to View Price |
|||
|
#3
O-RING, SPACER COVER
11323-HL4-000
|
$3.07 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN, OIL GUIDE (10MM)
11334-HN8-010
|
$11.29 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET, RR. SPACER COVER
11394-HL4-003
|
$21.89 | ||
|
Available to order. Add to View Price |
|||
|
#6
ROTOR SET A, OIL PUMP
15020-HL4-000
|
$51.02 | ||
|
Available to order. Add to View Price |
|||
|
#7
ROTOR SET B, OIL PUMP
15030-HL4-003
|
$54.84 | ||
|
Available to order. Add to View Price |
|||
|
#8
ROTOR SET C, OIL PUMP
15040-HL4-000
|
$57.45 | ||
|
Available to order. Add to View Price |
|||
|
#9
BODY, OIL PUMP
15101-HL4-000
|
$60.95 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLATE, OIL PUMP
15102-HL4-000
|
$29.04 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLATE, OIL PUMP
15102-HL4-010
|
$23.00 | ||
|
Unavailable |
|||
|
#11
JOINT, LINE (DCT)
15104-HL4-000
|
$7.44 | ||
|
Available to order. Add to View Price |
|||
|
#12
JOINT, FEED LINE
15105-HL4-000
|
$10.05 | ||
|
Available to order. Add to View Price |
|||
|
#13
RING, BACK-UP (16X20)
15107-HL4-000
|
$4.27 | ||
|
Available to order. Add to View Price |
|||
|
#14
RING, BACK-UP (12X15)
15108-HL4-000
|
$4.07 | ||
|
Available to order. Add to View Price |
|||
|
#15
COVER, OIL PUMP
15110-HL4-000
|
$85.47 | ||
|
Available to order. Add to View Price |
|||
|
#16
SHAFT, OIL PUMP
15111-HL4-000
|
$45.18 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, SEALING (24MM)
15234-MGS-D20
|
$7.00 | ||
|
Available to order. Add to View Price |
|||
|
#18
JOINT, SPECIAL (Honda Code 6441620)
15235-HN2-000
|
$7.24 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREEN, OIL FILTER
15421-HL4-000
|
$15.33 | ||
|
Available to order. Add to View Price |
|||
|
#20
NECK, OIL FILLER
15622-HL6-A00
|
$2.18 | ||
|
Available to order. Add to View Price |
|||
|
#21
TUBE, FILLER NECK
15623-HL6-A00
|
$11.20 | ||
|
Available to order. Add to View Price |
|||
|
#22
CAP, OIL TANK
15651-HN2-000
|
$7.31 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLAMP, HOSE (22-29MM)
19517-ML7-691
|
$14.09 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE (6MM)
90111-162-000
|
$3.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
PIN, DOWEL (8X50)
90701-HN2-000
|
$7.71 | ||
|
Available to order. Add to View Price |
|||
|
#26
BEARING, RADIAL BALL (6304)
91001-GF6-004
|
$24.80 | ||
|
Available to order. Add to View Price |
|||
|
#27
BEARING, RADIAL BALL (607ZZ)
91026-MGS-D21
|
$11.16 | ||
|
Available to order. Add to View Price |
|||
|
#28
BEARING, RADIAL BALL (696ZZ)
91027-MGS-D21
|
$9.93 | ||
|
Available to order. Add to View Price |
|||
|
#29
BEARING, NEEDLE (14X20X12)
91028-MGS-D21
|
$6.16 | ||
|
Available to order. Add to View Price |
|||
|
#30
PIN, DOWEL (8X26.4)
91103-KT7-000
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#31
OIL SEAL (12X20X5) (ARAI)
91205-KF0-003
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#32
O-RING (7X1.7)
91301-473-003
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#33
O-RING (11.8X1.9)
91301-KYJ-901
|
$0.51 | ||
|
Available to order. Add to View Price |
|||
|
#34
O-RING (14.8X2.4) (ARAI)
91303-KF0-003
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#35
O-RING (15.8X2.4)
91305-HL6-A00
|
$3.24 | ||
|
Available to order. Add to View Price |
|||
|
#36
O-RING (28X3) (Honda Code 2902443)
91307-MK5-000
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#37
PIN, DOWEL (8X14) (Honda Code 0069310)
94301-08140
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#38
BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22)
95701-06020-00
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#39
BOLT, FLANGE (6X28)
95701-06028-00
|
$1.90 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40
BOLT, FLANGE (6X35)
95701-06035-00
|
$1.97 | ||
|
Available to order. Add to View Price |
|||
|
#41
BOLT, FLANGE (6X40) BOLT, FLANGE (6X45)
95701-06040-00
|
$1.97 | ||
|
Available to order. Add to View Price |
|||
|
#42
BOLT, FLANGE (6X50) (Honda Code 2410975)
95701-06050-00
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#43
ROLLER (5X17.8)
96220-50178
|
$0.83 | ||
|
Available to order. Add to View Price |
|||
