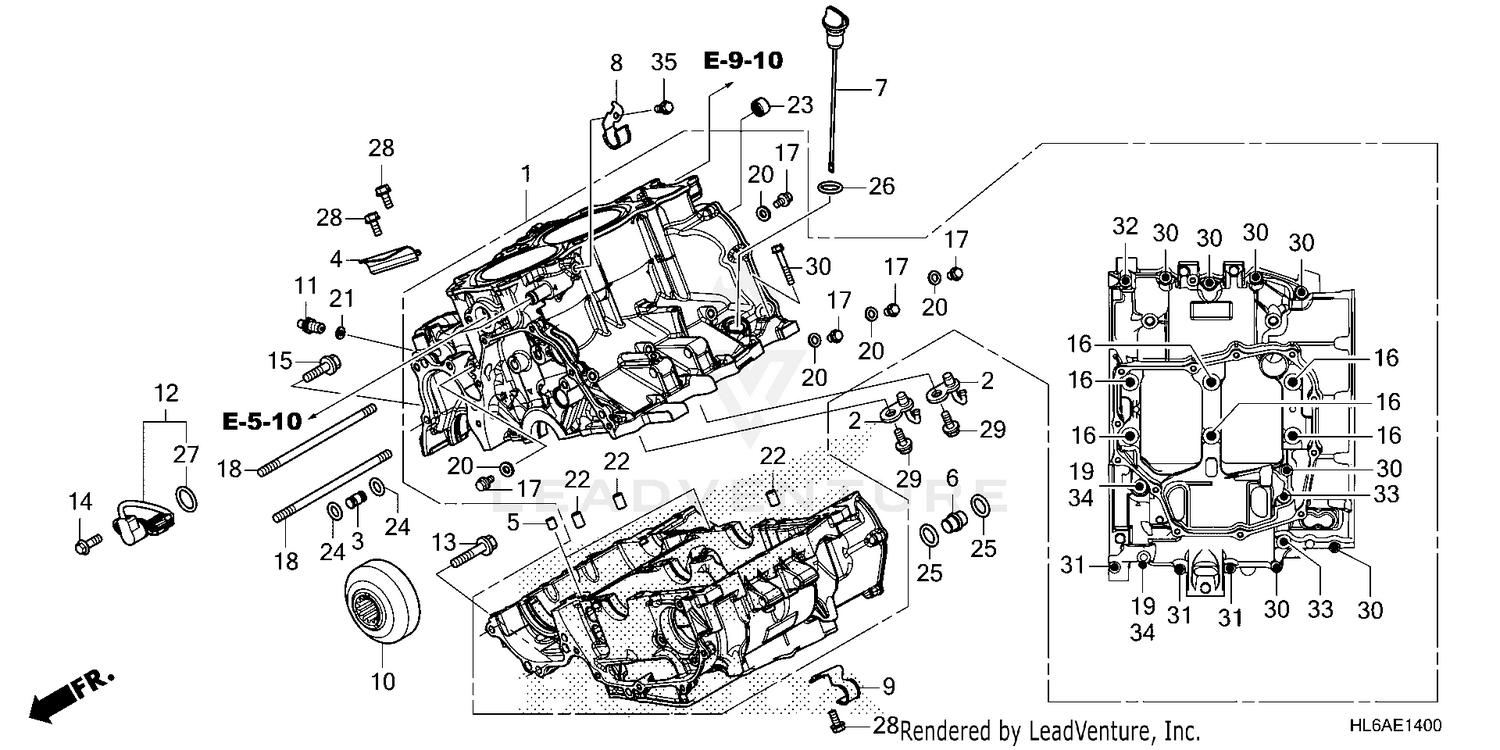

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE SET
11000-HL6-A01
|
$2,974.26 | ||
|
Available to order. Add to View Price |
|||
|
#2
JET, PISTON
11140-HL6-A02
|
$84.62 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN, OIL GUIDE (8MM)
11145-HL4-000
|
$10.45 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER, ANGLE SENSOR
11150-HL4-000
|
$6.84 | ||
|
Available to order. Add to View Price |
|||
|
#5
ORIFICE (1.3MM)
11207-HL4-000
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#6
JOINT, SPECIAL
15236-HL4-000
|
$11.22 | ||
|
Available to order. Add to View Price |
|||
|
#7
DIPSTICK, OIL
15660-HL6-A00
|
$21.44 | ||
|
Available to order. Add to View Price |
|||
|
#8
STAY, FUEL HOSE
17560-HL6-A00
|
$6.84 | ||
|
Available to order. Add to View Price |
|||
|
#9
STAY, OIL COOLER HOSE
19510-HL6-A00
|
$9.00 | ||
|
Available to order. Add to View Price |
|||
|
#10
DAMPER, FINAL DRIVE
23060-HL4-AJ0
|
$242.75 | ||
|
Unavailable |
|||
|
#11
SWITCH, NEUTRAL
35600-HL4-003
|
$23.47 | ||
|
Available to order. Add to View Price |
|||
|
#12
SENSOR ASSY., ANGLE (350DEGREE)
38800-HL6-A01
|
$237.69 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE (8X40)
90003-MCS-000
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, KNOCK (6MM)
90011-MGE-D00
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE (8X28)
90014-HL4-000
|
$4.73 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE (10X110)
90015-HL4-003
|
$6.42 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, SEALING (8MM)
90024-612-000
|
$5.97 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, STUD (8X167)
90031-HL4-000
|
$9.53 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, SEALING (8MM)
90442-MR1-770
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER (8MM)
90471-580-000
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, OIL BOLT (10.2X15X1.4)
90545-MC0-000
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIN, DOWEL (10X16) (Honda Code 3906971)
90701-MV9-670
|
$5.40 | ||
|
Available to order. Add to View Price |
|||
|
#23
BEARING, NEEDLE (12X18X12)
91024-MGS-D21
|
$4.71 | ||
|
Available to order. Add to View Price |
|||
|
#24
O-RING (5X1.7) (ARAI)
91305-MG7-003
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#25
O-RING (22.8X2.4)
91306-HL4-000
|
$3.71 | ||
|
Available to order. Add to View Price |
|||
|
#26
O-RING (18X3)
91307-035-000
|
$3.40 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
O-RING (16.5X2.5)
91310-MGE-D01
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, FLANGE (6X14) (Honda Code 2410884)
95701-06014-00
|
$1.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
BOLT, FLANGE (6X16) (Honda Code 2410892)
95701-06016-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, FLANGE (6X40) BOLT, FLANGE (6X45)
95701-06040-00
|
$1.97 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, FLANGE (6X50) (Honda Code 2410975)
95701-06050-00
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, FLANGE (6X60)
95701-06060-00
|
$0.36 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, FLANGE (8X40)
95701-08040-00
|
$1.44 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT, FLANGE (8X65)
95701-08065-00
|
$1.96 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT, FLANGE (6X12)
96001-06012-00
|
$1.88 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
