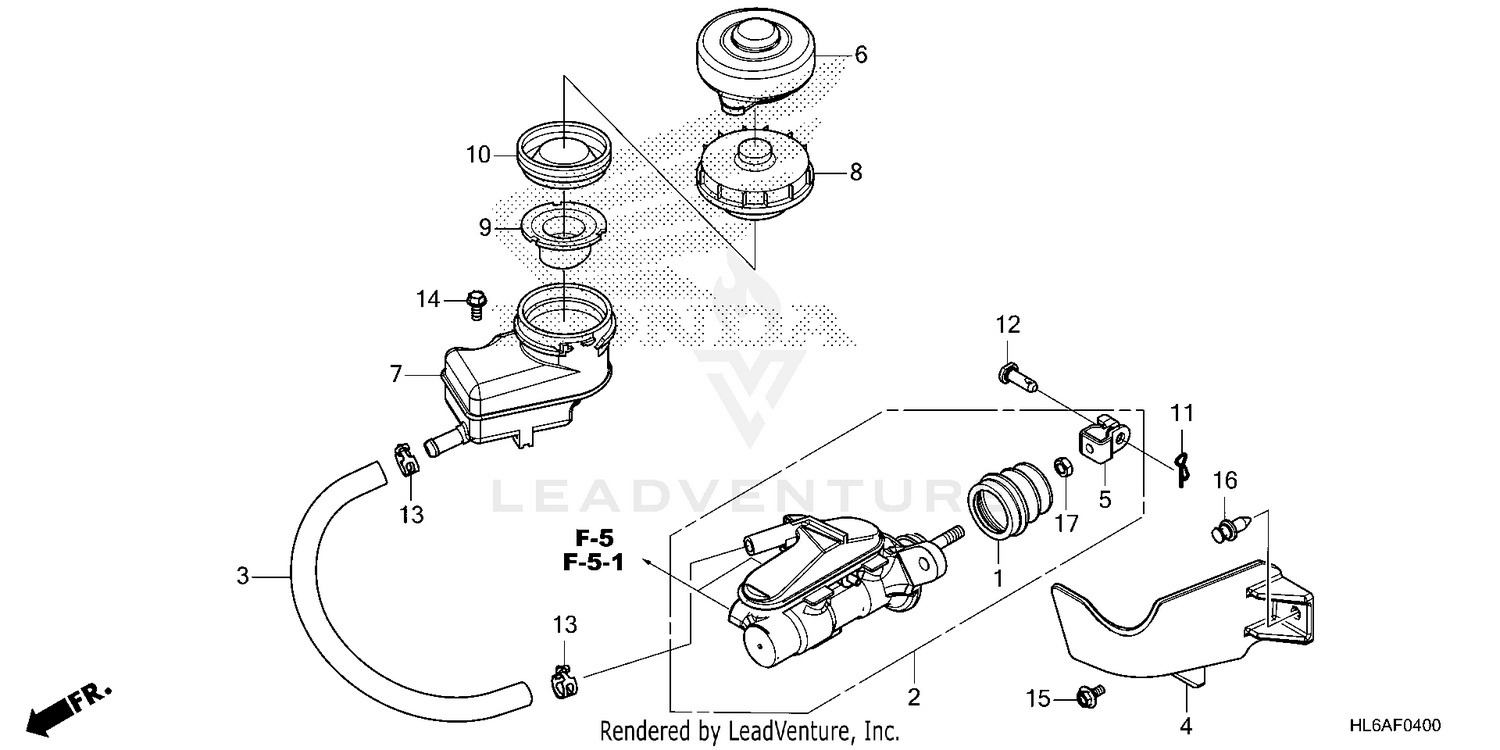

Brake Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BOOT
45504-HL4-A01
|
$5.31 | ||
|
Available to order. Add to View Price |
|||
|
#2
M/C SUB-ASSY.
45510-HL4-AK1
|
$162.38 | ||
|
Unavailable |
|||
|
#3
HOSE, RESERVE TANK
45512-HL6-A01
|
$35.98 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER, MASTER CYLINDER
45600-HL6-A00
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#5
YOKE (NISSIN)
46151-SA5-003
|
$16.62 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER, RESERVE TANK CAP
46163-HL1-A00
|
$22.55 | ||
|
Available to order. Add to View Price |
|||
|
#7
RESERVOIR
46660-SNA-A01
|
$56.31 | ||
|
Available to order. Add to View Price |
|||
|
#8
CAP, RESERVE TANK
46662-HL3-A02
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#9
FILTER, BRAKE RESERVOIR
46666-S2K-003
|
$10.30 | ||
|
Available to order. Add to View Price |
|||
|
#10
DIAPHRAGM
46669-S5A-003
Superseded by 46669-SCV-A01
|
$11.73 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN, LOCK (8MM)
46911-S70-003
|
$4.48 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN, CLUTCH PEDAL
46912-S84-A00
|
$9.65 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLAMP
53726-HL4-F01
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE (6X14)
90106-MCN-720
|
$2.11 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE (6MM)
90111-KT1-780
|
$17.62 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLIP, SPLASH GUARD (Honda Code 3795994)
90653-HC4-900
|
$0.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
NUT,HEX 8MM
94002-080000S
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT,HEX 8MM
94002-08080-0S
Superseded by 94002-080000S
|
$1.37 | ||
|
Unavailable |
|||
