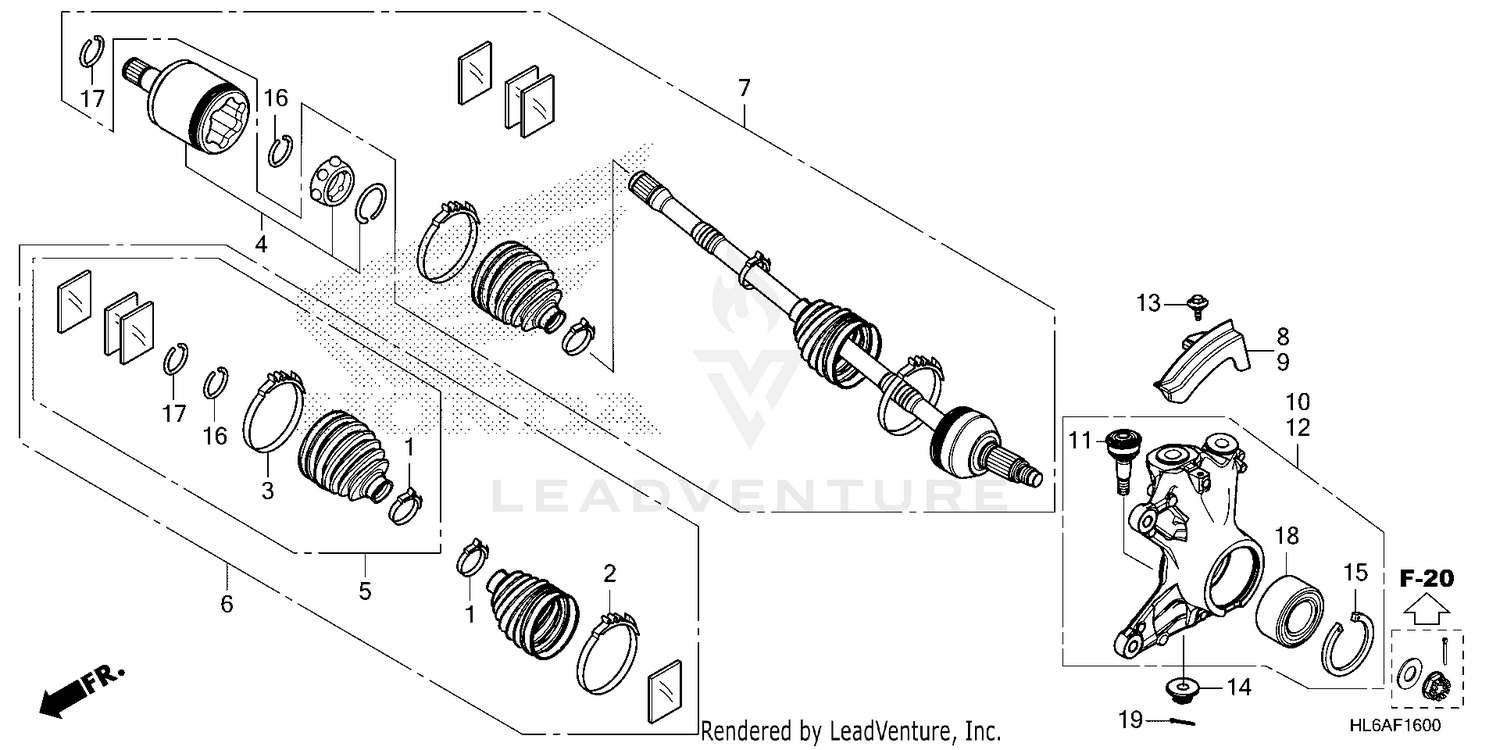

Front Knuckle@driveshaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BAND, SHAFT BOOT
42215-HL4-F41
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
BAND B, OUTBOARD
42216-HL4-F41
|
$7.98 | ||
|
Available to order. Add to View Price |
|||
|
#3
BAND B, INBOARD
42226-HL4-F41
|
$7.85 | ||
|
Available to order. Add to View Price |
|||
|
#4
JOINT, FR. INBOARD
44220-HL6-AF1
|
$113.05 | ||
|
Unavailable |
|||
|
#5
BOOT SET, FR. INBOARD
44230-HL6-A01
|
$73.07 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOOT SET, FR.
44240-HL6-A01
|
$86.27 | ||
|
Available to order. Add to View Price |
|||
|
#7
SHAFT SET, FR. DRIVE
44250-HL6-AF1
|
$217.09 | ||
|
Unavailable |
|||
|
#8
COVER, R. FR. DISK
45255-HL6-A00
|
$12.13 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER, L. FR. DISK
45256-HL6-A00
|
$12.13 | ||
|
Available to order. Add to View Price |
|||
|
#10
KNUCKLE ASSY., FR. R
51200-HL6-AA0
|
$194.00 | ||
|
Available to order. Add to View Price |
|||
|
#11
JOINT, FR. BALL (LOWER)
51220-TY0-004
|
$94.31 | ||
|
Available to order. Add to View Price |
|||
|
#12
KNUCKLE ASSY., FR. L
51250-HL6-AA0
|
$198.85 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, SHOULDER (6X20) (5.0)
90109-HL6-A00
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, CASTLE (12MM)
90365-SJA-000
|
$13.88 | ||
|
Available to order. Add to View Price |
|||
|
#15
CIRCLIP (INNER) (75)
90651-HL3-A40
|
$14.18 | ||
|
Available to order. Add to View Price |
|||
|
#16
RING, OUTBOARD SNAP
90653-HL4-F41
|
$5.65 | ||
|
Available to order. Add to View Price |
|||
|
#17
RING B, INBOARD SNAP
90666-HL6-A01
|
$5.35 | ||
|
Available to order. Add to View Price |
|||
|
#18
BEARING, ANGULAR BALL (40X74X36)
91054-HL3-A41
|
$39.55 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIN, SPLIT (2.5X30)
94201-25200
Superseded by 94201-25300
|
$1.08 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIN, SPLIT (2.5X30)
94201-25250
Superseded by 94201-25300
|
$1.08 | ||
|
Unavailable |
|||
|
#19
PIN, COTTER (2.5MM)
94201-25300
|
$1.08 | ||
|
Unavailable |
|||
