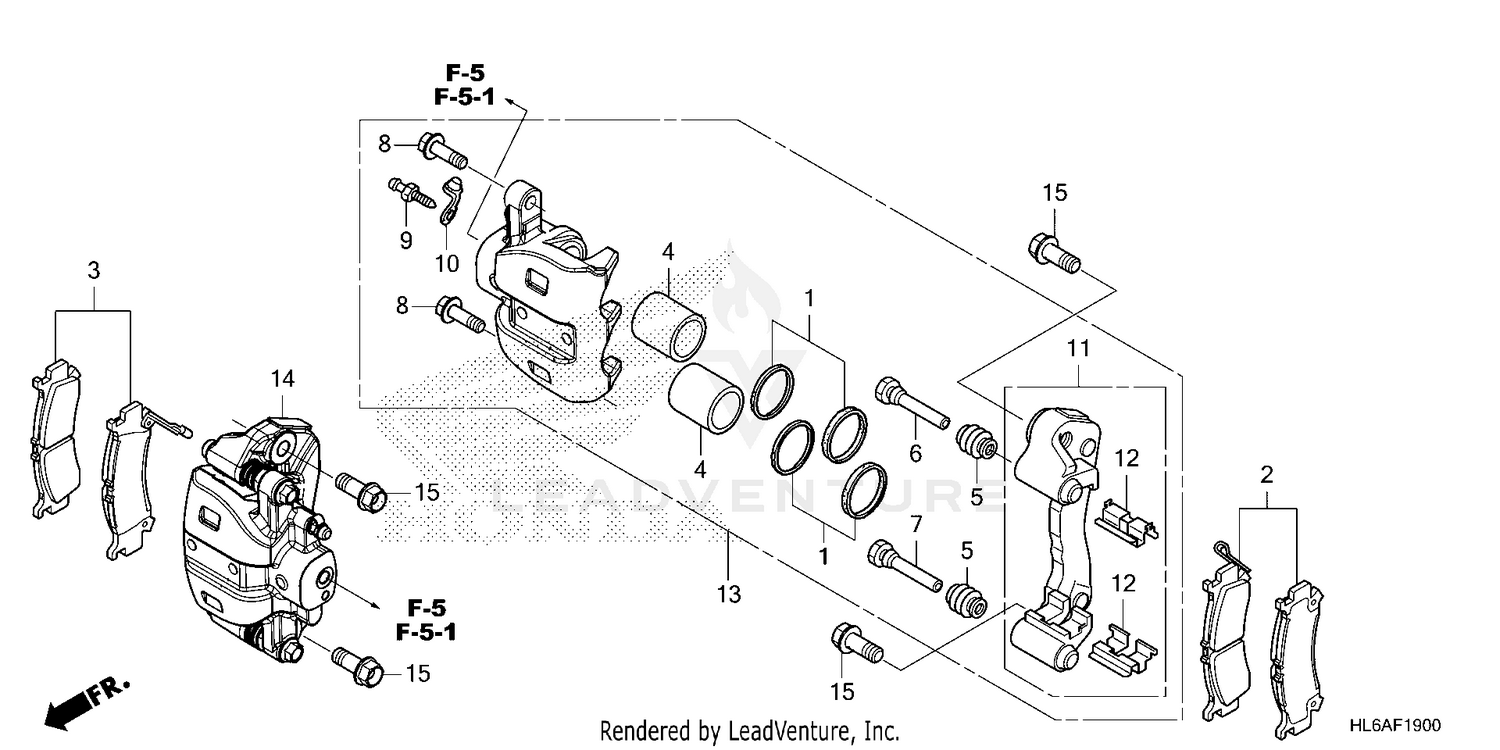

Front Brake Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEAL SET, PISTON
06451-961-405
|
$8.24 | ||
|
Available to order. Add to View Price |
|||
|
#2
PAD SET, L. FR.
06451-HL6-A01
|
$88.94 | ||
|
Available to order. Add to View Price |
|||
|
#3
PAD SET, R. FR.
06452-HL6-A01
|
$88.94 | ||
|
Available to order. Add to View Price |
|||
|
#4
PISTON
43107-KFG-J21
|
$27.60 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, DUST
43234-S04-003
|
$5.88 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN B
43235-HL4-A01
|
$5.98 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIN A
43235-HP0-A01
|
$7.40 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE (8X26)
43240-S6M-J51
|
$6.08 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, BLEEDER (NISSIN)
43352-568-003
|
$9.98 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAP, BLEEDER
43353-461-771
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#11
BRACKET, FR.
45110-HL4-A01
|
$48.56 | ||
|
Available to order. Add to View Price |
|||
|
#12
RETAINER, FR. BRACKET
45112-HP0-A01
|
$7.93 | ||
|
Available to order. Add to View Price |
|||
|
#13
CALIPER SUB-ASSY., L. FR. (MSDS)
45150-HL4-A01
|
$128.55 | ||
|
Available to order. Add to View Price |
|||
|
#14
CALIPER SUB-ASSY., R. FR.
45250-HL4-A01
|
$128.55 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE (12X33)
90104-HL6-A00
|
$2.24 | ||
|
Available to order. Add to View Price |
|||
