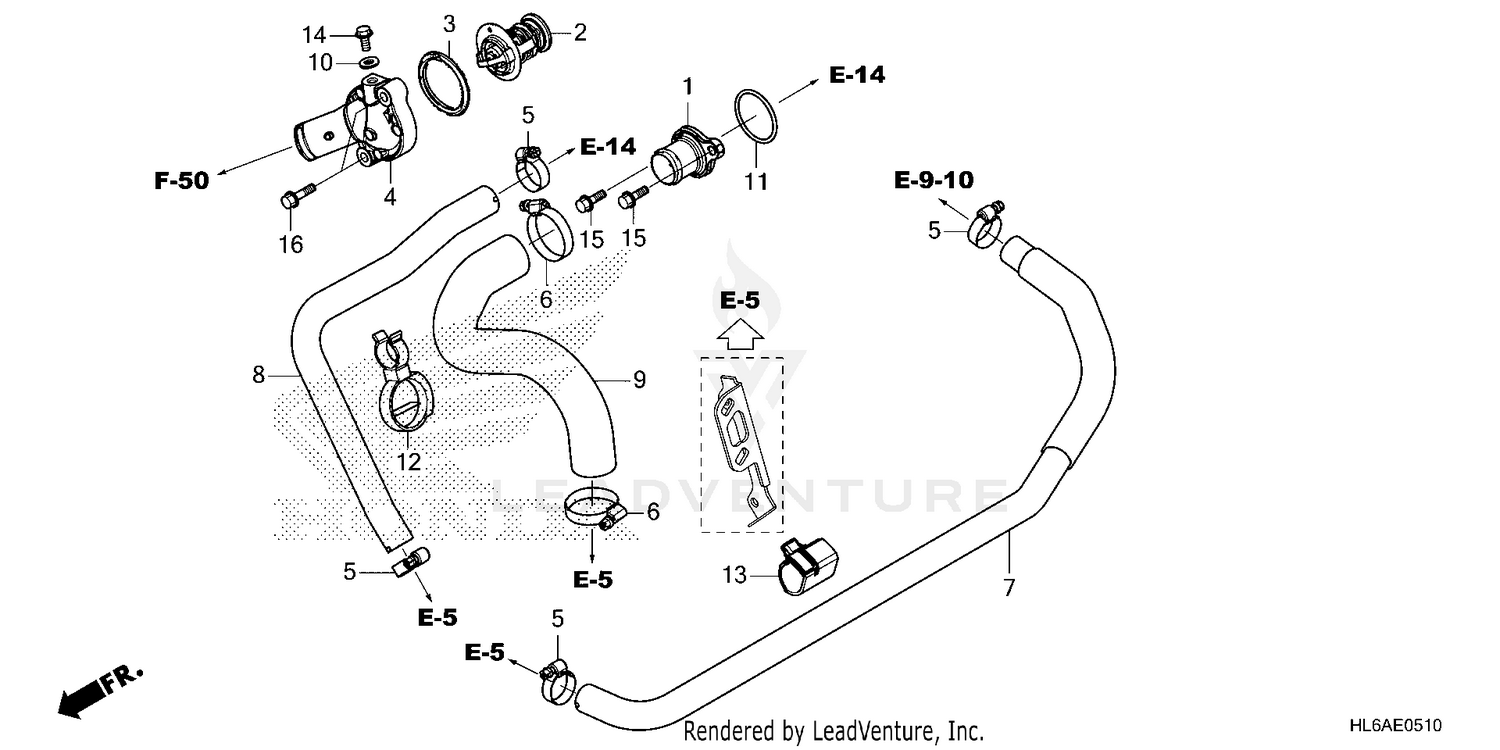

Water Hose@thermostat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
JOINT, WATER
19060-HL4-000
|
$23.64 | ||
|
Available to order. Add to View Price |
|||
|
#2
THERMOSTAT ASSY.
19300-MCJ-003
|
$62.93 | ||
|
Available to order. Add to View Price |
|||
|
#3
RUBBER, THERMOSTAT
19305-KV3-010
|
$7.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
COVER, THERMOSTAT
19315-HL6-A00
|
$35.55 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLAMP, WATER HOSE (25MM)
19504-KY1-003
|
$12.47 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLAMP, HOSE (30-37MM)
19516-GAG-003
|
$17.45 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOSE, OIL COOLER OUTLET
19522-HL4-000
|
$47.67 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOSE, WATER BYPASS
19523-HL4-000
|
$15.45 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOSE, WATER
19524-HL4-000
|
$20.42 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SEALING (6MM)
90441-706-000
|
$1.46 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
O-RING (29.7X2.4) (NOK)
91356-425-003
Superseded by 91356-425-005
|
$3.51 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
O-RING (29.7X2.4) (NOK)
91356-425-005
|
$3.51 | ||
|
Unavailable |
|||
|
#12
CLIP, WATER HOSE
91558-HL4-003
|
$6.60 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLIP, WIRE HARNESS (BLACK)
91558-TA0-003
|
$1.08 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE (6X12)
95701-06012-08
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE (6X18) BOLT, HEX. (6X18)
95701-06018-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE (6X28)
95701-06028-00
|
$1.90 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
