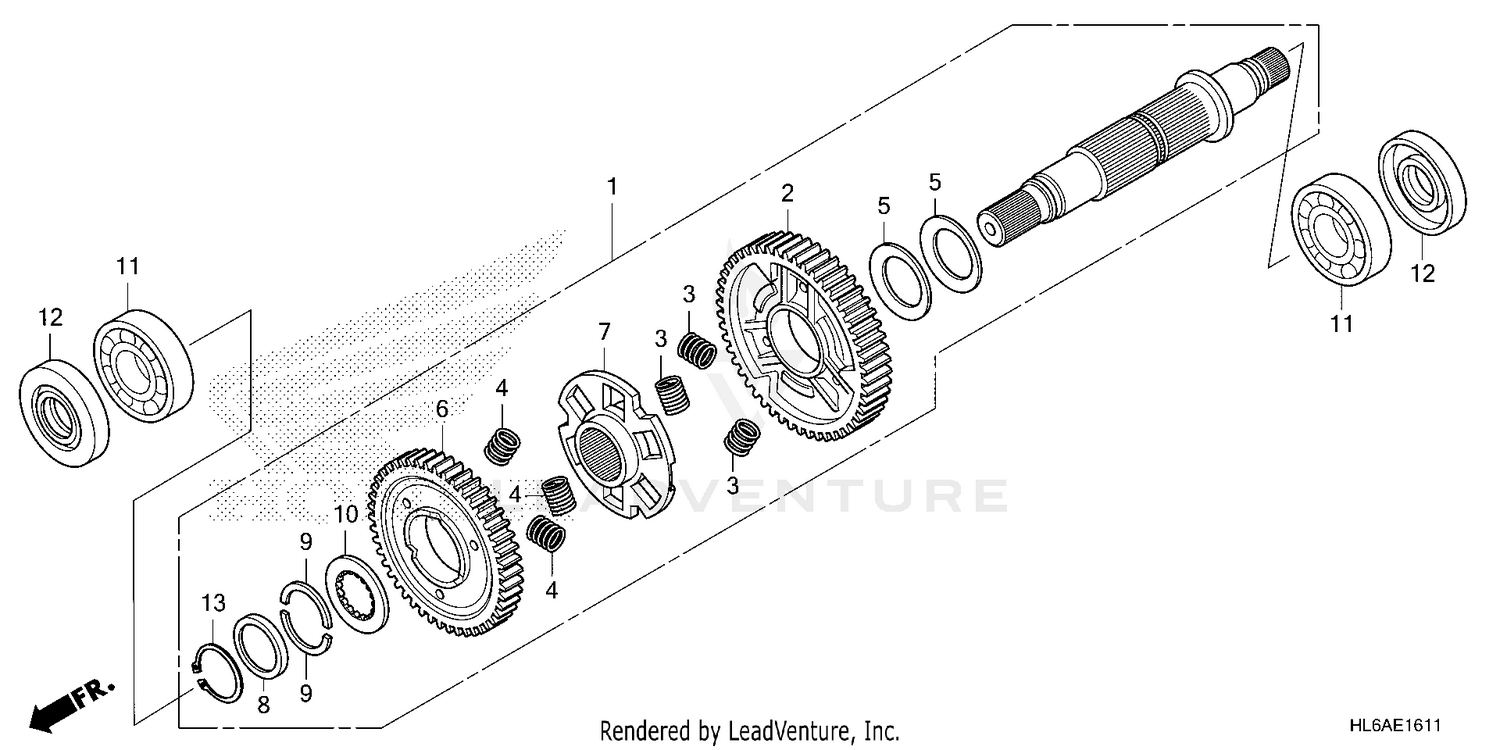

Final Driven Shaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHAFT, FINAL DRIVEN
23040-HL6-AA0
|
$418.15 | ||
|
Unavailable |
|||
|
#2
GEAR
23661-HL4-AJ0
|
$172.38 | ||
|
Unavailable |
|||
|
#3
SPRING A, DAMPER
23663-HL4-000
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING B, DAMPER
23664-HL4-000
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, FINAL DRIVEN DAMPER FRICTION
23665-HL4-000
|
$8.33 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, FINAL DRIVEN HIGH (47T)
23681-HL4-000
|
$108.62 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOLDER, FINAL DRIVEN
23682-HL4-AJ0
|
$102.05 | ||
|
Unavailable |
|||
|
#8
RETAINER, FINAL DRIVEN SHAFT COTTER
23723-HL4-000
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#9
COTTER, FINAL DRIVEN
23724-HL4-000
|
$9.69 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SPLINE (36X54X4)
90421-HL4-000
|
$14.69 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING, SPECIAL BALL (63/28)
91025-HL4-003
|
$44.24 | ||
|
Available to order. Add to View Price |
|||
|
#12
OIL SEAL (30X50X9.5)
91201-HL4-013
|
$13.96 | ||
|
Available to order. Add to View Price |
|||
|
#13
CIRCLIP (OUTER) (36MM)
94510-36000
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
