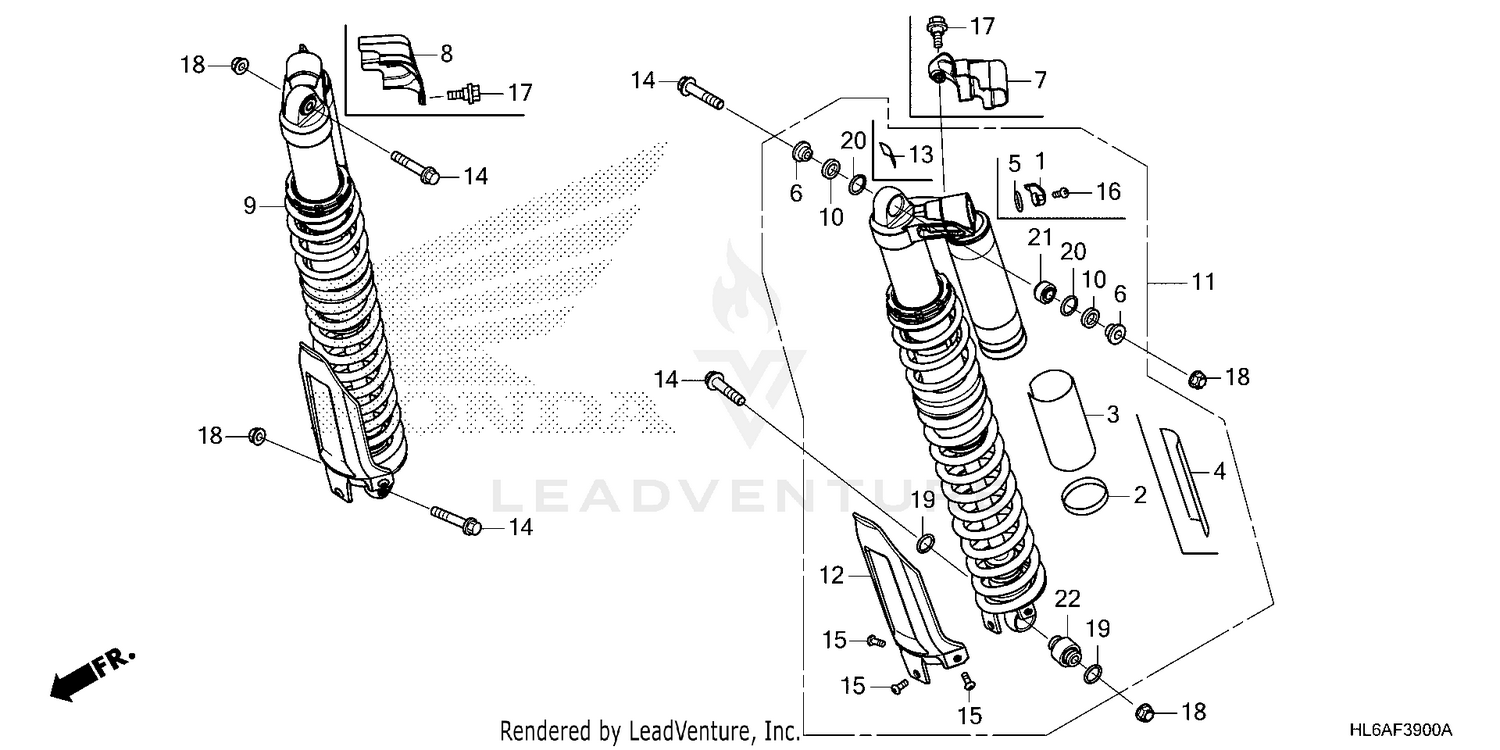

Rear Shock Absorber Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#2
DECAL, BAND
51427-HL6-A61
|
$51.35 | ||
|
Available to order. Add to View Price |
|||
|
#3
DECAL, RESERVOIR
51428-HL6-A51
|
$13.82 | ||
|
Available to order. Add to View Price |
|||
|
#6
REDUCER, EYELET
51431-HL6-A11
|
$8.29 | ||
|
Available to order. Add to View Price |
|||
|
#7
PROTECTOR, R. CUSHION SOLENOID
51610-HL7-A30
|
$4.36 | ||
|
Available to order. Add to View Price |
|||
|
#8
PROTECTOR, L. CUSHION SOLENOID
51620-HL7-A30
|
$4.36 | ||
|
Available to order. Add to View Price |
|||
|
#9
CUSH, RR. R (TYPE3)
52400-HL6-A62ZB
|
$2,908.25 | ||
|
Unavailable |
|||
|
#10
O-RING (0.787X0.210)
91351-HL6-A11
|
$2.27 | ||
|
Available to order. Add to View Price |
|||
|
#11
CUSH, RR. L (TYPE3)
52500-HL6-A62ZB
|
$2,917.27 | ||
|
Unavailable |
|||
|
#12
PROTECTOR, CUSHION
52610-HL6-A11
|
$19.42 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE (12X57)
90101-HL6-A00
|
$1.24 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, SPECIAL PAN (6X12)
90102-HL6-A01
|
$5.38 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (6MM)
90113-GF0-000
|
$5.31 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, SELF-LOCK (12MM) (CLINCH) (SATO RASHI)
90215-SB0-003
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#19
RING, RETAINING (1.290X0.050)
90651-HL6-A11
|
$6.65 | ||
|
Available to order. Add to View Price |
|||
|
#20
RING, RETAINING (1.290X0.050)
90651-HL6-A11
|
$6.65 | ||
|
Unavailable |
|||
|
#21
BEARING, SPHERICAL (UPPER)
91075-HL6-A11
|
$56.45 | ||
|
Available to order. Add to View Price |
|||
|
#22
BEARING, SPHERICAL (LOWER)
91077-HL6-A01
|
$30.05 | ||
|
Available to order. Add to View Price |
|||
