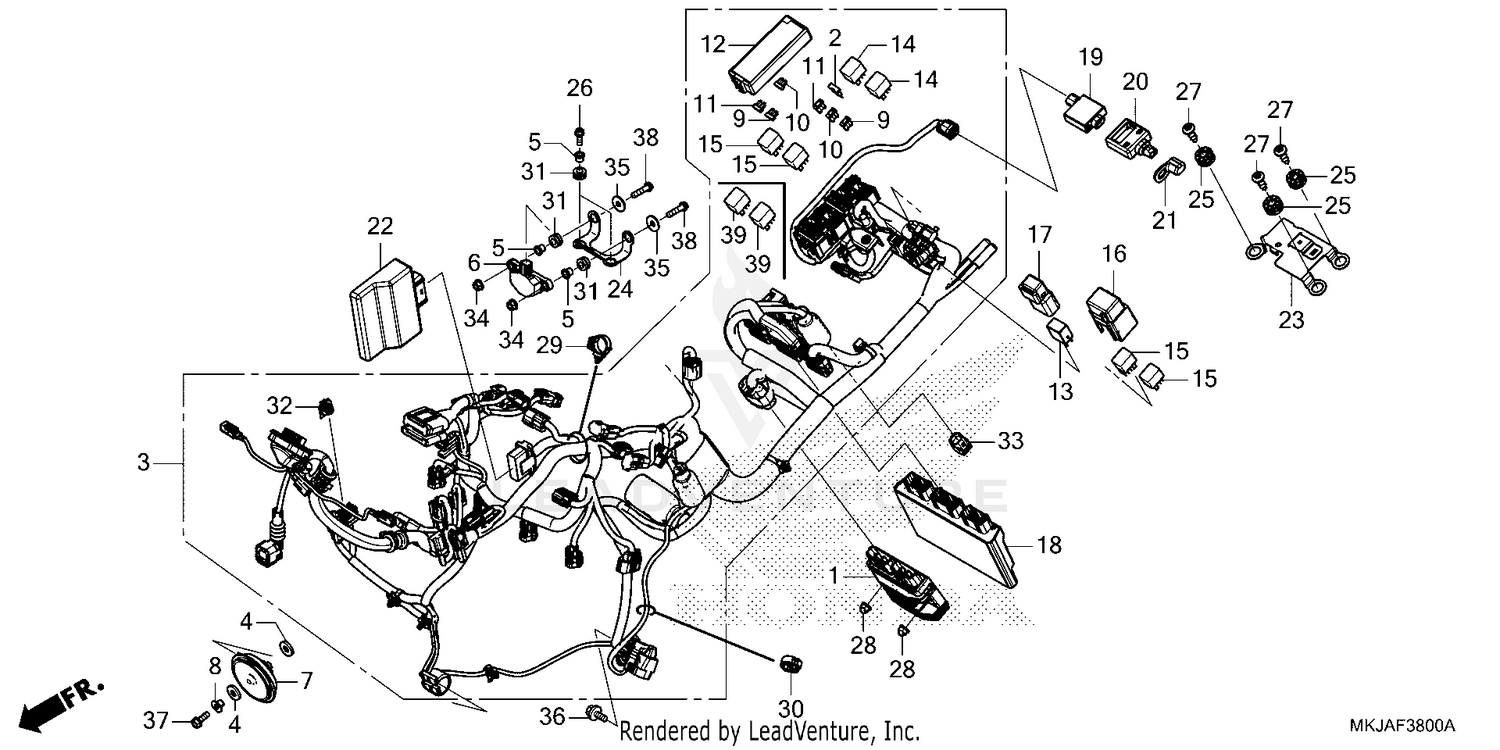

Wire Harness Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RECTIFIER ASSY., REGULATOR
31600-MKN-D51
|
$228.55 | ||
|
Available to order. Add to View Price |
|||
|
#2
DIODE ASSY., THREE WAY (SUMITOMO)
31730-MAS-601
|
$13.09 | ||
|
Available to order. Add to View Price |
|||
|
#3
WIRE HARNESS
32100-MKJ-A60
|
$1,885.85 | ||
|
Available to order. Add to View Price |
|||
|
#4
RUBBER, TAILLIGHT BRACKET
33714-KL3-620
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR, TAILLIGHT SETTING
33715-GB0-900
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#6
SENSOR ASSY., BANK ANGLE
35160-MGS-D31
|
$171.40 | ||
|
Available to order. Add to View Price |
|||
|
#7
HORN (HIGH)
38110-KPP-T01
|
$40.00 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR, HORN SETTING
38117-KFE-701
|
$0.87 | ||
|
Available to order. Add to View Price |
|||
|
#9
FUSE, BLADE (7.5A)
38221-SNA-A31
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#10
FUSE, BLADE (10A)
38221-SNA-A41
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#11
FUSE, BLADE (15A)
38221-SNA-A51
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER (UPPER)
38255-MKJ-E50
|
$11.87 | ||
|
Available to order. Add to View Price |
|||
|
#13
RELAY, POWER (MICRO ISO 4P)
38501-MCS-G01
|
$13.04 | ||
|
Available to order. Add to View Price |
|||
|
#14
RELAY (MICRO ISO 4P)
38501-MEL-003
Superseded by 38501-MKP-DN1
|
$5.85 | ||
|
Unavailable |
|||
|
#14
RELAY (MICRO ISO 4P)
38501-MKP-DN1
|
$5.85 | ||
|
Unavailable |
|||
|
#15
RELAY, POWER (MICRO ISO 4P)
38501-MKR-D11
|
$14.87 | ||
|
Available to order. Add to View Price |
|||
|
#16
COVER, RELAY (2P)
38506-KZZ-900
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
|
#17
SUSPENSION, POWER RELAY
38506-MCS-G00
|
$7.02 | ||
|
Available to order. Add to View Price |
|||
|
#18
PGM-FI UNIT
38770-MKJ-A61
|
$2,058.36 | ||
|
Available to order. Add to View Price |
|||
|
#19
CHARGER UNIT, USB (TYPE-C)
38940-MKR-D11
|
$76.38 | ||
|
Available to order. Add to View Price |
|||
|
#20
COVER, USB CHARGER (TYPE-C)
38941-MLA-A00
|
$9.09 | ||
|
Available to order. Add to View Price |
|||
|
#21
CAP, USB CHARGER COVER
38942-MLA-A00
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#22
CONTROL UNIT, BODY
38950-MKJ-A61
|
$403.11 | ||
|
Available to order. Add to View Price |
|||
|
#23
STAY
39571-MKJ-F60
|
$18.45 | ||
|
Available to order. Add to View Price |
|||
|
#24
STAY, BANK ANGLE SENSOR
50355-MKJ-D00
|
$8.58 | ||
|
Available to order. Add to View Price |
|||
|
#25
RUBBER, TAILLIGHT MOUNTING
84703-425-000
|
$5.93 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE (6X16)
90020-GHB-640
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW, SPECIAL TAPPING (5X14)
90102-MKH-D00
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT, CAP (6MM)
90308-MT8-000
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#29
CLAMP, HARNESS
90652-HC4-003
|
$7.47 | ||
|
Available to order. Add to View Price |
|||
|
#30
CLAMP, HARNESS
90690-MEF-800
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
RUBBER, TAILLIGHT MOUNTING
90851-961-000
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#32
CLIP, CONNECTOR (DARK BROWN)
91535-TA0-003
|
$5.20 | ||
|
Available to order. Add to View Price |
|||
|
#33
CAP, DUMMY (6P) (RED)
91771-MKK-H11
|
$25.67 | ||
|
Available to order. Add to View Price |
|||
|
#34
NUT, FLANGE (6MM)
94050-06080
|
$0.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
WASHER, PLAIN (6MM)
94103-06800
|
$0.82 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT, FLANGE (6X16)
95701-06016-08
|
$1.52 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#37
BOLT, FLANGE (6X18) (Honda Code 2410918)
95701-06018-07
|
$1.70 | ||
|
Unavailable |
|||
|
#38
BOLT, FLANGE (6X25)
96001-06025-00
|
$2.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
