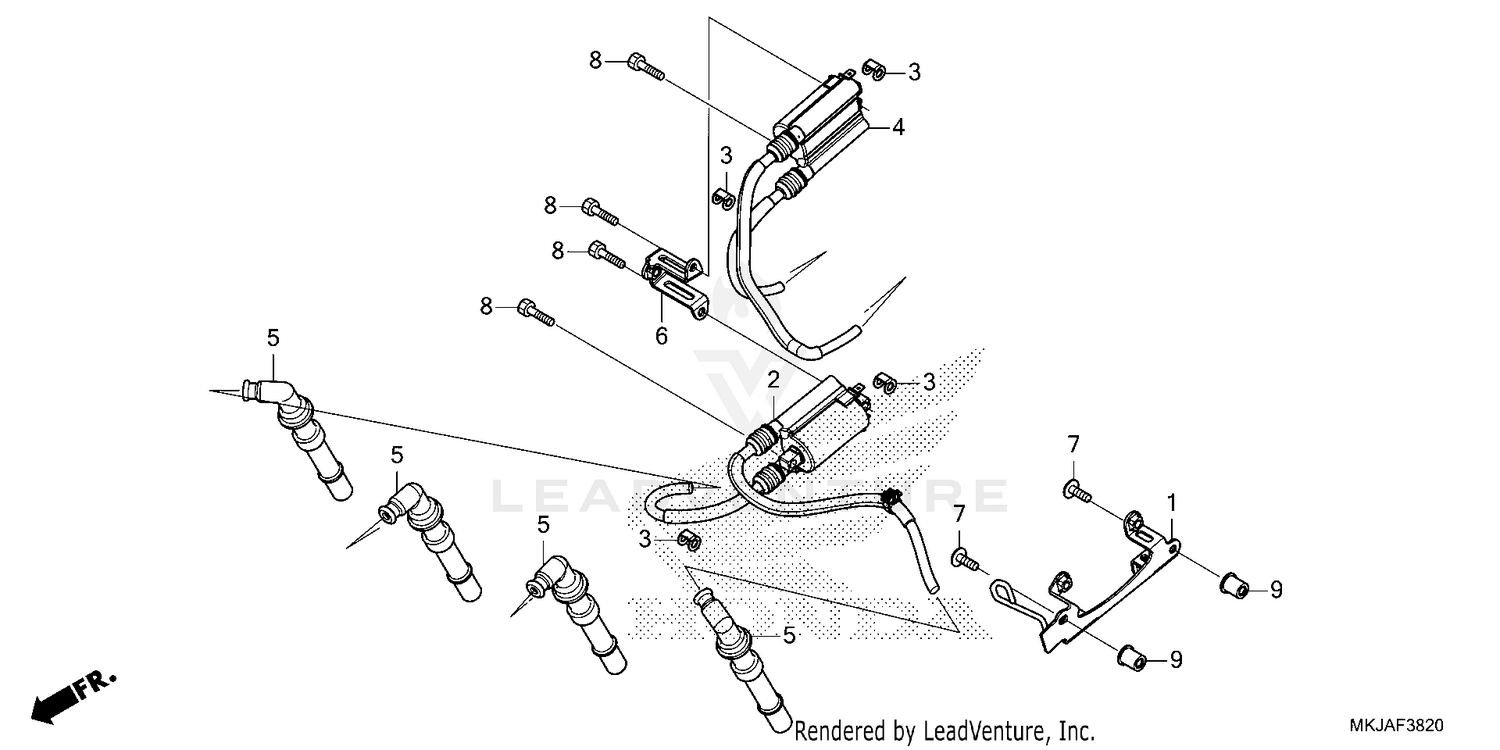

Ignition Coil Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAY, IGNITION COIL
30507-MKJ-D00
|
$23.35 | ||
|
Available to order. Add to View Price |
|||
|
#2
COIL ASSY., IGNITION (#1,#4)
30511-MKJ-D01
|
$108.27 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPACER, IGNITION COIL
30520-ML7-000
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#4
COIL ASSY., IGNITION (#2,#3)
30521-MKJ-D01
|
$108.27 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP ASSY., NOISE SUPPRESSOR
30700-MKJ-D01
|
$51.62 | ||
|
Available to order. Add to View Price |
|||
|
#6
STAY, FILLER NECK
50340-MKJ-D00
|
$10.75 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, SPECIAL (6X18)
90021-MZ1-000
|
$5.40 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, HEX. (6X22)
92101-06022-4J
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, WELL (6MM)
90303-MKJ-D00
|
$5.27 | ||
|
Available to order. Add to View Price |
|||
