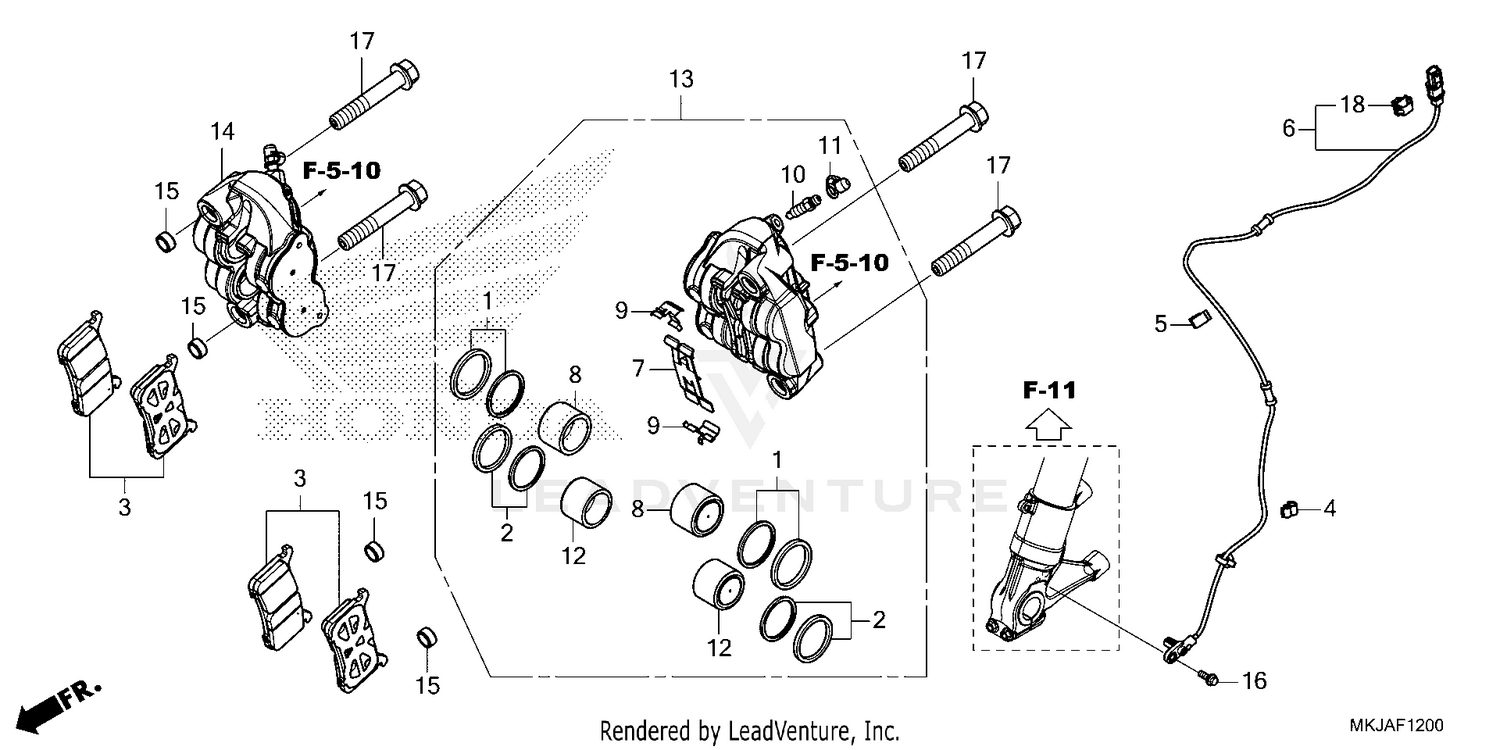

Front Brake Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEAL SET, PISTON (32)
06451-MEL-003
|
$6.04 | ||
|
Available to order. Add to View Price |
|||
|
#2
SEAL SET, PISTON (30)
06452-MEL-003
|
$6.04 | ||
|
Available to order. Add to View Price |
|||
|
#3
PAD SET, FR.
06455-MJM-D41
|
$66.26 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLAMP, ABS WIRE (D8.5)
38516-MGE-003
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLAMP, ABS WIRE (D12)
38517-MGE-003
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#6
SENSOR, FR.
38520-MKJ-E51
|
$208.71 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING, PAD
45106-MJM-D31
|
$10.85 | ||
|
Available to order. Add to View Price |
|||
|
#8
PISTON (32)
45107-MFL-013
|
$49.58 | ||
|
Available to order. Add to View Price |
|||
|
#9
RETAINER, PAD
45108-MJM-D31
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, BLEEDER
45111-MEL-013
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#11
CAP, BLEEDER
45112-MEL-003
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
PISTON (30)
45117-MFL-013
|
$47.80 | ||
|
Available to order. Add to View Price |
|||
|
#13
CALIPER SUB-ASSY., L. FR. (TOKIKO)
45150-MJM-D31
|
$445.64 | ||
|
Available to order. Add to View Price |
|||
|
#14
CALIPER SUB-ASSY., R. FR. (TOKIKO)
45250-MJM-D31
|
$465.67 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPACER, FR. FORK
51497-MKS-E00
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE (6X14)
90117-MJP-G60
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (10X57)
90131-MEL-000
|
$21.20 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLIP, CONNECTOR (DARK BLUE)
42524-T5A-003
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
