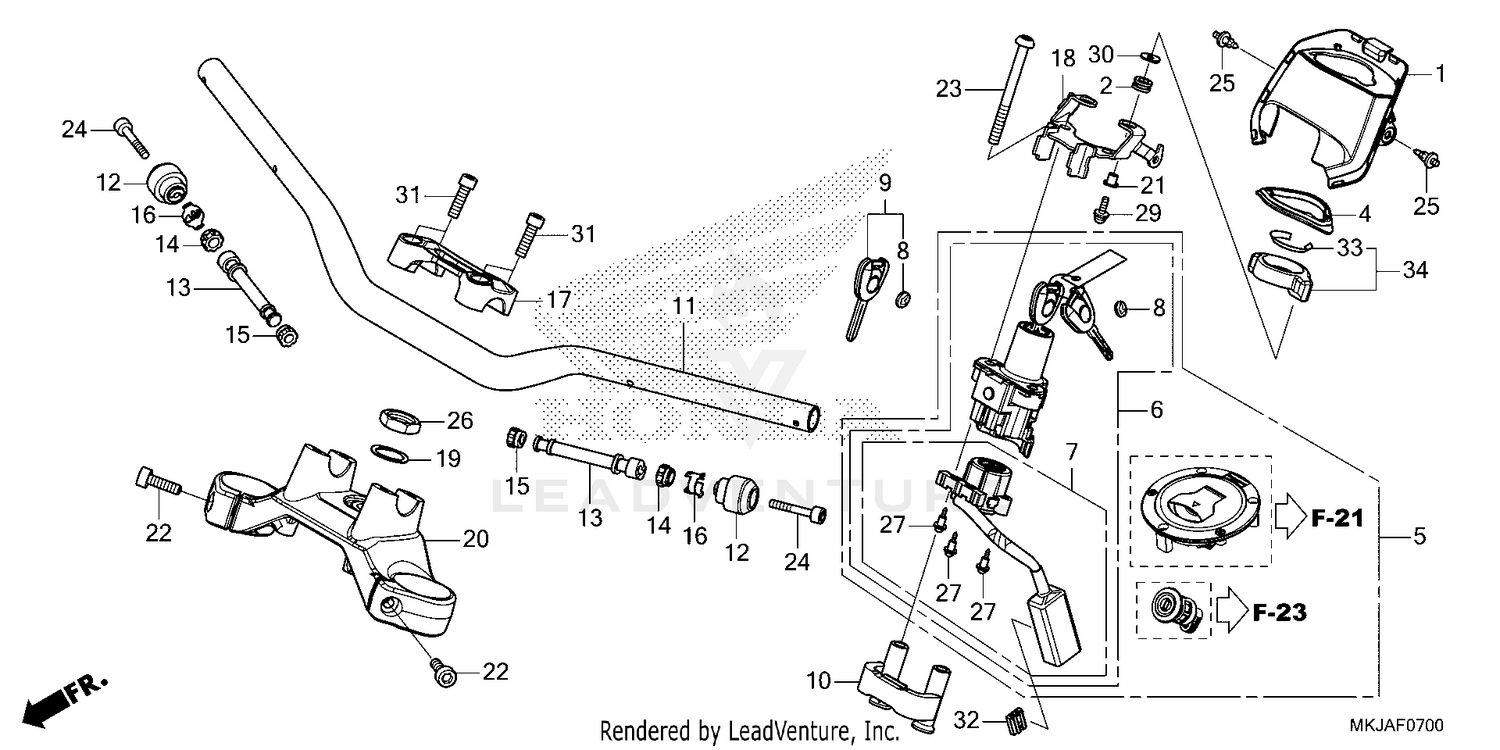

Handlebar@top Bridge Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, COMBINATION SWITCH (OUTER)
17555-MKJ-D00
|
$11.33 | ||
|
Available to order. Add to View Price |
|||
|
#2
RUBBER, MOUNTING
19639-KEE-630
|
$25.11 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER, RECEIVER UNIT HOLE
30435-MKJ-D00
|
$11.29 | ||
|
Available to order. Add to View Price |
|||
|
#5
LOCK SET
35010-MKJ-A60
Superseded by 35010-MKJ-A61
|
$480.78 | ||
|
Unavailable |
|||
|
#5
LOCK SET
35010-MKJ-A61
|
$480.78 | ||
|
Unavailable |
|||
|
#6
SWITCH ASSY.
35100-MKJ-A61
|
$181.05 | ||
|
Available to order. Add to View Price |
|||
|
#7
BASE, CONTACT
35101-MKJ-E51
|
$87.55 | ||
|
Available to order. Add to View Price |
|||
|
#8
EMBLEM, KEY
35113-MJK-N20
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#9
KEY, BLANK
35121-MGP-A93
|
$28.36 | ||
|
Available to order. Add to View Price |
|||
|
#10
STAY, KEY MOUNTING
50197-MKJ-D00
|
$40.82 | ||
|
Available to order. Add to View Price |
|||
|
#11
HANDLEBAR
53100-MKJ-E60
|
$413.11 | ||
|
Available to order. Add to View Price |
|||
|
#12
WEIGHT, HANDLEBAR
53105-MKJ-D90
|
$22.00 | ||
|
Unavailable |
|||
|
#13
WEIGHT B, HANDLE
53106-MKJ-D00
|
$22.82 | ||
|
Available to order. Add to View Price |
|||
|
#14
RUBBER, HANDLE WEIGHT (B)
53107-MB6-630
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
|
#15
RUBBER, HANDLE WEIGHT
53107-MJP-G50
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#16
RING, HANDLE WEIGHT SNAP
53108-KR3-940
|
$7.05 | ||
|
Available to order. Add to View Price |
|||
|
#17
HLDR, HANDLE (UPPER)
53131-MKJ-E60
|
$276.16 | ||
|
Available to order. Add to View Price |
|||
|
#18
STAY, RECEIVER UNIT
53190-MKJ-D00
|
$22.47 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, STEERING STEM NUT
53215-MKJ-D00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#20
BRIDGE, FORK TOP
53230-MKJ-D90
|
$186.96 | ||
|
Unavailable |
|||
|
#21
COLLAR, RR. FENDER
80101-MFJ-D00
|
$4.76 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, SOCKET (8X28)
90105-MA6-750
|
$6.20 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, ONE-WAY (8MM)
90107-MJN-A00
|
$5.67 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, SOCKET (6X40)
90121-MKJ-E50
|
$5.96 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLIP, BUMPER SEAL
90116-SP0-003
|
$5.93 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
NUT, STEERING STEM
90304-MEE-D00
|
$12.80 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW, TAPPING (3X16)
91059-KY2-711
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#29
SCREW-WASHER (5X16)
93891-05016-08
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, PLAIN (5MM)
94103-05800
|
$1.03 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, SOCKET (8X28)
90114-GHB-A80
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#32
HOLDER, BRACKET (RED)
91554-SM4-003
|
$8.18 | ||
|
Available to order. Add to View Price |
|||
|
#33
SEAL, IGNITION SWITCH
30433-MBW-602
|
$3.24 | ||
|
Available to order. Add to View Price |
|||
|
#34
COVER, COMBINATION SWITCH
35106-MKJ-A00
|
$13.44 | ||
|
Available to order. Add to View Price |
|||
