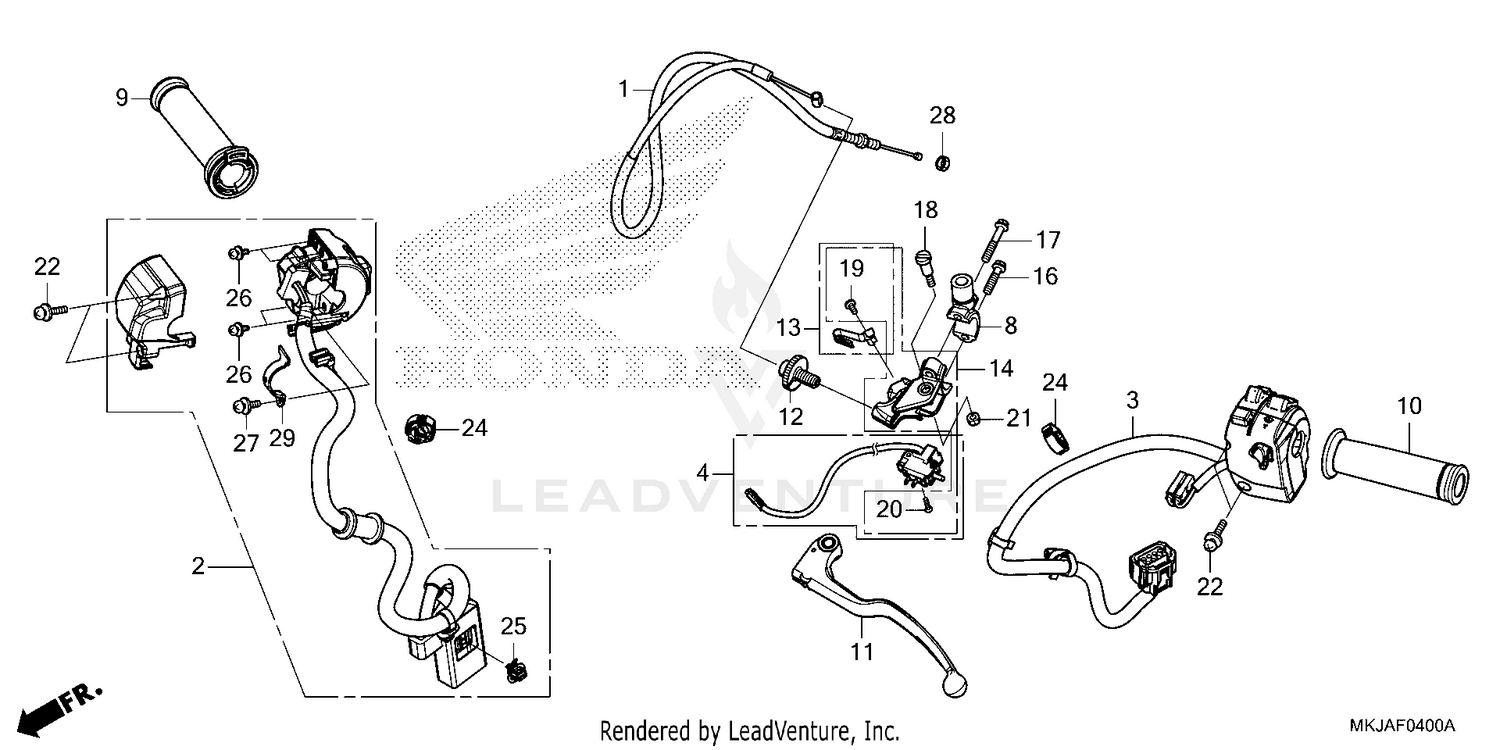

Handle Lever@switch@cable Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CABLE, CLUTCH
22870-MKJ-D01
|
$30.95 | ||
|
Available to order. Add to View Price |
|||
|
#2
SW UNIT
35135-MKJ-E53
|
$240.05 | ||
|
Unavailable |
|||
|
#3
SWITCH, TURN SIGNAL
35200-MKJ-E51
|
$247.56 | ||
|
Available to order. Add to View Price |
|||
|
#4
SWITCH SET, CLUTCH
35335-MKJ-E50
|
$22.11 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOLDER, MASTER CYLINDER
45518-MFN-D01
|
$15.04 | ||
|
Available to order. Add to View Price |
|||
|
#9
GRIP ASSY., THROTTLE
53140-MKF-D41
|
$42.35 | ||
|
Available to order. Add to View Price |
|||
|
#10
GRIP, L. HANDLE
53166-MY9-890
|
$22.04 | ||
|
Available to order. Add to View Price |
|||
|
#11
LEVER, L. HANDLE
53182-MKR-D31
|
$39.22 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, CABLE ADJ.
53183-MKJ-E60
|
$9.84 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING SET, CLUTCH LEVER
53190-MCJ-751
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#14
BRACKET SET
53195-MKJ-E50
|
$38.16 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE (6X25)
90021-GHB-680
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (6X35)
90021-GHB-720
|
$2.78 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, LEVER PIVOT
90122-MCJ-750
|
$6.04 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, PAN (4X10)
90123-MCJ-751
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, PAN (3X20)
90124-MKJ-E51
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT, U (6MM)
90301-MCJ-750
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW-WASHER (5X25)
90508-MGE-D00
|
$1.47 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLAMP, HARNESS
90690-MEF-800
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLIP, CONNECTOR (BEIGE)
91533-SDA-003
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW-WASHER (4X8)
93892-04008-08
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW-WASHER (4X8)
93892-04008-18
Superseded by 93892-04008-08
|
$1.20 | ||
|
Unavailable |
|||
|
#27
SCREW-WASHER (5X16)
93892-05016-08
|
$1.18 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT, HEX. (8MM)
94031-08070
|
$0.70 | ||
|
Available to order. Add to View Price |
|||
|
#29
PLATE A, SETTING
37971-MKR-D31
|
$5.16 | ||
|
Available to order. Add to View Price |
|||
