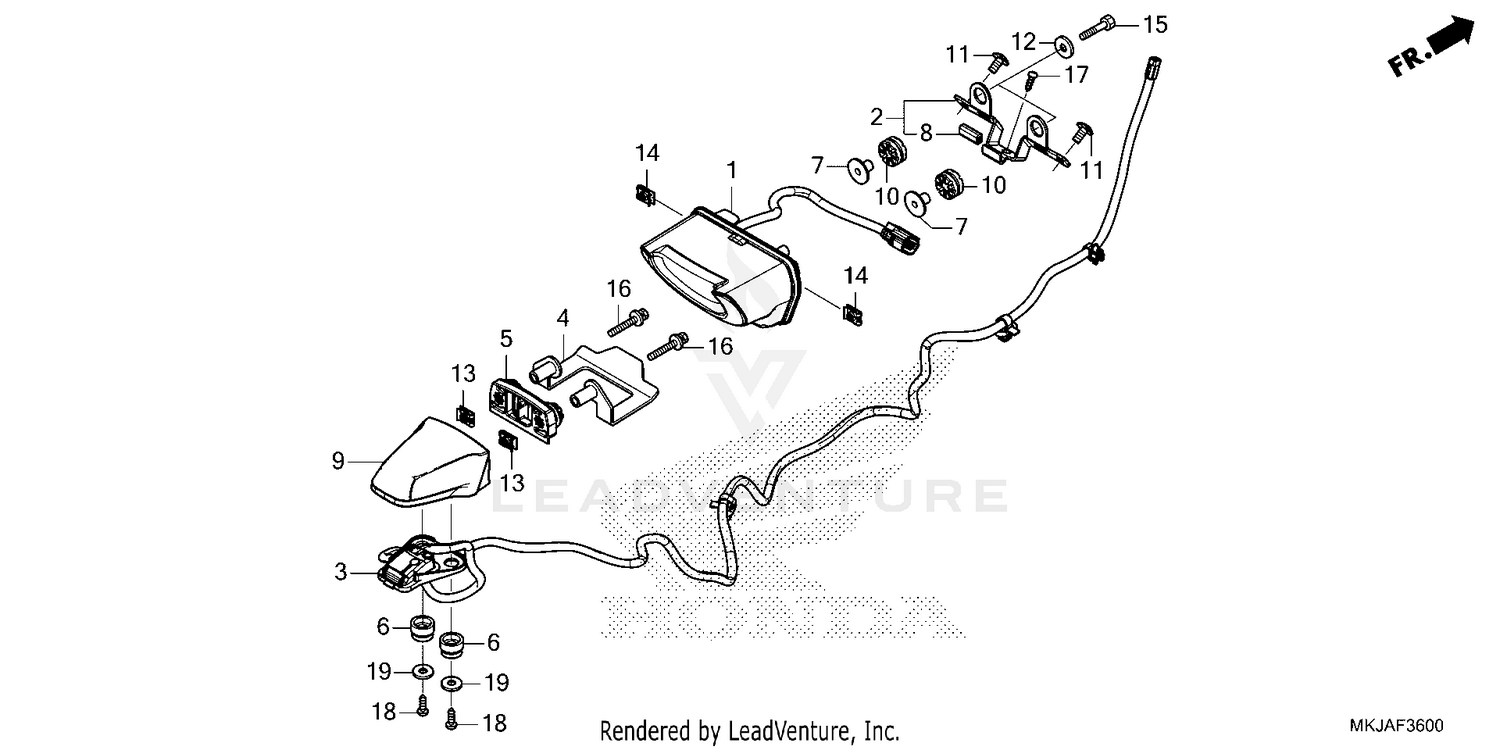

Taillight@license Light Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TAILLIGHT ASSY., & STOP
33701-MKJ-A01
|
$419.45 | ||
|
Available to order. Add to View Price |
|||
|
#2
STAY ASSY., TAILLIGHT
33710-MKJ-D00
|
$14.73 | ||
|
Available to order. Add to View Price |
|||
|
#3
LIGHT ASSY., LICENSE
33720-MKJ-D01
|
$141.38 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLR, LICENSE LIGHT
33727-MKJ-E50
|
$22.02 | ||
|
Available to order. Add to View Price |
|||
|
#5
RUBBER, LICENSE LIGHT
33728-MKJ-D00
|
$7.00 | ||
|
Available to order. Add to View Price |
|||
|
#6
RUBBER, METER SETTING
37215-KZZ-900
|
$1.62 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR (PCSV)
61104-MJM-A10
|
$5.13 | ||
|
Available to order. Add to View Price |
|||
|
#8
PROTECTOR, RUBBER
77212-MFJ-D00
|
$1.98 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER, LICENSE
80106-MKJ-D00
|
$16.80 | ||
|
Available to order. Add to View Price |
|||
|
#10
RUBBER, TAILLIGHT MOUNTING
84703-425-000
|
$5.93 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, PAN (6X12)
90106-MAV-000
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLAIN (5MM)
90507-MGM-D10
|
$3.47 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, CLIP (5MM)
90677-KAN-961
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, CLIP (5MM)
90677-KAN-T00
|
$0.73 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
BOLT, HEX. (5X25)
92101-05025-0G
|
$0.89 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT-WASHER (5X32)
93401-05032-07
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW, TAPPING (4X12)
93903-24380
|
$0.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
SCREW, TAPPING (5X14) (PO)
93913-25380
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLAIN (5MM)
94103-05700
|
$0.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
