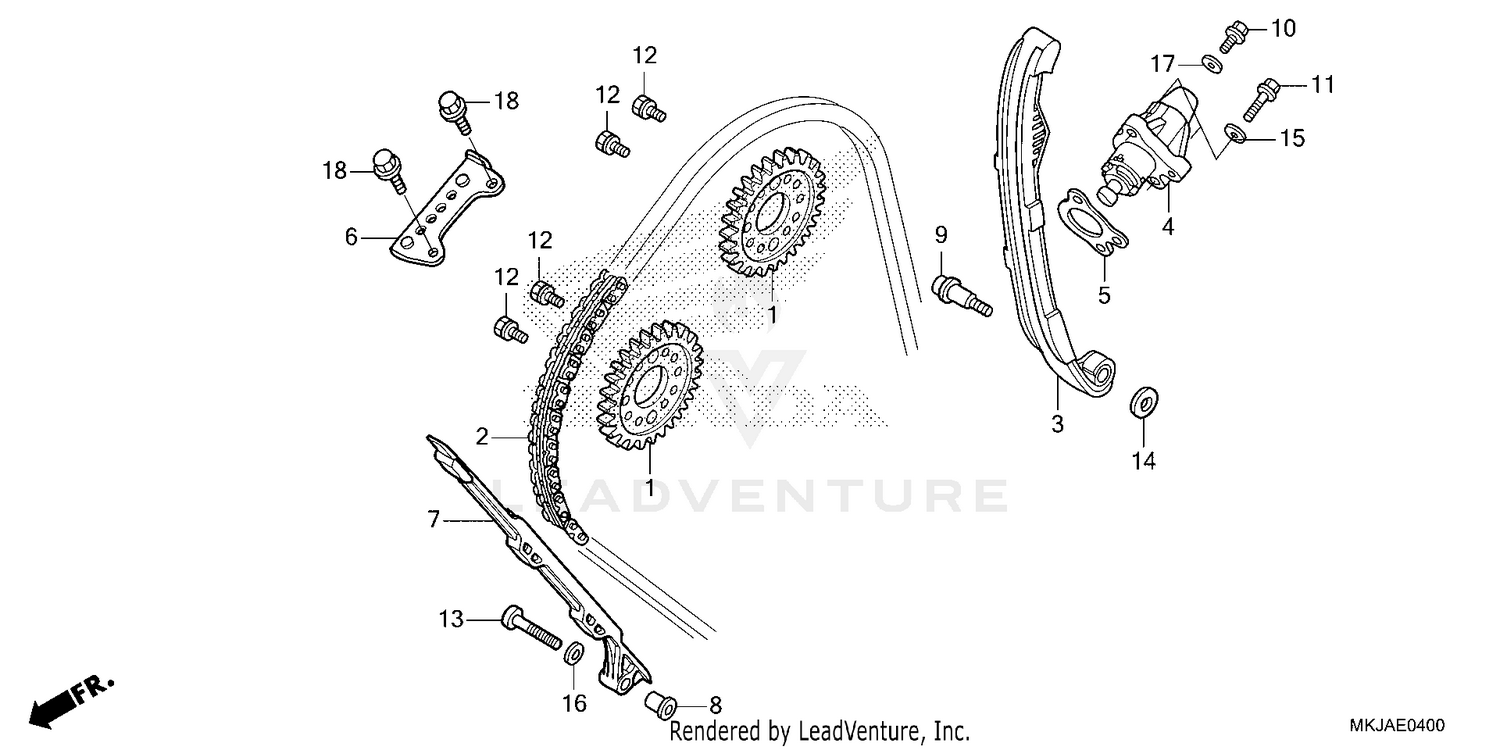

Cam Chain@tensioner Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPROCKET, CAM (34T)
14321-MEL-000
|
$57.45 | ||
|
Available to order. Add to View Price |
|||
|
#2
CHAIN, CAM (125L) (BORG WARNER)
14401-MAS-013
|
$136.45 | ||
|
Available to order. Add to View Price |
|||
|
#3
TENSIONER, CAM CHAIN
14510-MFA-D00
|
$81.36 | ||
|
Available to order. Add to View Price |
|||
|
#4
LIFTER ASSY., TENSIONER
14520-MFN-D01
|
$120.55 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET, TENSIONER HOLE
14525-MFA-D01
|
$7.40 | ||
|
Available to order. Add to View Price |
|||
|
#6
GUIDE B, CAM CHAIN
14546-MCJ-000
|
$55.15 | ||
|
Available to order. Add to View Price |
|||
|
#7
GUIDE A, CAM CHAIN (NOK)
14620-MW0-003
|
$111.16 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR (6MM)
14626-MCJ-000
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIVOT, CAM CHAIN TENSIONER
90022-MFN-D00
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE (6X10)
90028-GHB-610
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (6X25) (S-NSHF)
90028-GHB-680
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE KNOCK (7X10.5) (Honda Code 1824291)
90082-HA0-000
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, TORX (6X32)
90108-MEL-000
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER (6MM)
90401-MBW-000
|
$4.53 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, SEALING (6MM)
90404-HW1-670
|
$2.13 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER (6MM)
90408-KW1-900
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, SEALING (6MM)
90442-397-000
|
$2.58 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
BOLT, FLANGE (6X14) (Honda Code 2410884)
95701-06014-00
|
$1.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
