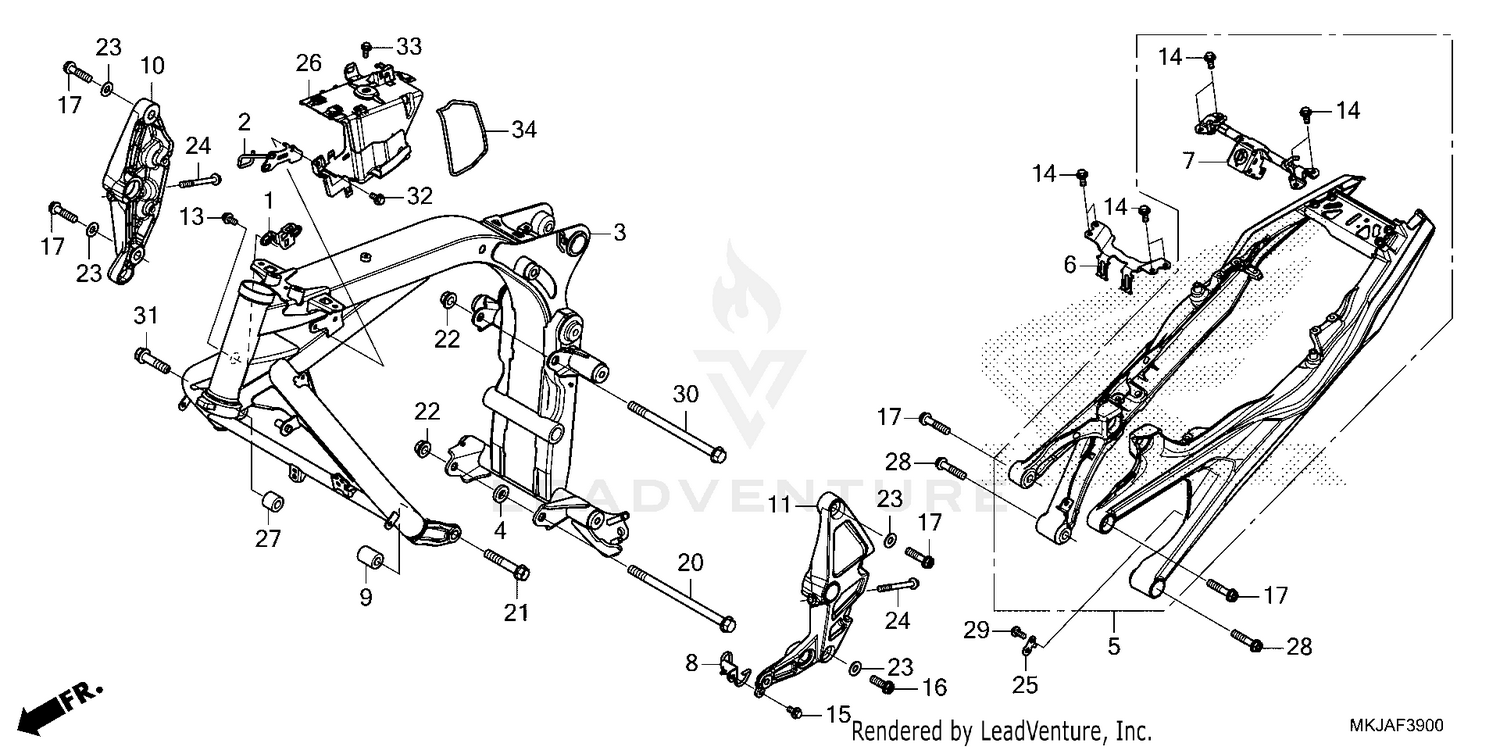

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAY, R. CONNECTOR
32125-MKJ-D00
|
$8.60 | ||
|
Available to order. Add to View Price |
|||
|
#2
STAY, CLIP
32206-MKJ-E50
|
$13.67 | ||
|
Available to order. Add to View Price |
|||
|
#3
FRAME *NHA86M*
50100-MKJ-E50ZA
|
$1,803.13 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR, ENGINE HANGER
50192-MFN-D00
|
$7.31 | ||
|
Available to order. Add to View Price |
|||
|
#5
RAIL, SEAT *NHA86M*
50200-MKJ-E50ZB
|
$1,209.78 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, FR. CROSS
50204-MKJ-E50
|
$13.33 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIPE, CENTER CROSS
50206-MKJ-D00
|
$319.98 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLAMP, DRAIN TUBE
50217-MKJ-D00
|
$8.85 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR, FR. ENGINE HANGER
50350-MKJ-D00
|
$19.76 | ||
|
Available to order. Add to View Price |
|||
|
#10
BRACKET, R. PIVOT
50600-MKJ-E60
|
$144.15 | ||
|
Available to order. Add to View Price |
|||
|
#11
BRACKET, L. PIVOT
50700-MKJ-E60
|
$144.15 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE (6X10)
90030-GHB-610
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE (6X12)
90031-GHB-620
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE (6X12)
90033-GHB-620
|
$2.38 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE (10X30)
90042-GHB-700
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (10X40)
90042-GHB-740
|
$3.84 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE (12X203)
90104-MKJ-D00
|
$20.38 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE (12X70)
90162-MKJ-D00
|
$14.62 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT, FLANGE (12MM)
94050-12070
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, PLAIN (10.5X22X1.6)
94101-10800
|
$1.97 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE (8X75)
90035-GHB-810
|
$4.22 | ||
|
Available to order. Add to View Price |
|||
|
#25
STAY, HARNESS CLIP
32157-MJM-D00
|
$5.25 | ||
|
Available to order. Add to View Price |
|||
|
#26
TRAY, ELECTRIC
50333-MKJ-E50
|
$16.31 | ||
|
Available to order. Add to View Price |
|||
|
#27
COLLAR, FR. ENG HGR
50350-MKJ-E50
|
$12.56 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, FLANGE (10X50)
90042-GHB-760
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT (6X14)
90101-MKJ-J50
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, FLG (12X175)
90102-MKJ-E50
|
$16.36 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, FLANGE (12X55)
90165-MKJ-E50
|
$13.71 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, FLANGE (6MM)
90112-KY0-860
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, FENDER SETTING (5X11.5)
91509-HC0-000
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#34
BAND, TOOL
89012-KZL-930
|
$1.42 | ||
|
Available to order. Add to View Price |
|||
