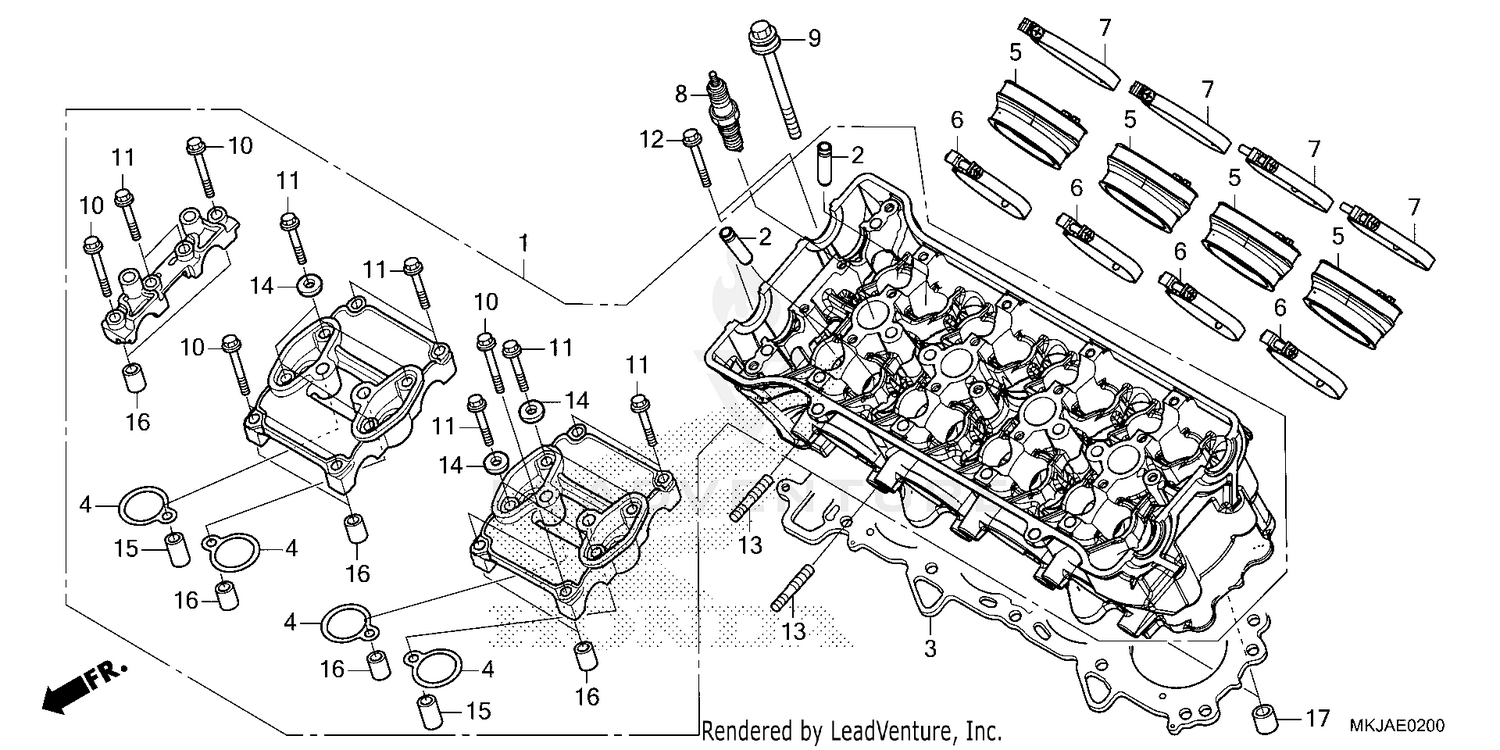

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD ASSY.
12010-MKJ-E50
|
$2,008.98 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUIDE, VALVE (OVER SIZE)
12204-MEL-305
|
$18.40 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET, CYLINDER HEAD
12251-MEL-D21
|
$97.73 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, PLUG HOLE
12395-MCJ-000
|
$6.22 | ||
|
Available to order. Add to View Price |
|||
|
#5
INSULATOR, THROTTLE BODY
16211-MKJ-D00
|
$24.22 | ||
|
Available to order. Add to View Price |
|||
|
#6
BAND, INSULATOR
16217-MKJ-D00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BAND, INSULATOR
16218-MKJ-D00
|
$9.53 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPARK PLUG (IMR9E-9HES) (NGK)
31912-MFL-003
|
$16.38 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPARK PLUG (VUH27ES) (DENSO)
31922-MEL-003
|
$29.27 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT-WASHER (9X105)
90007-MEL-003
|
$5.96 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE (6X45.5)
90017-MA6-000
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (6X39.5)
90019-MA6-000
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE (6X45) (S-NSHF)
90028-GHB-750
|
$2.89 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, STUD (8X24)
90035-MM5-000
|
$6.42 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, SEALING (6.5MM)
90463-ML7-000
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIN, DOWEL (8X24)
90701-MG3-000
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN, DOWEL (8X20) (Honda Code 1417369)
94301-08200
|
$2.35 | ||
|
Unavailable |
|||
|
#17
PIN, DOWEL (10X16) (Honda Code 0058206)
94301-10160
|
$2.58 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
