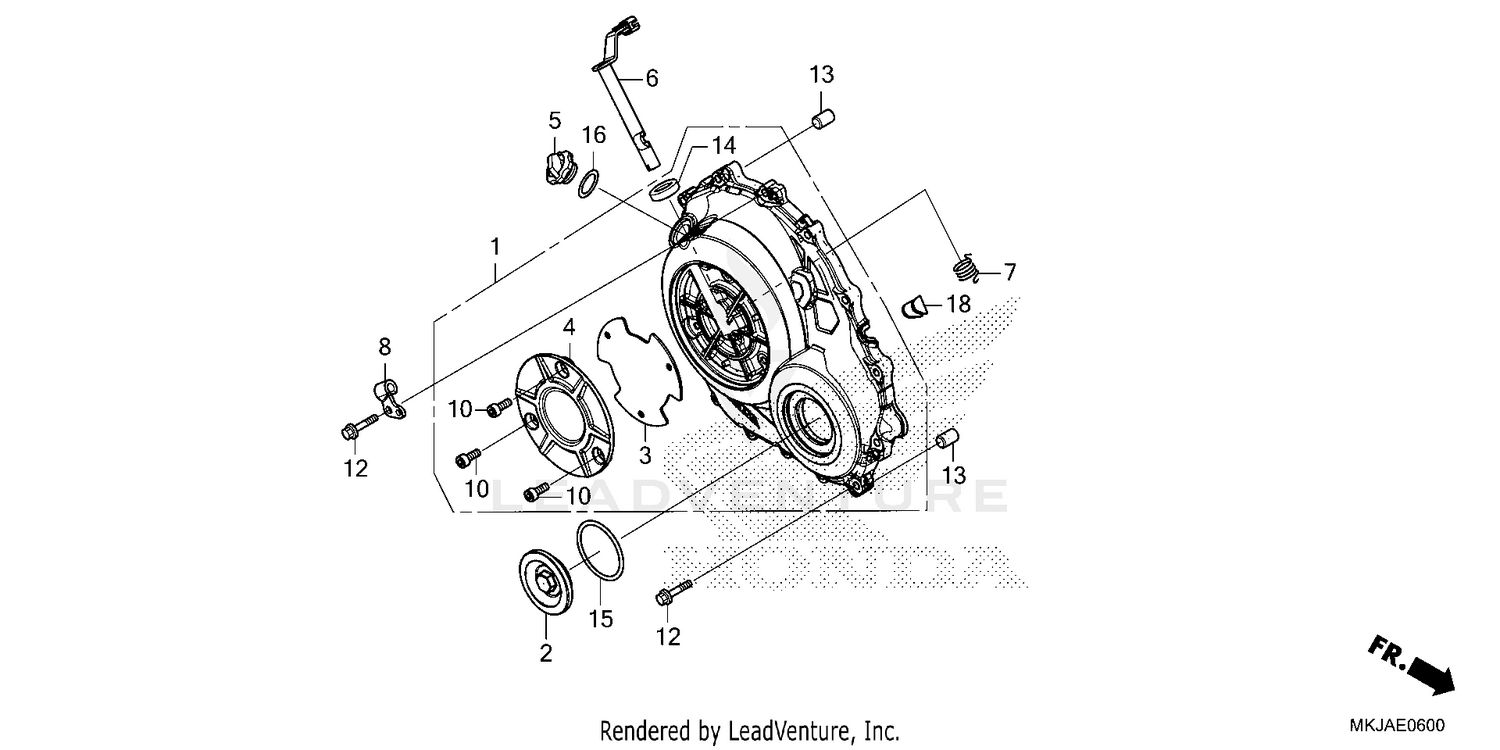

Right Crankcase Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, R.
11330-MKJ-D00
|
$358.15 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP (45MM)
11332-MFN-D00
|
$22.29 | ||
|
Available to order. Add to View Price |
|||
|
#3
RUBBER, R. COVER
11334-MKJ-D00
|
$13.93 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER, CLUTCH
11335-MKJ-D00
|
$89.27 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP, OIL FILLER
15611-MKJ-D00
|
$11.09 | ||
|
Available to order. Add to View Price |
|||
|
#6
LEVER, CLUTCH
22810-MKJ-E50
|
$65.35 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING, CLUTCH LEVER
22815-MFL-000
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#8
RECEIVER, CLUTCH CABLE
22821-MKJ-D00
|
$6.13 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE SOCKET (6X16)
90001-MKJ-D00
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE (6X28) (S-NSHF)
90028-GHB-690
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN, DOWEL (10X16) (Honda Code 3906971)
90701-MV9-670
|
$5.40 | ||
|
Available to order. Add to View Price |
|||
|
#14
OIL SEAL (12X18X5) (ARAI)
91204-KK0-003
|
$6.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
O-RING (48.1X3.6) (ARAI)
91301-ML7-003
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
|
#16
O-RING (18X3) (ARAI)
91307-KF0-003
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#18
GROMMET
32973-MKJ-E50
|
$5.22 | ||
|
Available to order. Add to View Price |
|||
