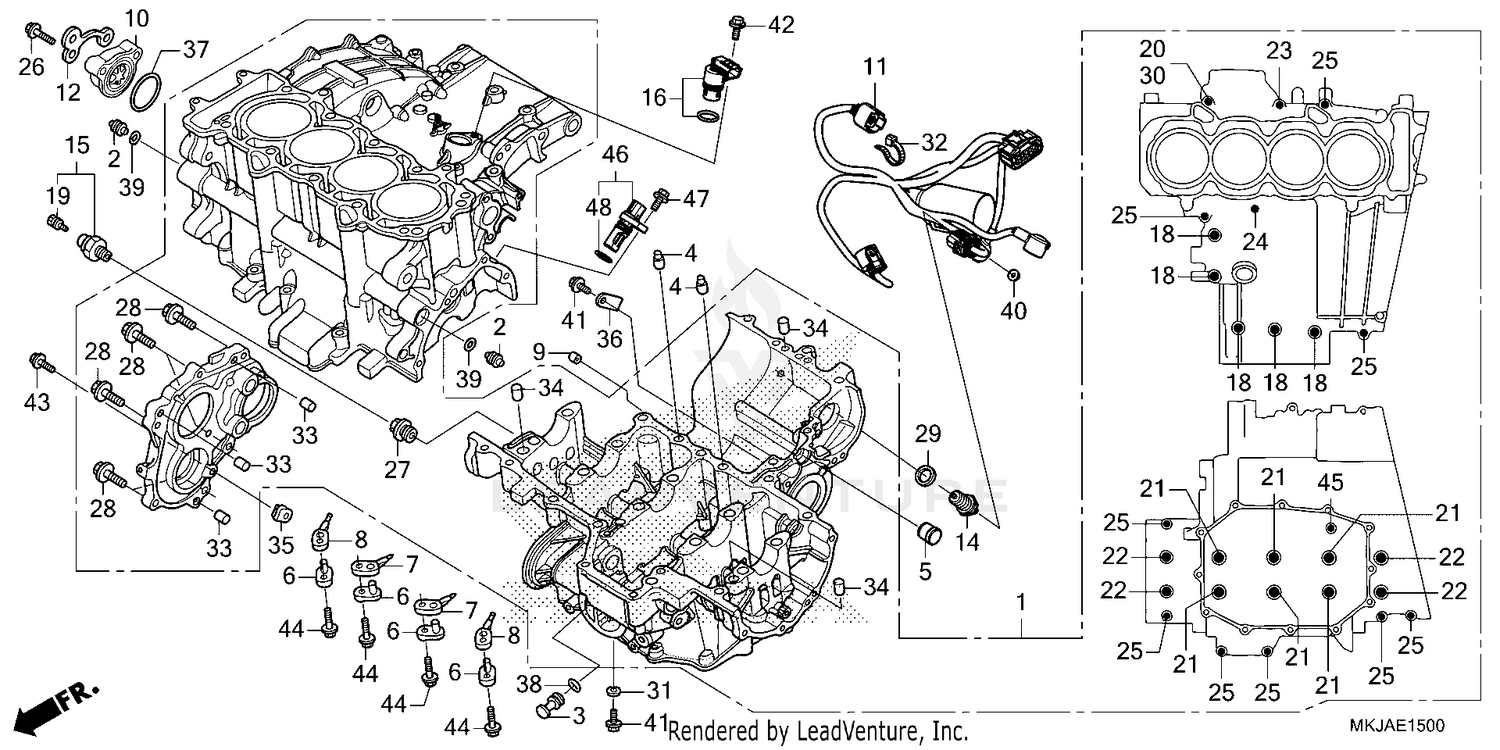

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE SET
11000-MKJ-E50
|
$3,470.25 | ||
|
Available to order. Add to View Price |
|||
|
#2
PLUG, SEALING
11103-MEL-000
|
$9.55 | ||
|
Available to order. Add to View Price |
|||
|
#3
PLUG, OIL COOLER
11104-MEL-000
|
$7.87 | ||
|
Available to order. Add to View Price |
|||
|
#4
ORIFICE (1.6MM)
11105-MEL-000
|
$8.78 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLUG, CRANKCASE
11105-MKJ-D01
|
$24.45 | ||
|
Available to order. Add to View Price |
|||
|
#6
BUSH, ORIFICE
11145-MEL-000
|
$27.51 | ||
|
Available to order. Add to View Price |
|||
|
#7
ORIFICE A (#100)
11146-MEL-000
|
$26.18 | ||
|
Available to order. Add to View Price |
|||
|
#8
ORIFICE B (#100)
11147-MEL-000
|
$26.18 | ||
|
Available to order. Add to View Price |
|||
|
#9
ORIFICE (1.4MM)
11206-MEL-000
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#10
FINDER, OIL LEVEL
11360-MFN-D00
|
$34.96 | ||
|
Available to order. Add to View Price |
|||
|
#11
SUB-HARNESS, ENGINE
32101-MKJ-E50
|
$94.44 | ||
|
Available to order. Add to View Price |
|||
|
#12
GUIDE, OIL PRESSURE SWITCH WIRE
32114-MFN-D00
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#14
SWITCH ASSY., NEUTRAL
35600-MKF-D41
|
$24.71 | ||
|
Available to order. Add to View Price |
|||
|
#15
SWITCH ASSY., OIL PRESSURE (DENSO)
37240-P13-013
|
$53.92 | ||
|
Available to order. Add to View Price |
|||
|
#16
SENSOR ASSY., SPEED
37700-MFL-761
|
$84.91 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (8X55)
90001-MFA-D00
|
$2.71 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT-WASHER (4X8) (DENSO)
90002-PA6-003
|
$6.13 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, SPECIAL (7X42.5)
90004-MFA-D00
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE (9X105)
90015-MEL-003
|
$12.93 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE (9X125)
90016-MEL-003
|
$12.93 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE (7X60)
90017-MFA-D00
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE (7X80)
90018-MFA-D00
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, FLANGE (7X40)
90019-MFA-D00
|
$2.31 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE (6X28) (S-NSHF)
90028-GHB-690
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, SEALING (22MM)
90048-MFL-000
|
$10.85 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, FLANGE (8X30)
90133-MEL-000
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, NEUTRAL
90443-MJ6-000
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, SEALING (7MM)
90447-KE1-000
|
$3.04 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
WASHER, SEALING (6.5MM)
90463-ML7-000
|
$3.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#32
BAND, WIRE (Honda Code 2687788)
90650-KV6-003
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#33
PIN, DOWEL (8X14)
90701-MEL-000
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#34
PIN, DOWEL (10X16) (Honda Code 3906971)
90701-MV9-670
|
$5.40 | ||
|
Available to order. Add to View Price |
|||
|
#35
PLATE A, BEARING SETTING
91011-MEL-000
|
$6.38 | ||
|
Available to order. Add to View Price |
|||
|
#36
PLATE B, BEARING SETTING
91012-MEL-000
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#37
O-RING (32X1.7)
91301-MEE-003
|
$2.16 | ||
|
Available to order. Add to View Price |
|||
|
#38
O-RING (11.8X2.4)
91302-ZE9-000
Superseded by 91302-ZE9-003
|
$3.22 | ||
|
Available to order. Add to View Price |
|||
|
#38
O-RING (11.8X2.4)
91302-ZE9-003
|
$3.22 | ||
|
Unavailable |
|||
|
#39
O-RING (13.8X2.5)
91303-377-000
|
$4.29 | ||
|
Available to order. Add to View Price |
|||
|
#40
NUT, FLANGE (4MM)
94050-04000
|
$1.28 | ||
|
Available to order. Add to View Price |
|||
|
#41
BOLT, FLANGE (6X14) (Honda Code 2410884)
95701-06014-00
|
$1.15 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#42
BOLT, FLANGE (6X18) BOLT, HEX. (6X18)
95701-06018-00
|
$1.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#43
BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22)
95701-06020-00
|
$1.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#44
BOLT, FLANGE (6X25)
95701-06025-00
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#45
BOLT, FLANGE (8X40)
95701-08040-00
|
$1.44 | ||
|
Available to order. Add to View Price |
|||
|
#46
SENSOR ASSY., CRANK
37500-K26-G81
Superseded by 37500-K26-G82
|
$97.98 | ||
|
Unavailable |
|||
|
#46
SENSOR ASSY., CRANK
37500-K26-G82
|
$97.98 | ||
|
Unavailable |
|||
|
#47
BOLT, FLANGE (6X18) (NSHF)
90017-GHB-640
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#48
O-RING
91333-PNC-006
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
