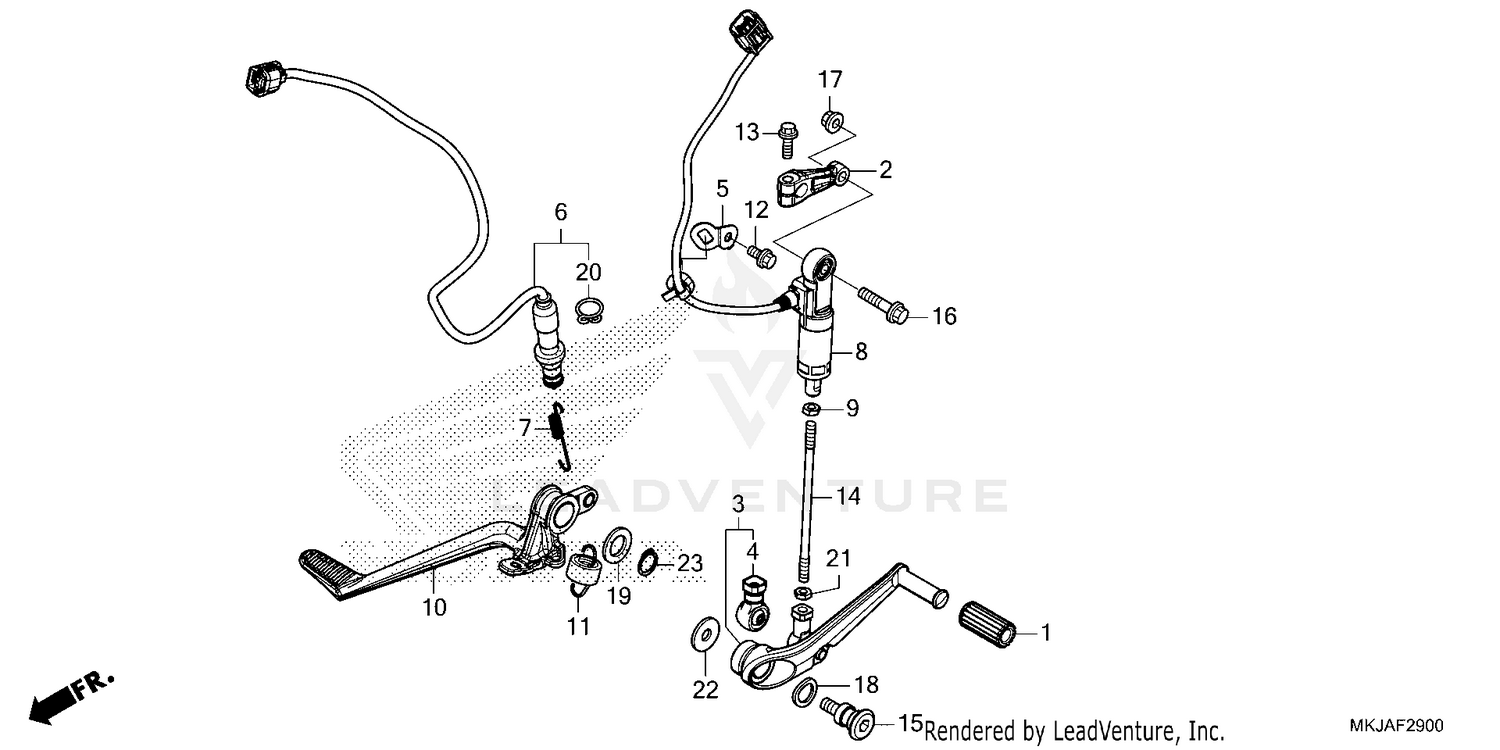

Pedal Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RUBBER, GEARSHIFT PEDAL
24705-MR7-000
|
$4.73 | ||
|
Available to order. Add to View Price |
|||
|
#2
ARM, GEARSHIFT
24711-MKF-D60
|
$37.53 | ||
|
Available to order. Add to View Price |
|||
|
#3
PEDAL, GEARSHIFT
24720-MKJ-E60
|
$113.78 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER, DUST
24724-MBW-D21
|
$8.76 | ||
|
Available to order. Add to View Price |
|||
|
#5
STAY, STROKE SENSOR
32214-MKJ-D10
|
$4.11 | ||
|
Unavailable |
|||
|
#6
SWITCH, RR. STOP
35350-MKJ-E51
|
$38.60 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING, STOP SWITCH
35357-MCH-000
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#8
SENSOR ASSY., STROKE
36390-MKJ-E61
|
$1,348.92 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, HEX. (6MM) (LEFT HAND THREAD)
45423-KA4-700
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#10
PEDAL, RR. BRAKE
46500-MKJ-E60
|
$156.69 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING, BRAKE PEDAL
46515-MKJ-E50
|
$9.13 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE (6X12)
90026-GHB-620
|
$2.15 | ||
|
Unavailable |
|||
|
#13
BOLT, FLANGE (6X20)
90030-GHB-660
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, TIE ROD (SOURCE: VINTAGE PARTS INC.)
90065-ML0-900
|
$13.82 | ||
|
Unavailable |
|||
|
#15
BOLT, CHANGE PIVOT
90113-MCF-000
|
$10.00 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE (7X30)
90115-MKF-D60
|
$3.58 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, FLANGE (7MM)
90202-KV3-000
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, CHANGE PEDAL WAVE
90505-MBW-000
|
$5.05 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER (15.2X25)
90557-230-000
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLIP, SWITCH COVER
90601-KAF-003
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT, HEX. (6MM) NUT-WASHER (6MM)
94002-06080-0S
|
$1.37 | ||
|
Unavailable |
|||
|
#22
WASHER, PLAIN (8MM)
94103-08700
|
$0.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
CIRCLIP (OUTER) (15MM)
94511-15000
|
$0.78 | ||
|
Available to order. Add to View Price |
|||
