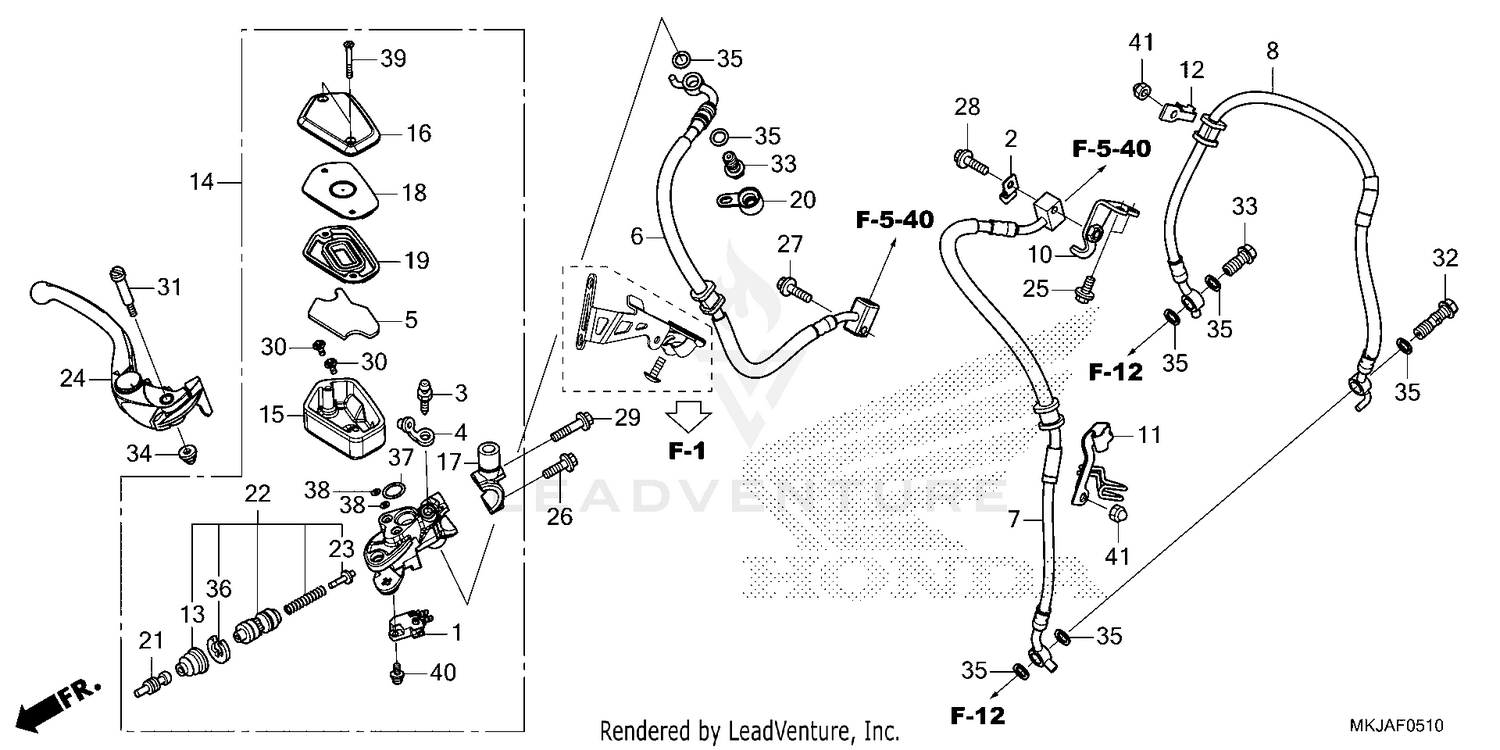

Front Brake Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SWITCH ASSY., FR. STOP
35340-MGS-D31
|
$22.42 | ||
|
Available to order. Add to View Price |
|||
|
#2
CLAMP B, SENSOR WIRE
38514-MEJ-J00
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW, BLEEDER (NISSIN)
43352-568-003
|
$9.98 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAP, BLEEDER
43353-461-771
|
$6.35 | ||
|
Available to order. Add to View Price |
|||
|
#5
FLOAT
43523-MKJ-D01
|
$3.84 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOSE A, FR. BRAKE
45125-MKJ-E51
|
$63.95 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOSE D, FR. BRAKE
45128-MKJ-D01
|
$65.11 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOSE E, FR. BRAKE
45129-MKJ-D01
|
$51.93 | ||
|
Available to order. Add to View Price |
|||
|
#10
STAY B, FR. BRAKE HOSE
45156-MKJ-D00
|
$10.75 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLAMP, L. FR. BRAKE HOSE
45157-MKJ-D00
|
$9.33 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLAMP A, FR. BRAKE HOSE
45158-MFL-D00
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOOT
45504-MCF-006
|
$13.56 | ||
|
Available to order. Add to View Price |
|||
|
#14
MASTER CYLINDER SUB-ASSY., FR.
45510-MKJ-D01
|
$359.76 | ||
|
Available to order. Add to View Price |
|||
|
#15
TANK, OIL
45511-MKJ-D01
|
$21.33 | ||
|
Available to order. Add to View Price |
|||
|
#16
CAP
45513-MKJ-D01
|
$37.33 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOLDER, MASTER CYLINDER
45518-MFN-D01
|
$15.04 | ||
|
Available to order. Add to View Price |
|||
|
#18
PLATE, DIAPHRAGM
45518-MGE-006
|
$9.20 | ||
|
Available to order. Add to View Price |
|||
|
#19
DIAPHRAGM
45520-MGE-006
|
$17.31 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOOT, MASTER CYLINDER
45522-MFN-D00
|
$5.25 | ||
|
Available to order. Add to View Price |
|||
|
#21
ROD, PUSH
45525-MEL-016
|
$17.80 | ||
|
Available to order. Add to View Price |
|||
|
#22
MASTER CYLINDER SET
45530-MFN-D01
|
$59.65 | ||
|
Available to order. Add to View Price |
|||
|
#23
GUIDE, SPRING
46140-MEL-006
|
$5.07 | ||
|
Available to order. Add to View Price |
|||
|
#24
LEVER, R. HANDLE
53170-MKJ-E61
|
$75.42 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, FLANGE (6X12)
90021-GHB-620
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE (6X22)
90021-GHB-670
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, FLANGE (6X25)
90021-GHB-680
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, FLANGE (6X28)
90021-GHB-690
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, FLANGE (6X32)
90021-GHB-710
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#30
SCREW, TRIPLE (4X11)
90101-MR7-006
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, HANDLE LEVER
90114-MCF-006
|
$7.31 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, OIL (10X34)
90145-MR8-014
|
$8.31 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, OIL (10X22) (SAGA)
90145-MS9-612
|
$9.20 | ||
|
Available to order. Add to View Price |
|||
|
#34
NUT, CAP (6MM)
90202-ZV0-000
|
$3.66 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER, OIL BOLT
90545-300-000
|
$5.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
CIRCLIP
90651-MCF-006
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#37
O-RING (14.8X2.4)
91212-422-006
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#38
O-RING (5.8X1.9) (NISSIN)
91355-MG9-006
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#39
SCREW, FLAT (4X35)
93600-04035-1G
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#40
SCREW-WASHER (4X12)
93893-04012-07
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#40
SCREW-WASHER (4X12)
93893-04012-17
Superseded by 93893-04012-07
|
$1.40 | ||
|
Unavailable |
|||
|
#41
NUT, CAP (6MM)
94021-06070-0S
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
