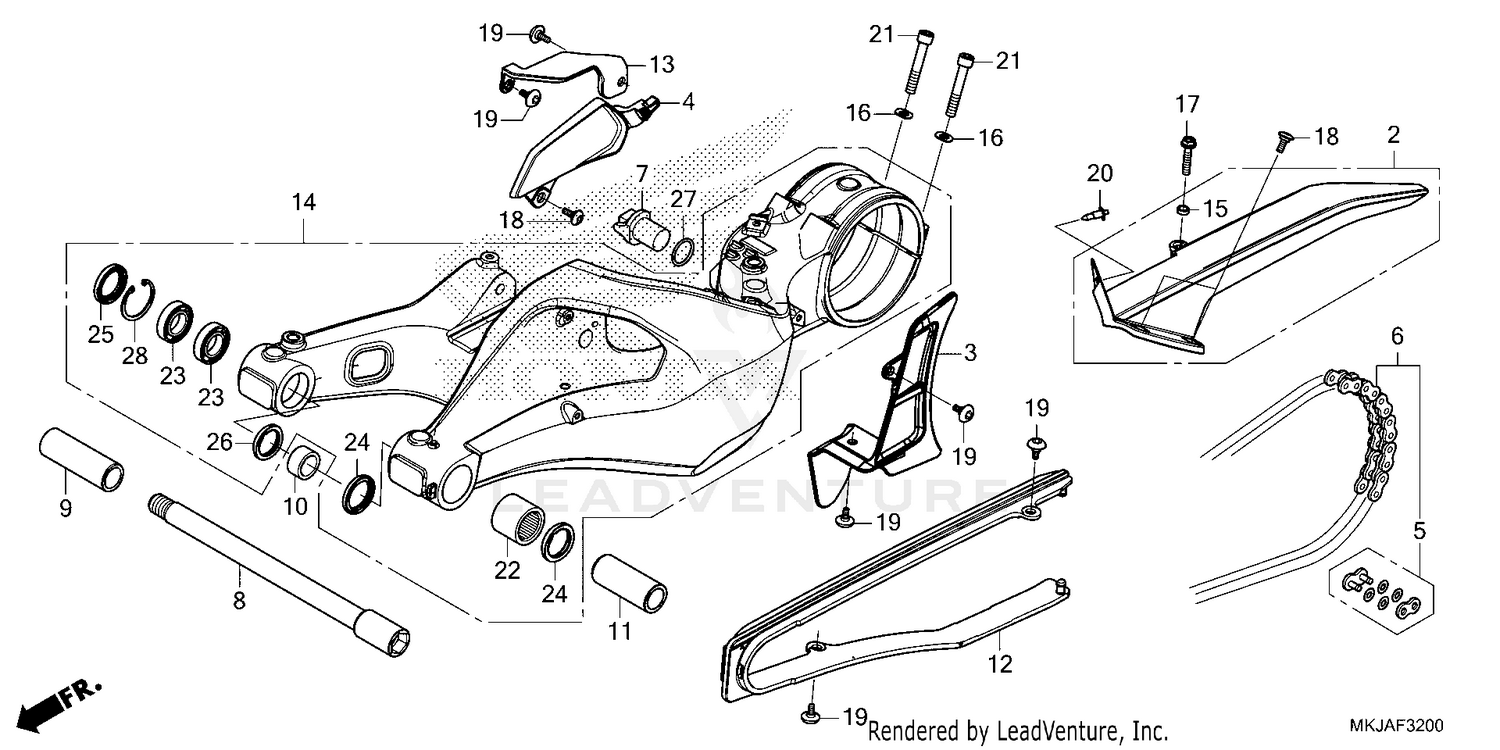

Swingarm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#2
CASE A, DRIVE CHAIN
40510-MKJ-D00
|
$54.80 | ||
|
Available to order. Add to View Price |
|||
|
#3
GUIDE, RR. BRAKE AIR
40515-MKJ-D00
|
$31.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
CASE B, DRIVE CHAIN
40520-MKJ-D00
|
$24.64 | ||
|
Available to order. Add to View Price |
|||
|
#5
MASTER LINK (RK JAPAN)
40535-MKF-D42
|
$13.47 | ||
|
Available to order. Add to View Price |
|||
|
#6
CHAIN, DRIVE (RK525ROZ7-120LJFZ) (RK JAPAN) (STANDARD LINK 116L)
40540-MKF-D42
|
$262.09 | ||
|
Available to order. Add to View Price |
|||
|
#7
STOPPER, TORQUE LINK
43433-KV3-951
|
$13.89 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, SWINGARM PIVOT
52101-MKJ-E50
|
$54.98 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, SWINGARM PIVOT
52102-MKJ-D00
|
$44.73 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR B, PIVOT DISTANCE
52142-MER-D00
|
$24.98 | ||
|
Available to order. Add to View Price |
|||
|
#11
COLLAR, PIVOT DISTANCE
52143-MER-D00
|
$45.13 | ||
|
Available to order. Add to View Price |
|||
|
#12
SLIDER, CHAIN
52170-MKJ-D00
|
$95.22 | ||
|
Available to order. Add to View Price |
|||
|
#13
GUIDE, CHAIN
52180-MKJ-D00
|
$46.87 | ||
|
Available to order. Add to View Price |
|||
|
#14
SWINGARM SUB, RR.
52200-MKJ-E60
|
$1,352.38 | ||
|
Available to order. Add to View Price |
|||
|
#15
COLLAR, FR. FENDER
61102-MGS-D30
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER (8MM)
88129-MBB-000
|
$3.82 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (6X30)
90031-GHB-700
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, SPECIAL (5X14)
90102-MKA-D80
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, SPECIAL (5X12)
90111-MFN-D00
|
$1.98 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLIP, BUMPER SEAL
90116-SP0-003
|
$5.93 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
BOLT, SOCKET (8X50)
90109-MKJ-E50
|
$7.27 | ||
|
Available to order. Add to View Price |
|||
|
#22
BEARING, NEEDLE
91071-MR7-003
|
$31.11 | ||
|
Available to order. Add to View Price |
|||
|
#23
BEARING, RADIAL BALL (20X37X9)
91054-MGS-D31
|
$11.44 | ||
|
Available to order. Add to View Price |
|||
|
#24
DUST SEAL (28X37X4)
91202-MR7-003
|
$7.98 | ||
|
Available to order. Add to View Price |
|||
|
#25
DUST SEAL (27X37X5)
91257-KY4-900
|
$6.13 | ||
|
Available to order. Add to View Price |
|||
|
#26
DUST SEAL (27X34X4)
91261-KZ3-861
|
$9.80 | ||
|
Available to order. Add to View Price |
|||
|
#27
O-RING (21.8X2.4) (Honda Code 3793031)
91355-759-003
|
$2.18 | ||
|
Available to order. Add to View Price |
|||
|
#28
CIRCLIP (INNER) (37MM)
94520-37000
|
$2.28 | ||
|
Available to order. Add to View Price |
|||
