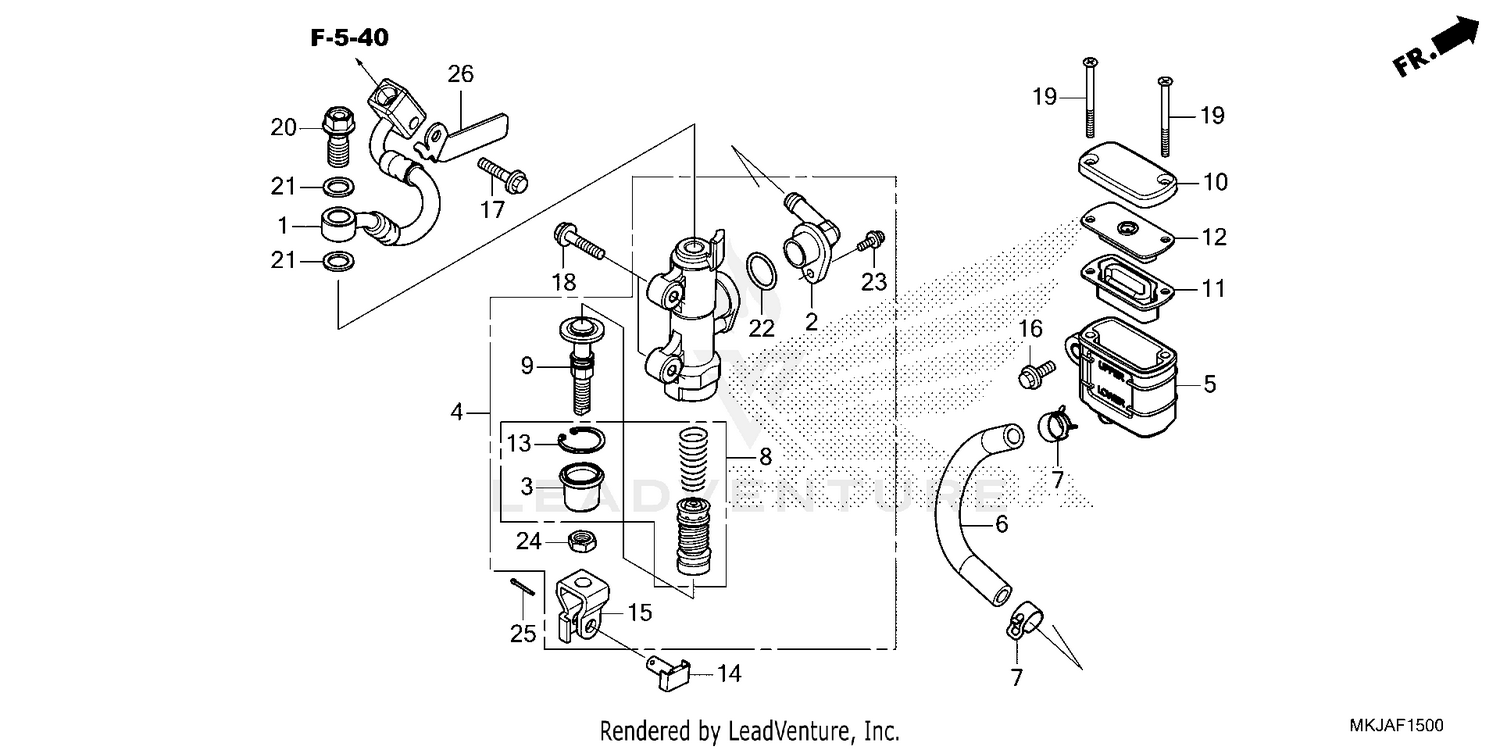

Rear Brake Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOSE A, RR. BRAKE
43310-MKJ-D01
|
$42.91 | ||
|
Available to order. Add to View Price |
|||
|
#2
CONNECTOR, MASTER CYLINDER
43503-MFN-D01
|
$7.78 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOOT
43504-MB2-006
|
$12.16 | ||
|
Available to order. Add to View Price |
|||
|
#4
MASTER CYLINDER SUB-ASSY., RR.
43510-MKJ-D01
|
$217.44 | ||
|
Available to order. Add to View Price |
|||
|
#5
CUP, OIL (NISSIN)
43511-KW7-881
|
$20.71 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOSE, RR. MASTER CYLINDER
43512-MKJ-D00
|
$14.58 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLAMP, MASTER CYLINDER OIL HOSE
43514-KS6-701
|
$15.89 | ||
|
Available to order. Add to View Price |
|||
|
#8
PISTON SET, MASTER CYLINDER (NISSIN)
43520-MG9-315
|
$68.67 | ||
|
Available to order. Add to View Price |
|||
|
#9
ROD, PUSH
43530-KV3-701
|
$22.65 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAP, MASTER CYLINDER
45513-K33-D01
|
$18.82 | ||
|
Available to order. Add to View Price |
|||
|
#11
DIAPHRAGM
45520-GW0-911
|
$9.15 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLATE, DIAPHRAGM
45521-GW0-911
|
$7.20 | ||
|
Available to order. Add to View Price |
|||
|
#13
CIRCLIP
46182-MEL-D21
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIN, BRAKE ROD
46503-MAL-000
|
$6.85 | ||
|
Available to order. Add to View Price |
|||
|
#15
JOINT, BRAKE ROD
46504-MAL-601
|
$15.31 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE (6X14)
90013-GHB-620
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (6X25)
90021-GHB-680
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE (6X25)
90109-MKJ-D00
|
$2.96 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, FLAT (4X45)
90140-KZZ-901
|
$7.65 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, OIL (10X22) (SAGA)
90145-MS9-612
|
$9.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
WASHER, OIL BOLT
90545-300-000
|
$5.02 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
O-RING (14.8X2.4)
91212-422-006
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW-WASHER (4X12)
93893-04012-07
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW-WASHER (4X12)
93893-04012-17
Superseded by 93893-04012-07
|
$1.40 | ||
|
Unavailable |
|||
|
#24
NUT,HEX 8MM
94002-080000S
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#25
PIN, COTTER (2.0X12)
94201-20120
|
$1.08 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
STAY, HARNESS (RR)
32217-MKJ-D00
|
$4.29 | ||
|
Available to order. Add to View Price |
|||
