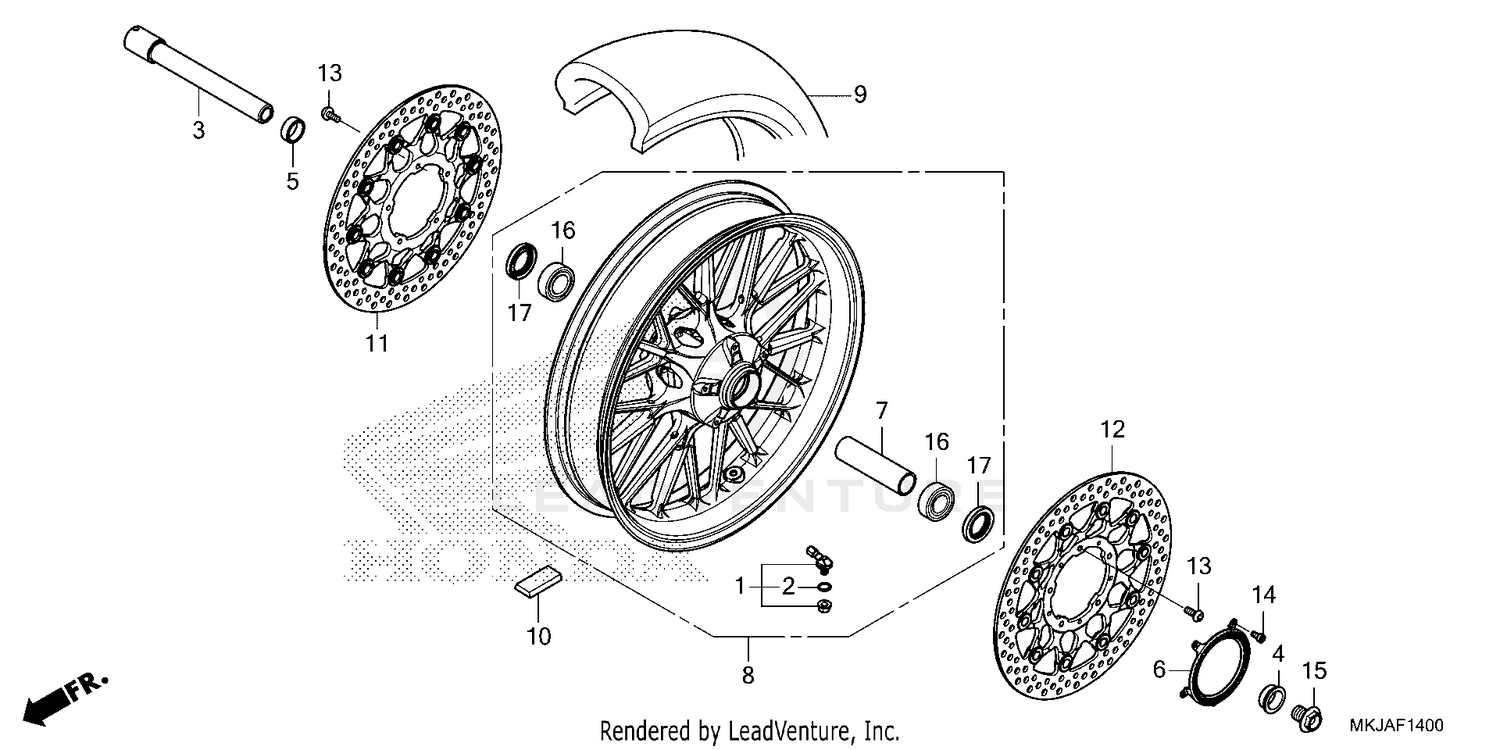

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
VALVE ASSY., CLAMP IN
42755-MKA-D81
|
$20.09 | ||
|
Available to order. Add to View Price |
|||
|
#2
O-RING
42758-MKA-D81
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#3
AXLE, FR. WHEEL
44301-MKJ-E50
|
$90.87 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR, R. FR. WHEEL SIDE
44311-MEL-D20
|
$14.78 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR, L. FR. WHEEL SIDE
44312-MFL-000
|
$9.85 | ||
|
Available to order. Add to View Price |
|||
|
#6
RING, FR. PULSER (TYPE2)
44515-MKF-D40ZB
|
$37.45 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR, FR. WHEEL DISTANCE
44620-MCJ-000
|
$25.55 | ||
|
Available to order. Add to View Price |
|||
|
#8
WHEEL SUB (TYPE1)
44650-MKJ-E60ZA
|
$1,050.95 | ||
|
Available to order. Add to View Price |
|||
|
#9
TIRE (120/70ZR17)
44711-MKJ-E51
|
$196.65 | ||
|
Available to order. Add to View Price |
|||
|
#9
TIRE (120/70ZR17)
44711-MKJ-E52
|
$196.65 | ||
|
Available to order. Add to View Price |
|||
|
#10
WEIGHT, BALANCE (10G)
44721-MGH-H21
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#10
WEIGHT, BALANCE (15G)
44722-MGH-H21
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#10
WEIGHT, BALANCE (20G)
44723-MGH-H21
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#11
DISK, R. FR. BRAKE
45120-MKJ-E51
|
$621.38 | ||
|
Available to order. Add to View Price |
|||
|
#12
DISK, L. FR. BRAKE
45220-MKJ-E51
|
$621.38 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT (6X17)
90106-MJM-D30
|
$3.04 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, TORX (5X10)
90131-MJM-D30
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FR. AXLE
90305-MEL-D20
|
$14.42 | ||
|
Available to order. Add to View Price |
|||
|
#16
BEARING, RADIAL BALL (6005)
91052-MCF-003
|
$18.84 | ||
|
Available to order. Add to View Price |
|||
|
#17
DUST SEAL (31X47X7)
91253-MFL-003
|
$7.96 | ||
|
Available to order. Add to View Price |
|||
