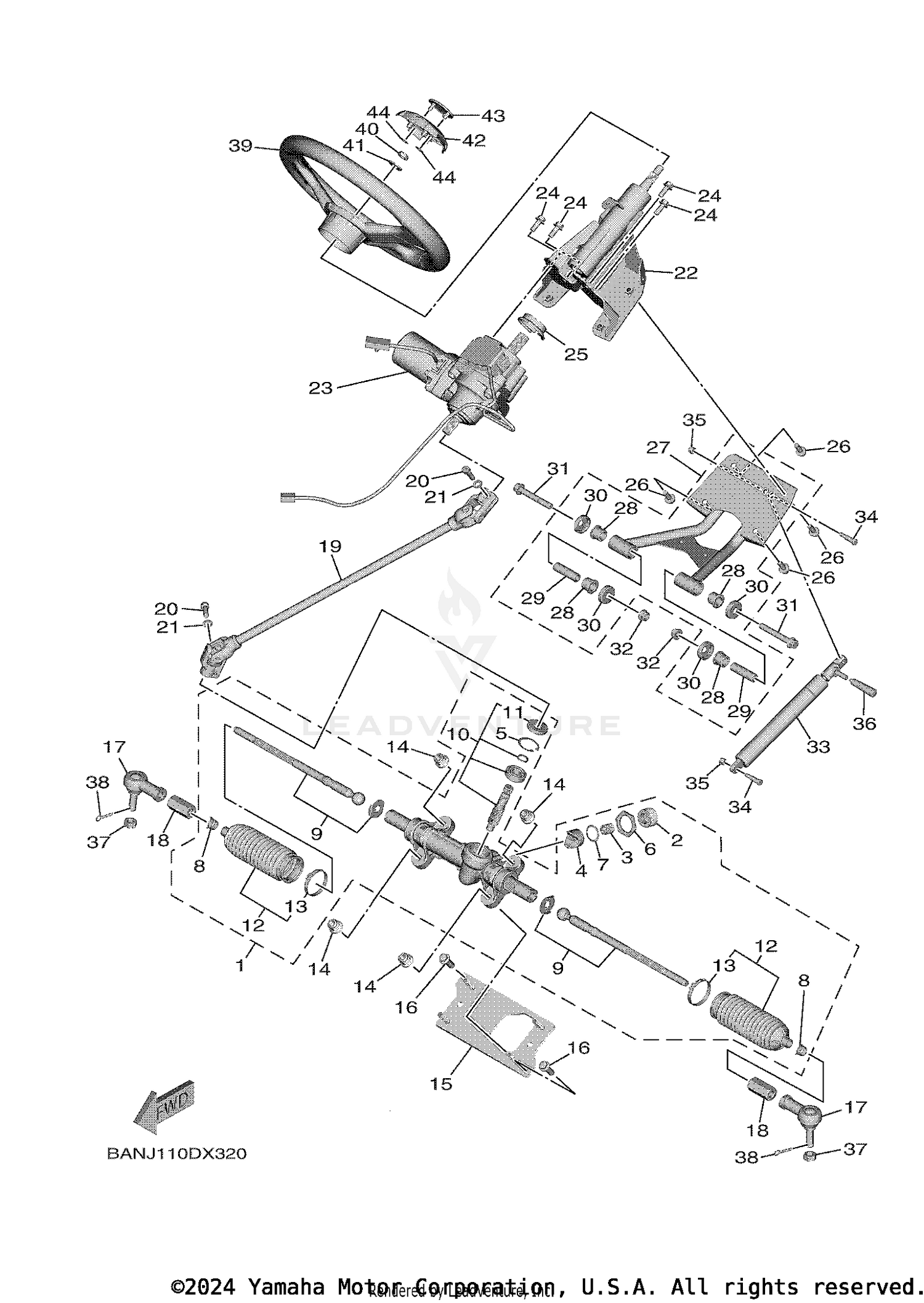

Steering Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STEERING ASSY
BG4-F3400-01-00
Superseded by BG4-F3400-02-00
|
$163.99 | ||
|
Unavailable |
|||
|
#2
COVER, ADJUST
1XD-F387G-00-00
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING, PRESSURE
1XD-F387K-00-00
|
$1.90 | ||
|
Available to order. Add to View Price |
|||
|
#4
PAD, PRESSURE
1XD-F387F-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
RING, STOPPER
1XD-F387J-00-00
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#6
LOCK ASSY
1XD-F178K-00-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, FELT
1XD-F3165-00-00
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLIP
1XD-F3447-00-00
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
|
#9
RACK END SET
BG4-F38H0-00-00
|
$93.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
STEERING PINION SET
1XD-F38G0-00-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SEAL
1XD-F3844-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
SEAL SET, 1
1XD-F1208-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BAND
1XD-F3489-00-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, SELF-LOCKING
90185-10011-00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#15
BRACKET, STEERING
BKK-F3868-01-00
|
$10.49 | ||
|
Unavailable |
|||
|
#16
BOLT, FLANGE
95812-06012-00
Superseded by 95817-06012-00
|
$1.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
JOINT, UNIVERSAL 1
B42-23841-00-00
|
$105.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT 1
2PG-F3833-00-00
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#19
STEERING SHAFT ASS
2MB-F3840-00-00
Superseded by 2MB-F3840-01-00
|
$52.99 | ||
|
Unavailable |
|||
|
#20
BOLT
91312-08025-00
Superseded by 91317-08025-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, PLATE
90201-083P5-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
COLUMN, STEERING 2
BG4-23813-01-00
|
$413.99 | ||
|
Unavailable |
|||
|
#23
POWER STRG. ACTUATOR ASSY
2HC-238B0-06-00
|
$2,842.99 | ||
|
Unavailable |
|||
|
#24
BOLT, FLANGE DEEP RE
95D32-08020-00
|
$0.60 | ||
|
Available to order. Add to View Price |
|||
|
#25
COVER, DUST
2MB-2384L-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE DEEP RE
95D32-08020-00
|
$0.60 | ||
|
Unavailable |
|||
|
#27
TOP MOUNT COMP.
BG4-F33B0-02-00
|
$66.99 | ||
|
Unavailable |
|||
|
#28
BUSH, SOLID
90381-15088-00
|
$23.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
COLLAR
90387-10111-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
COVER, THRUST 1
1UY-23517-01-00
|
$7.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
BOLT, FLANGE
90105-10267-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
NUT, S/L FLANGE
95602-10200-00
|
$2.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
SPRING, DAMPER
BG4-F3855-01-00
|
$80.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT
90109-06255-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#35
NUT, NYLON
95702-06300-00
Superseded by 95707-06300-00
|
$3.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
HANDLE
BG4-F4812-01-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
NUT, CASTLE
90171-12001-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#38
PIN, COTTER
91402-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#39
WHEEL, STEERING
2HC-F3838-02-00
|
$133.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
NUT, SELF-LOCKING
90185-12007-00
|
$11.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#41
WASHER, PLAIN
92902-12200-00
Superseded by 92990-12200-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#42
COVER, STEERING
2HC-F3818-00-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#43
TUNING FORK MARK
1XD-F175B-01-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#44
NUT, SPRING
90183-06071-00
|
$0.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
