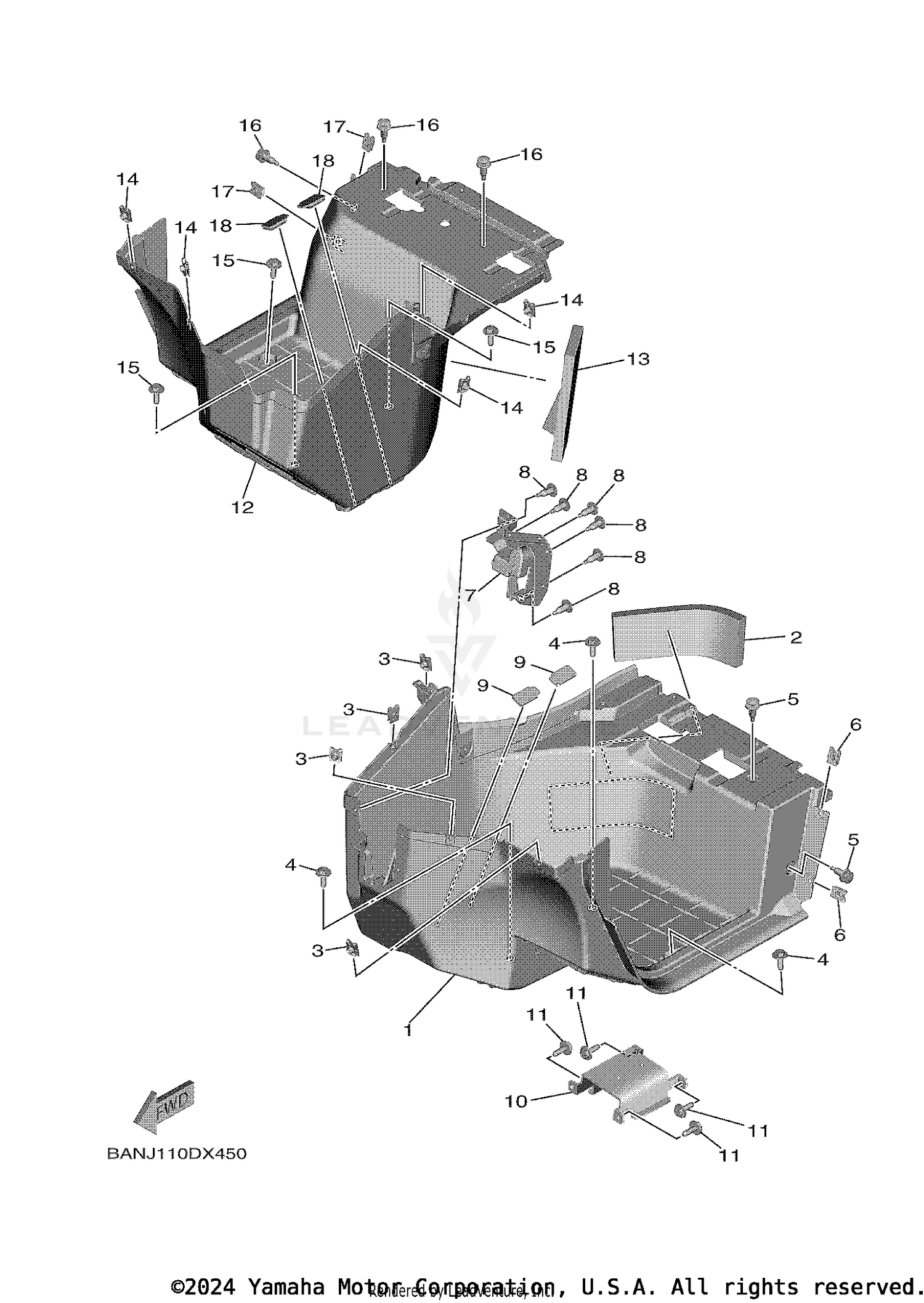

Stand & Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FOOTREST 1
BG4-F7411-00-00
|
$146.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
INSULATOR, SIDE CO
B8K-F174T-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT, SPRING
90183-062A1-00
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, SPECIAL 1
JW1-K6179-01-00
|
$1.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
RIVET
90269-07805-00
|
$1.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
NUT, SPRING
90183-062A1-00
|
$2.20 | ||
|
Unavailable |
|||
|
#7
COVER, DUST
BG4-F7286-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
RIVET
90269-07805-00
|
$1.75 | ||
|
Unavailable |
|||
|
#9
PLUG, HOLE
BG4-F312G-00-00
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
|
#10
BRACKET, FOOTREST
B4J-F7452-00-00
|
$10.49 | ||
|
Unavailable |
|||
|
#11
BOLT, SPECIAL 1
90119-06868-00
Superseded by JW1-K6179-01-00
|
$1.75 | ||
|
Unavailable |
|||
|
#12
FOOTREST 2
BG4-F7421-01-00
|
$100.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
INSULATOR, SIDE CO
B8K-F174T-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#14
NUT, SPRING
90183-062A1-00
|
$2.20 | ||
|
Unavailable |
|||
|
#15
BOLT, SPECIAL 1
JW1-K6179-01-00
|
$1.75 | ||
|
Unavailable |
|||
|
#16
RIVET
90269-07805-00
|
$1.75 | ||
|
Unavailable |
|||
|
#17
NUT, SPRING
90183-062A1-00
|
$2.20 | ||
|
Unavailable |
|||
|
#18
PLUG, HOLE
BG4-F312G-00-00
|
$2.10 | ||
|
Unavailable |
|||
