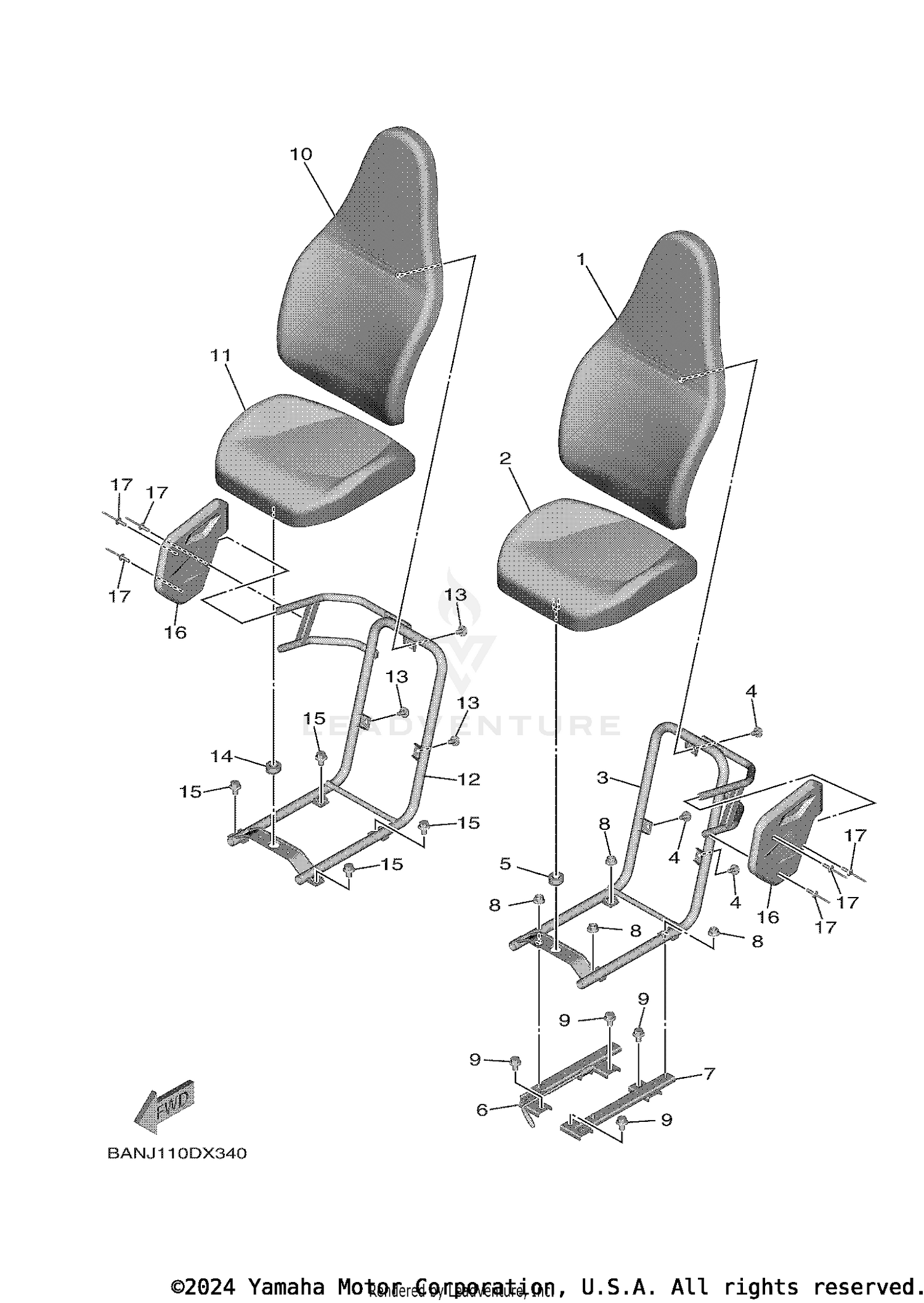

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEAT BACK ASSY
BAR-F4790-40-00
|
$749.99 | ||
|
Unavailable |
|||
|
#2
SEAT ASSY 2
BAR-K8420-40-00
|
$517.99 | ||
|
Unavailable |
|||
|
#3
FRAME, SEAT 1
B4J-F473C-01-00
Superseded by B4J-F473C-02-00
|
$169.99 | ||
|
Unavailable |
|||
|
#4
BOLT,HEX. SOCKET BUT
90111-06180-00
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#5
GROMMET
1XD-F4742-00-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#6
ADJUSTER ASSY
B4J-F7270-01-00
|
$66.99 | ||
|
Unavailable |
|||
|
#7
ADJUSTER ASSY
B4J-F7260-01-00
|
$50.99 | ||
|
Unavailable |
|||
|
#8
NUT, SELF-LOCKING
95602-08200-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE
95812-08012-00
Superseded by 95817-08012-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SEAT BACK ASSY
BAR-F4790-40-00
|
$749.99 | ||
|
Unavailable |
|||
|
#11
SEAT ASSY 2
BAR-K8420-40-00
|
$517.99 | ||
|
Unavailable |
|||
|
#12
FRAME, SEAT 2
B4J-F473D-01-00
Superseded by B4J-F473D-02-00
|
$162.99 | ||
|
Unavailable |
|||
|
#13
BOLT,HEX. SOCKET BUT
90111-06180-00
|
$2.20 | ||
|
Unavailable |
|||
|
#14
GROMMET
1XD-F4742-00-00
|
$4.00 | ||
|
Unavailable |
|||
|
#15
BOLT, FLANGE
95812-08012-00
Superseded by 95817-08012-00
|
$5.49 | ||
|
Unavailable |
|||
|
#16
COVER
B4J-F117F-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
RIVET, BLIND (4.9X16.1)
90267-49152-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
