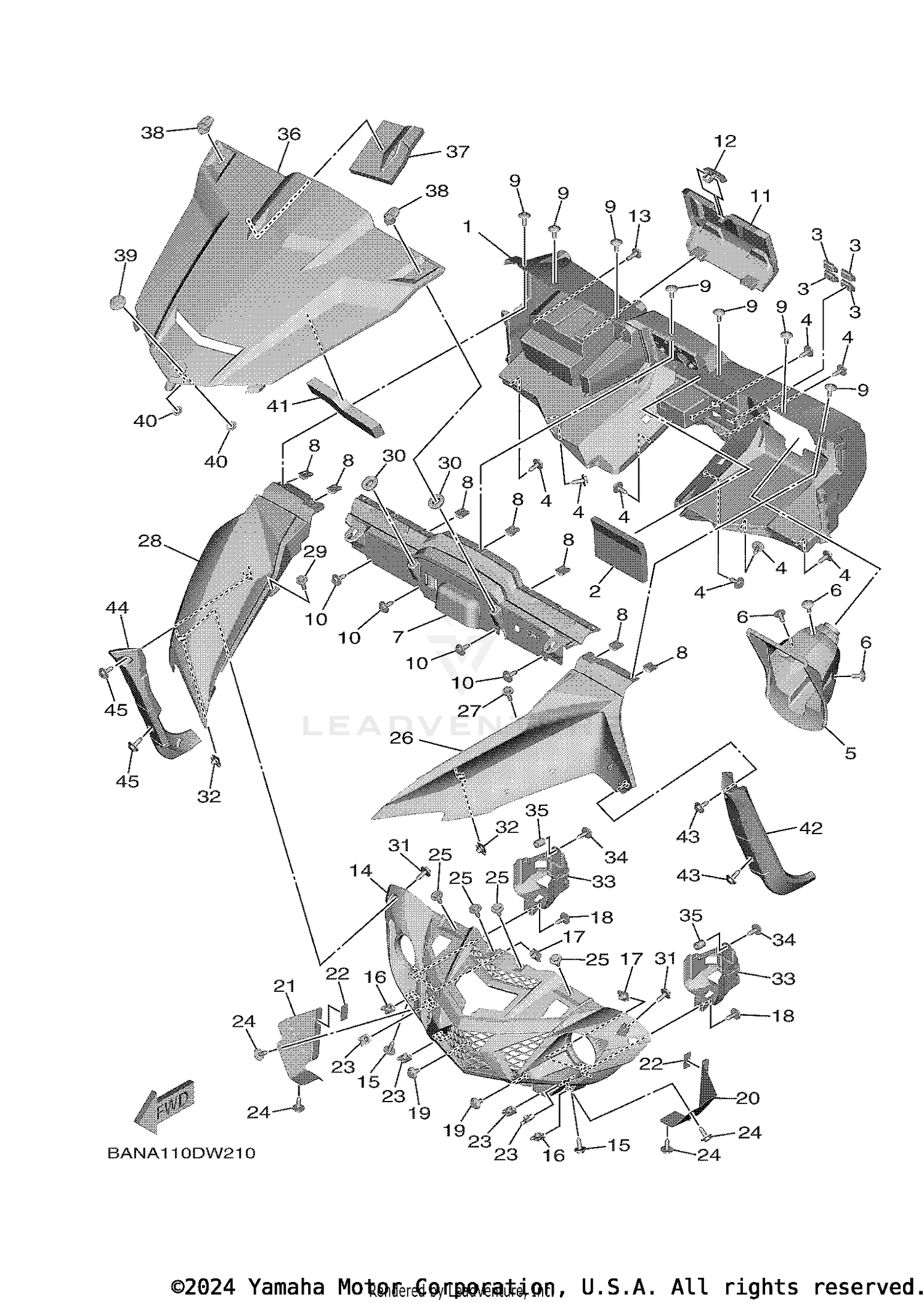

Front Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PANEL, INSTRUMENT
BAR-K7711-00-00
Superseded by BAR-K7711-01-00
|
$226.99 | ||
|
Unavailable |
|||
|
#2
INSULATOR 4
B8K-F173S-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
PLUG, HOLE
BG4-F312G-00-00
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, WITH WASHER
90119-06226-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, STEERING
BG4-F3818-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, HEXAGON SOCKET HEAD
90110-06090-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
COVER, FRONT
BG4-F2865-00-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT, SPRING
90183-062A1-00
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, HEXAGON SOCKET HEAD
90110-06090-00
|
$5.49 | ||
|
Unavailable |
|||
|
#10
BOLT, WITH WASHER
90119-06226-00
|
$2.80 | ||
|
Unavailable |
|||
|
#11
LID
BG4-F160F-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
LOCK
F2X-U2875-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, SPECIAL 1
JW1-K6179-01-00
|
$1.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
GRILLE, FRONT
BG4-F8309-11-00
|
$92.99 | ||
|
Unavailable |
|||
|
#15
BOLT, WITH WASHER
90119-06226-00
|
$2.80 | ||
|
Unavailable |
|||
|
#16
NUT, SPRING
90183-062A1-00
|
$2.20 | ||
|
Unavailable |
|||
|
#17
NUT, SPRING
90183-062A1-00
|
$2.20 | ||
|
Unavailable |
|||
|
#18
BOLT, WITH WASHER
90119-06226-00
|
$2.80 | ||
|
Unavailable |
|||
|
#19
BOLT
90109-06202-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#20
COVER 1
BG4-E246A-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
COVER 2
BG4-E246E-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
DAMPER
5UG-K7588-01-00
|
$8.49 | ||
|
Unavailable |
|||
|
#23
NUT, SPRING
90183-062A1-00
|
$2.20 | ||
|
Unavailable |
|||
|
#24
BOLT, WITH WASHER
90119-06226-00
|
$2.80 | ||
|
Unavailable |
|||
|
#25
BOLT, WITH WASHER
90119-06226-00
|
$2.80 | ||
|
Unavailable |
|||
|
#26
FRONT FENDER COMP.
BG4-F1510-30-00
|
$254.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, SPECIAL 1
JW1-K6179-01-00
|
$1.75 | ||
|
Unavailable |
|||
|
#28
FRONT FENDER COMP.
BG4-F1501-30-00
|
$249.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, SPECIAL 1
JW1-K6179-01-00
|
$1.75 | ||
|
Unavailable |
|||
|
#30
GROMMET
90480-01558-00
|
$4.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#31
BOLT, WITH WASHER
90119-06226-00
|
$2.80 | ||
|
Unavailable |
|||
|
#32
NUT, SPRING
90183-062A1-00
|
$2.20 | ||
|
Unavailable |
|||
|
#33
COVER, HEADLIGHT
2UD-F838E-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT, WITH WASHER
90119-06226-00
|
$2.80 | ||
|
Unavailable |
|||
|
#35
HOSE
90445-05003-00
Superseded by 90445-08029-00
|
$3.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
HOOD ASSY 3
BG4-F197A-60-00
|
$170.99 | ||
|
Unavailable |
|||
|
#37
INSULATOR 4
B8K-F173S-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#38
LEVER, LOCK
1XD-2175K-10-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
TUNING FORK MARK
1XD-F175B-01-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
NUT, SPRING
90183-06071-00
|
$0.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#41
DAMPER, PLATE
90520-50004-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
EXTENSION, FRONT FENDER 1
BG4-K8185-01-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
BOLT, WITH WASHER
90119-06226-00
|
$2.80 | ||
|
Unavailable |
|||
|
#44
EXTENSION, FRONT FENDER 2
BG4-K8186-01-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
BOLT, WITH WASHER
90119-06226-00
|
$2.80 | ||
|
Unavailable |
|||
