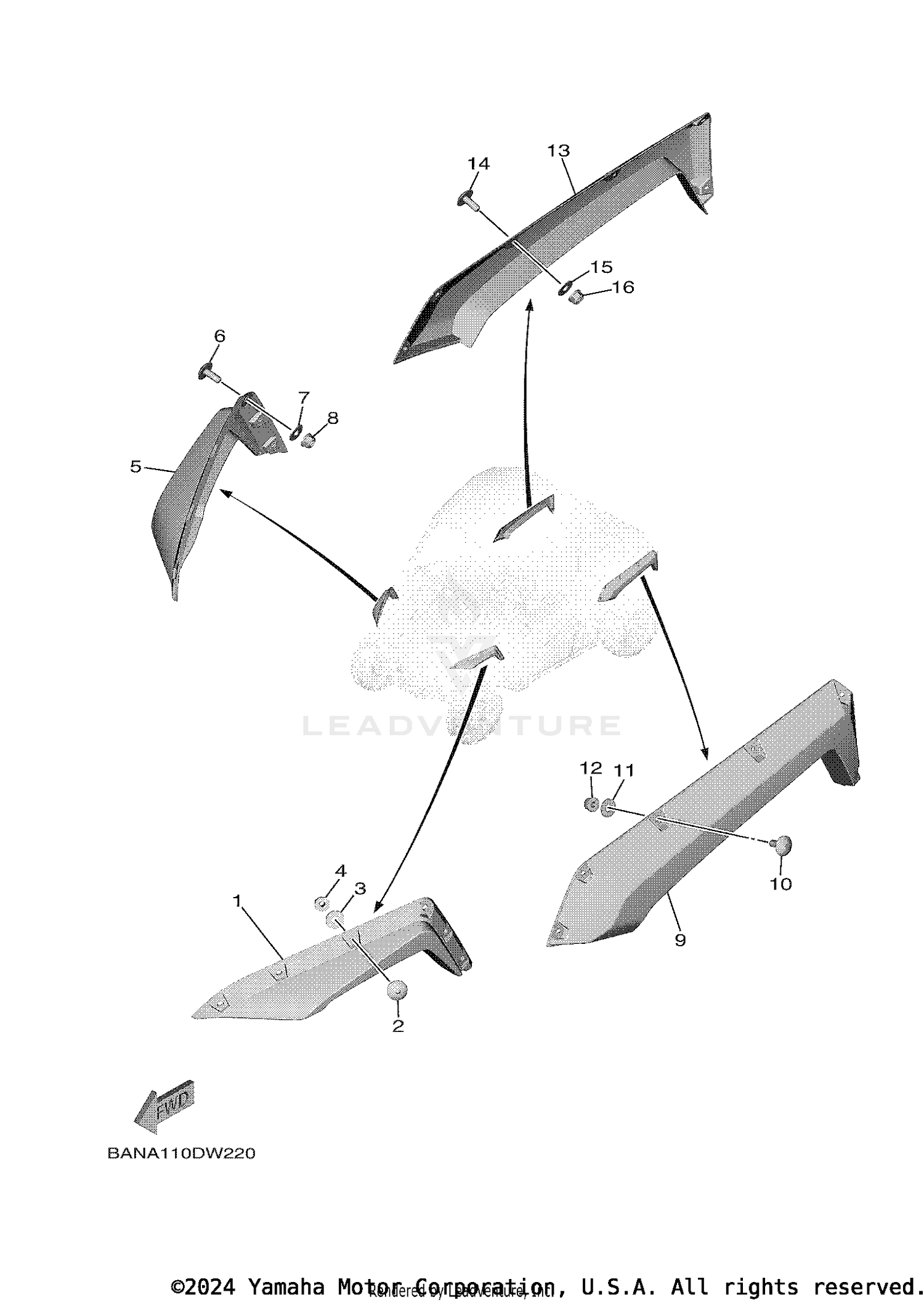

Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, OVER
BG4-F1551-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT, HEXAGON SOCKET HEAD
90110-06090-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, PLATE
90201-06801-00
Superseded by 90201-06020-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT, U FLANGE
95602-06200-00
Superseded by 95604-06200-00
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#5
FENDER, OVER 2
BG4-F1555-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, HEXAGON SOCKET HEAD
90110-06090-00
|
$5.49 | ||
|
Unavailable |
|||
|
#7
WASHER, PLATE
90201-06801-00
Superseded by 90201-06020-00
|
$10.49 | ||
|
Unavailable |
|||
|
#8
NUT, U FLANGE
95602-06200-00
Superseded by 95604-06200-00
|
$2.95 | ||
|
Unavailable |
|||
|
#9
FENDER, OVER 3
B8K-F1559-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, HEXAGON SOCKET HEAD
90110-06090-00
|
$5.49 | ||
|
Unavailable |
|||
|
#11
WASHER, PLATE
90201-06801-00
Superseded by 90201-06020-00
|
$10.49 | ||
|
Unavailable |
|||
|
#12
NUT, U FLANGE
95602-06200-00
Superseded by 95604-06200-00
|
$2.95 | ||
|
Unavailable |
|||
|
#13
FENDER, OVER 4
B8K-F1560-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, HEXAGON SOCKET HEAD
90110-06090-00
|
$5.49 | ||
|
Unavailable |
|||
|
#15
WASHER, PLATE
90201-06801-00
Superseded by 90201-06020-00
|
$10.49 | ||
|
Unavailable |
|||
|
#16
NUT, U FLANGE
95602-06200-00
Superseded by 95604-06200-00
|
$2.95 | ||
|
Unavailable |
|||
