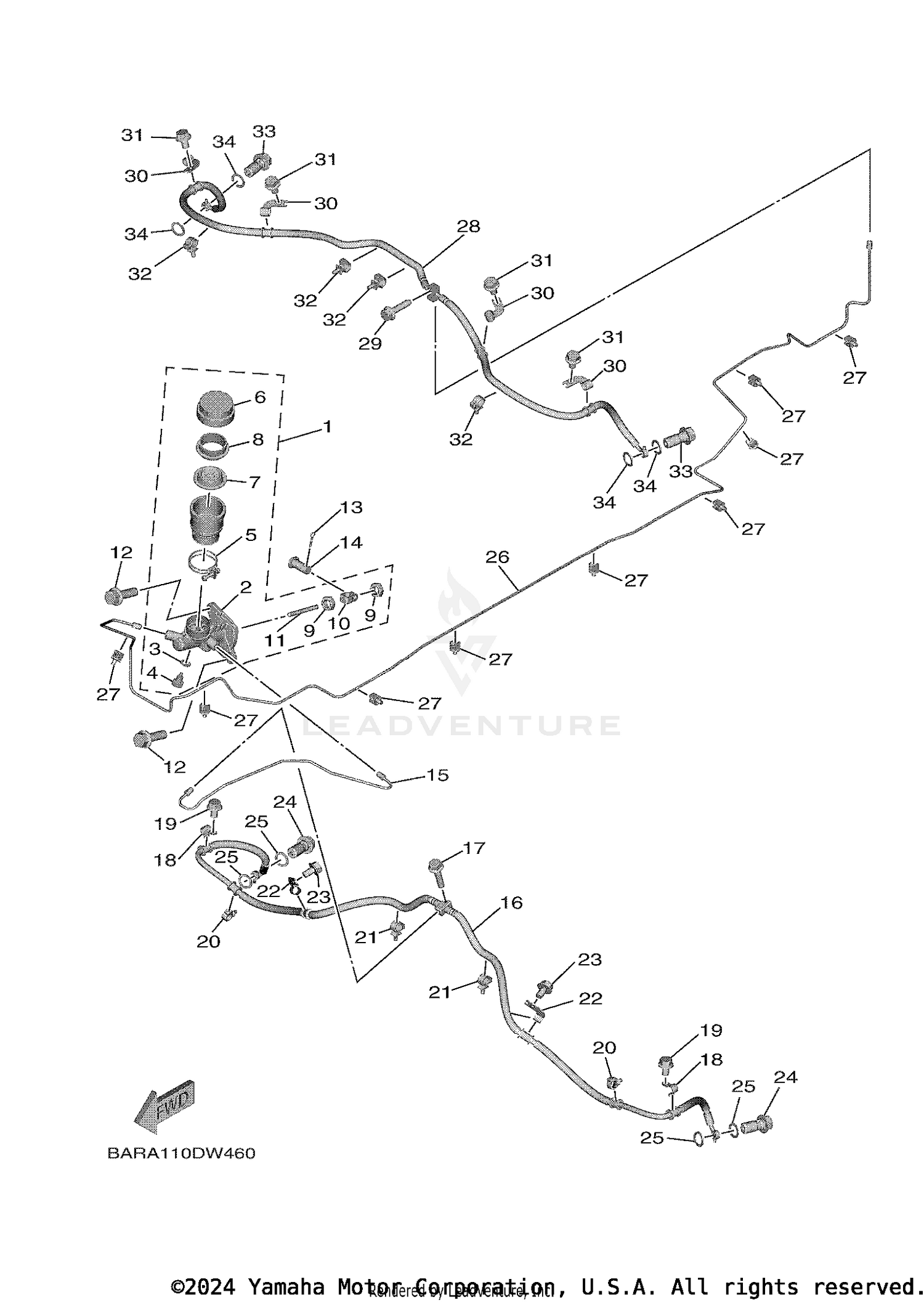

Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MASTER CYLINDER ASSY
2PG-2583T-00-00
Superseded by 2PG-2583T-01-00
|
$265.99 | ||
|
Unavailable |
|||
|
#2
CYLINDER KIT, MASTER
5UG-25808-00-00
|
$95.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, OIL BOLT
5UG-25878-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, OIL 1
5UG-25877-00-00
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
|
#5
BAND
5UG-25719-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAP, RESERVOIR
5UG-25852-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
DIAPHRAGM, RESERVOIR
5UG-25854-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BUSH, DIAPHRAGM
5UG-25855-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT
4SS-27218-00-00
Superseded by 95317-08700-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
JOINT
2YK-27222-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PUSH ROD COMP.
5UG-25880-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE
90105-08129-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN, CLEVIS
90240-08005-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIN, COTTER
91402-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
EMBLEM 7
BAR-F5882-00-00
Superseded by BKP-F1787-01-00
|
$15.49 | ||
|
Unavailable |
|||
|
#16
HOSE, BRAKE 1
BG4-F5872-02-00
Superseded by BG4-F5872-03-00
|
$91.99 | ||
|
Unavailable |
|||
|
#17
BOLT, FLANGE
95812-06025-00
Superseded by 95817-06025-00
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#18
HOLDER, BRAKE HOSE 1
5KM-25875-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE
95812-06010-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLAMP
5B4-F1338-00-00
|
$3.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
CLAMP
90464-16012-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
HOLDER, BRAKE HOSE 2
2PG-25876-00-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE
95812-06010-00
|
$3.20 | ||
|
Unavailable |
|||
|
#24
BOLT, UNION
90401-10015-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, PLATE
90201-10118-00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#26
PIPE, BRAKE
BAR-F5871-10-00
Superseded by BAR-F5871-11-00
|
$36.99 | ||
|
Unavailable |
|||
|
#27
CLAMP 1
5KM-81677-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
HOSE, BRAKE 2
BAR-F5873-01-00
Superseded by BAR-F5873-02-00
|
$64.99 | ||
|
Unavailable |
|||
|
#29
BOLT, FLANGE
90105-06833-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#30
HOLDER, BRAKE HOSE 2
2PG-25876-00-00
|
$3.55 | ||
|
Unavailable |
|||
|
#31
BOLT, FLANGE
95812-06010-00
|
$3.20 | ||
|
Unavailable |
|||
|
#32
CLAMP
90464-16012-00
|
$8.49 | ||
|
Unavailable |
|||
|
#33
BOLT, UNION
90401-10015-00
|
$12.49 | ||
|
Unavailable |
|||
|
#34
WASHER, PLATE
90201-10118-00
|
$3.80 | ||
|
Unavailable |
|||
