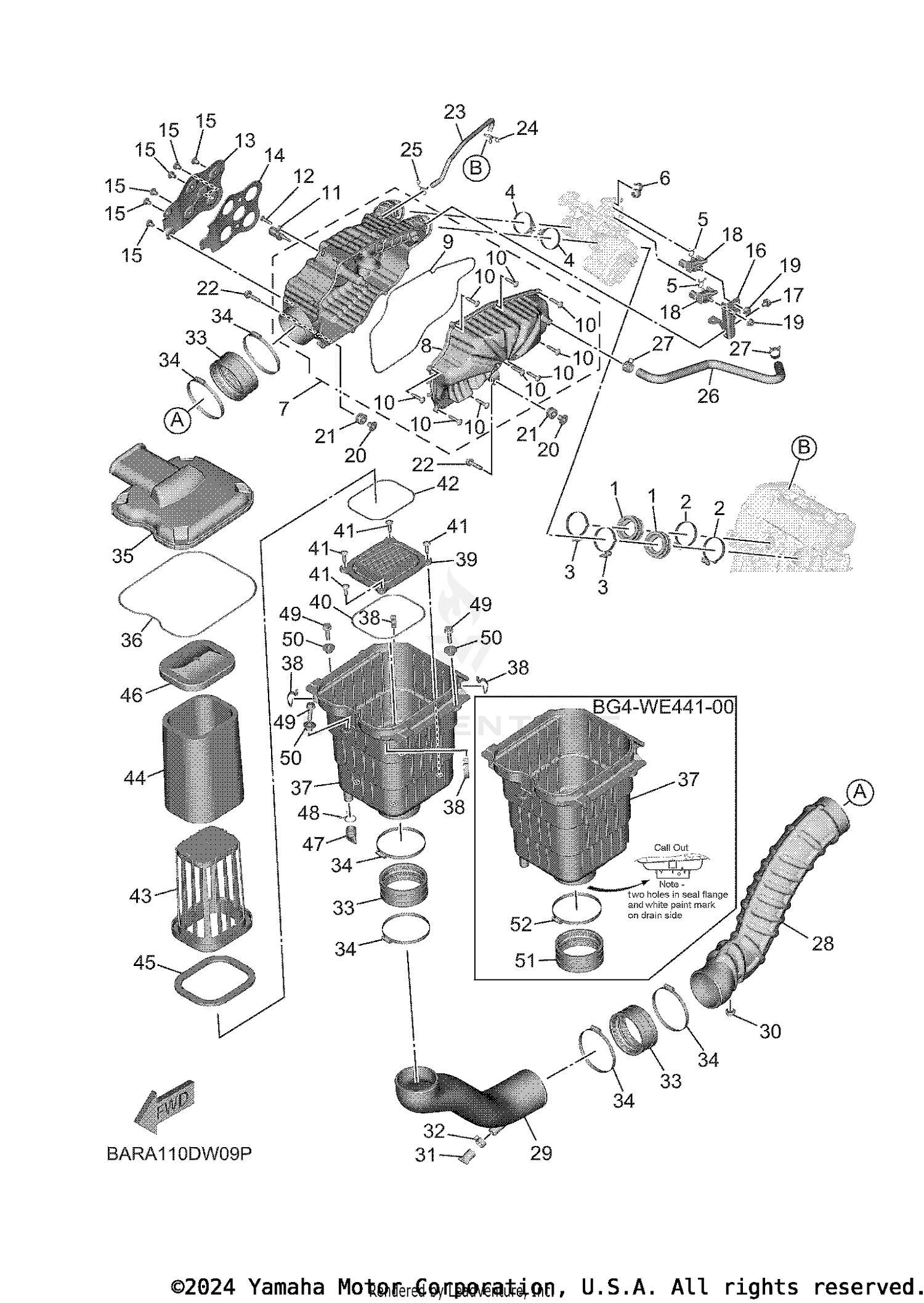

Intake Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#37
AIR CLEANER CASE COMPLETE
BG4-WE441-00-00
|
$108.99 | ||
|
Unavailable |
|||
|
#37
CASE, AIR CLEANER 1
BG4-E4411-10-00
|
$79.99 | ||
|
Unavailable |
|||
|
#38
CLIP, CAP FITTING
B16-E4424-00-00
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#39
ELEMENT, AIR CLEANER 2
BG4-E4461-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
SEAL
BG4-E4462-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
SCREW, TAPPING
97702-50020-00
Superseded by 90167-05078-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
SEAL
BG4-E4457-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
GUIDE
BG4-E4458-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
ELEMENT, AIR CLEANER
BG4-E4451-00-00
|
$80.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
DAMPER 1
BG4-E4425-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
CAP, CLEANER CASE 2
BG4-E4422-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
PIPE, DRAIN
B16-E443E-00-00
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#48
CLIP
90467-220A1-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#49
BOLT, FLANGE
90105-06833-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#50
COLLAR
90387-071E0-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#51
SEAL
B4J-14239-00-00
|
$40.99 | ||
|
Unavailable |
|||
|
#52
HOSE CLAMP ASSY
90450-99018-00
|
$23.99 | ||
|
Unavailable |
|||
|
#1
JOINT, CARBURETOR 1
BG4-13586-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOSE CLAMP ASSY
90450-56011-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOSE CLAMP ASSY
90450-56013-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOSE CLAMP ASSY
90450-50005-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLIP
90467-10041-00
Superseded by 90467-100A1-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
CLAMP
90464-09M31-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SILENCER ASSY, INTAKE
BG4-E4440-00-00
|
$133.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SILENCER, INTAKE 1
BG4-E4431-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SEAL
BG4-E4467-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, TAPPING
97702-50025-00
Superseded by 97707-50025-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
SENSOR, AIR TEMPERATURE
8FP-85886-00-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, TAPPING
97702-50520-00
|
$0.45 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLATE
BG4-E4477-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
DAMPER
BG4-E4409-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, BIND
98902-06008-00
Superseded by 98980-06008-00
|
$0.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
STAY 1
BG4-E4493-00-00
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE
95812-06008-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
SOLENOID VALVE ASSY
BG4-86120-00-00
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, WITH WASHER
95702-06500-00
|
$2.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
COLLAR
90387-06199-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#21
GROMMET
90480-12596-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE
95822-06025-00
Superseded by 95817-06025-00
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#23
PIPE, BREATHER 1
BG4-11166-00-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLIP
90467-10041-00
Superseded by 90467-100A1-00
|
$8.49 | ||
|
Unavailable |
|||
|
#25
CLIP
90467-12052-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
PIPE, OIL TANK BREATHER
BG4-F1745-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
CLIP
90467-22097-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
DUCT
BG4-E4437-01-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
DUCT
BG4-E443A-03-00
|
$37.99 | ||
|
Unavailable |
|||
|
#30
GROMMET
90480-13567-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
SEAL
59V-14457-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
CLIP
90467-220A0-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
SEAL
BG4-E4476-10-00
|
$9.49 | ||
|
Unavailable |
|||
|
#34
HOSE CLAMP ASSY
90450-99806-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#35
CAP, CLEANER CASE 1
BG4-E4412-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
SEAL
BG4-E4452-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
