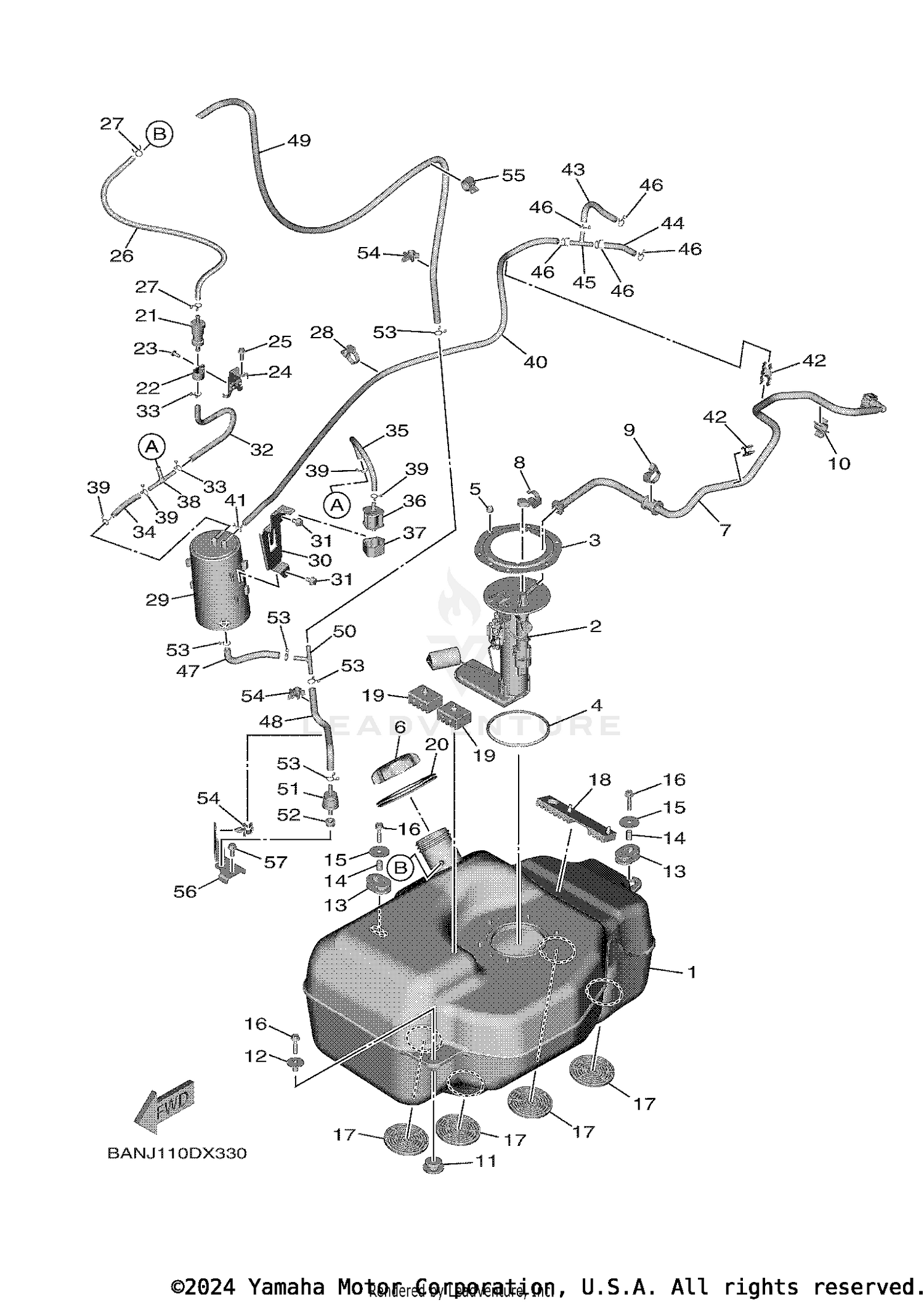

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK COMP.
BG4-F4110-01-00
Superseded by BG4-F4110-02-00
|
$275.99 | ||
|
Unavailable |
|||
|
#2
FUEL PUMP COMP.
B4J-13907-00-00
|
$397.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BRACKET, FUEL PUMP
3B4-24491-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
O-RING
1S3-24486-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT, CROWN
95302-06800-00
Superseded by 95380-06800-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAP ASSY
BB5-24610-00-00
Superseded by BKP-24610-00-00
|
$34.99 | ||
|
Unavailable |
|||
|
#7
PIPE, FUEL 1
BG4-13971-01-00
|
$92.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLAMP
90464-14004-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLAMP
90464-20010-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLAMP
90464-12015-00
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#11
GROMMET
90480-18016-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR
90387-07021-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
GROMMET
90480-01400-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR (2UJ)
90387-061V1-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
90201-065G8-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT,FLANGE
95802-06030-00
Superseded by 95817-06030-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#17
DAMPER, LOCATING 1
2MB-F4181-00-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#18
DAMPER, LOCATING 1
2HC-F4181-00-00
|
$4.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
DAMPER, LOCATING 2
2MB-F4182-00-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#20
COVER, FUEL INLET
BG4-K8272-00-00
|
$2.90 | ||
|
Available to order. Add to View Price |
|||
|
#21
ROLL OVER VALVE ASSY
5PX-24180-00-00
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLAMP
90464-15014-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, BIND
90154-05064-00
Superseded by 98907-05012-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
BRACKET, CANISTOR
BAR-F419F-02-00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, FLANGE
95022-06012-00
|
$3.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
HOSE (L930)
90445-09830-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#28
CLAMP
90464-20010-00
|
$3.50 | ||
|
Unavailable |
|||
|
#29
CANISTER ASSY
7CC-F4170-02-00
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
CANISTER HOLDER ASSY
BG4-F4190-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, FLANGE
95802-06010-00
Superseded by 95812-06010-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#32
HOSE (L200)
90445-09044-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.75 | ||
|
Unavailable |
|||
|
#34
HOSE (L54)
90445-09043-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#35
HOSE (L200)
90445-09044-00
|
$11.49 | ||
|
Unavailable |
|||
|
#36
PIPE JOINT ASSY
3B4-24380-11-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
BAND 1
3B4-24398-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
WAY 3
90413-08012-00
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#39
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.75 | ||
|
Unavailable |
|||
|
#40
HOSE (L1050)
90445-10062-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.75 | ||
|
Unavailable |
|||
|
#42
CLAMP
90464-11005-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#43
HOSE
90445-10041-00
Superseded by 90445-10829-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#44
HOSE (L65)
90445-10061-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#45
WAY 3
90413-07007-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#46
CLIP
90467-10041-00
Superseded by 90467-100A1-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#47
PIPE 5
BG4-24315-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#48
PIPE 11
BG4-24322-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#49
HOSE (L1010)
90445-11100-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
WAY 3
90413-08012-00
|
$4.90 | ||
|
Unavailable |
|||
|
#51
VALVE, CHECK 1
BG4-24362-00-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#52
GROMMET
90480-10003-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#53
CLIP
90467-10041-00
Superseded by 90467-100A1-00
|
$8.49 | ||
|
Unavailable |
|||
|
#54
CLAMP
90464-14M55-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#55
CLAMP
90464-16006-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#56
BRACKET 1
BG4-F148U-00-00
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#57
BOLT, FLANGE
90105-06831-00
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
