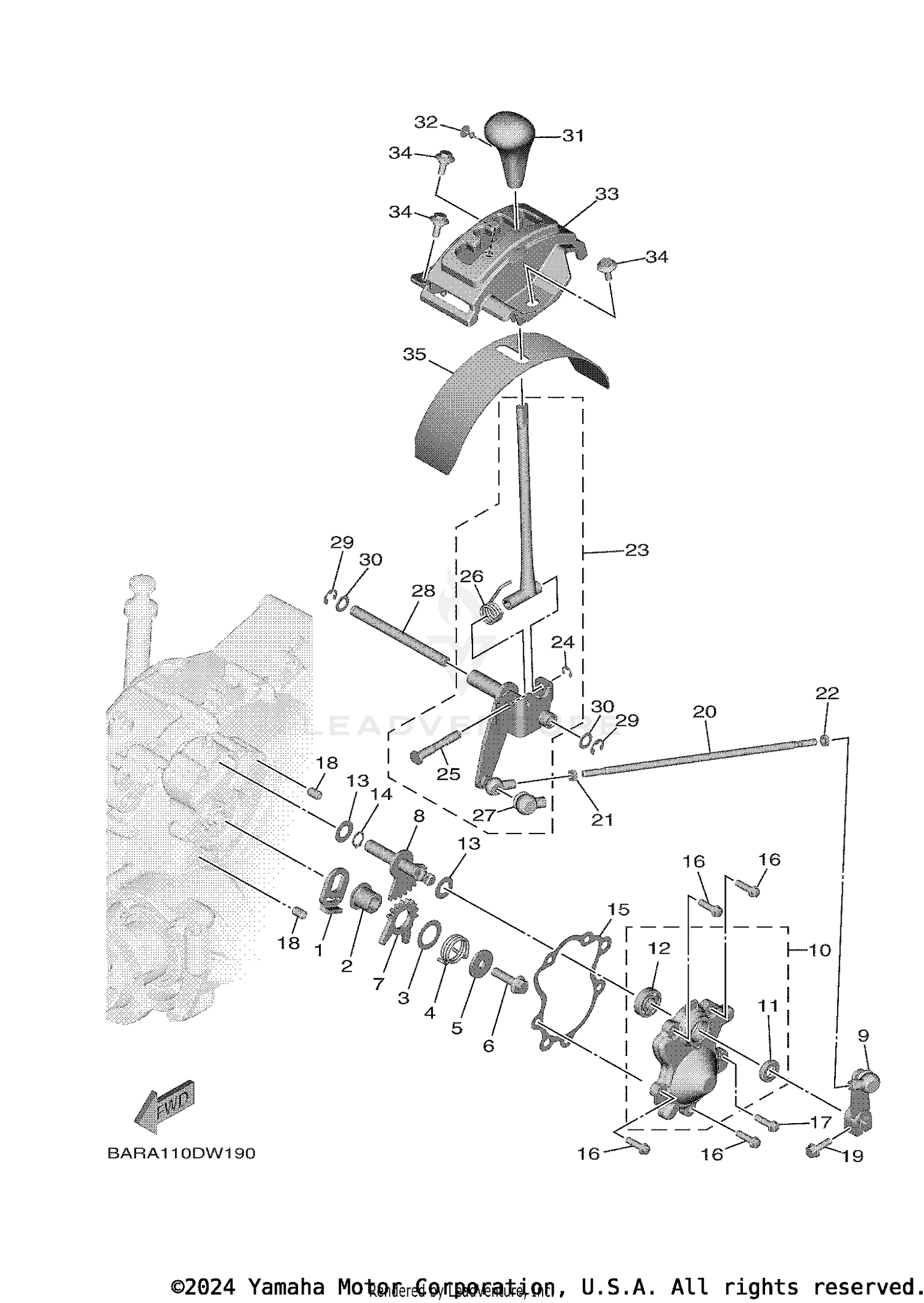

Shift Shaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LEVER
BG4-18198-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
COLLAR
90387-13007-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, PLATE (T=1.0)
90201-20276-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, TORSION
90508-32143-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
90201-085G6-00
Superseded by 90201-083A8-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE
95822-08030-00
Superseded by 95817-08030-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
LEVER
BG4-18191-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
SHIFT SHAFT COMP.
BG4-18103-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SHIFT GUIDE COMP.
BG4-18104-00-00
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIFTER BRKT. ASSY
BG4-18380-00-00
|
$86.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
OIL SEAL (SD 12-22-5 HS)
93102-12106-00
|
$12.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
BEARING
93306-00106-00
Superseded by 93306-00105-00
|
$33.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
WASHER, PLATE
90201-127E1-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#14
CIRCLIP
99009-12400-00
|
$3.59 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
GASKET
BG4-18146-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE
95027-06020-00
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE
90105-06201-00
Superseded by 95022-06020-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIN, DOWEL
99530-08012-00
|
$6.60 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE
95812-06020-00
Superseded by 95817-06020-00
|
$3.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
ROD, SHIFT
BG4-18115-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT (COUNTER CLOCKWISE)
90170-06228-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT
95312-06700-00
Superseded by 95317-06700-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
SHIFT LEVER ASSY
BG4-E8150-00-00
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
CIRCLIP
99002-06600-00
Superseded by 99001-06600-00
|
$1.10 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#25
SHAFT, SHIFT
1HP-E8125-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
SPRING, RETURN
1HP-E8196-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
COVER, DUST
2H9-18154-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
PIN, SHIFT
BG4-18173-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
CIRCLIP
99001-08600-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, PLATE
90201-10119-00
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#31
KNOB, SHIFT LEVER
28P-18174-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
RIVET
90269-05055-00
|
$9.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
GUIDE, SHIFT
BG4-E8172-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT
90109-06172-00
|
$3.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35
COVER, DUST
1HP-E8154-01-00
|
$8.49 | ||
|
Unavailable |
|||
