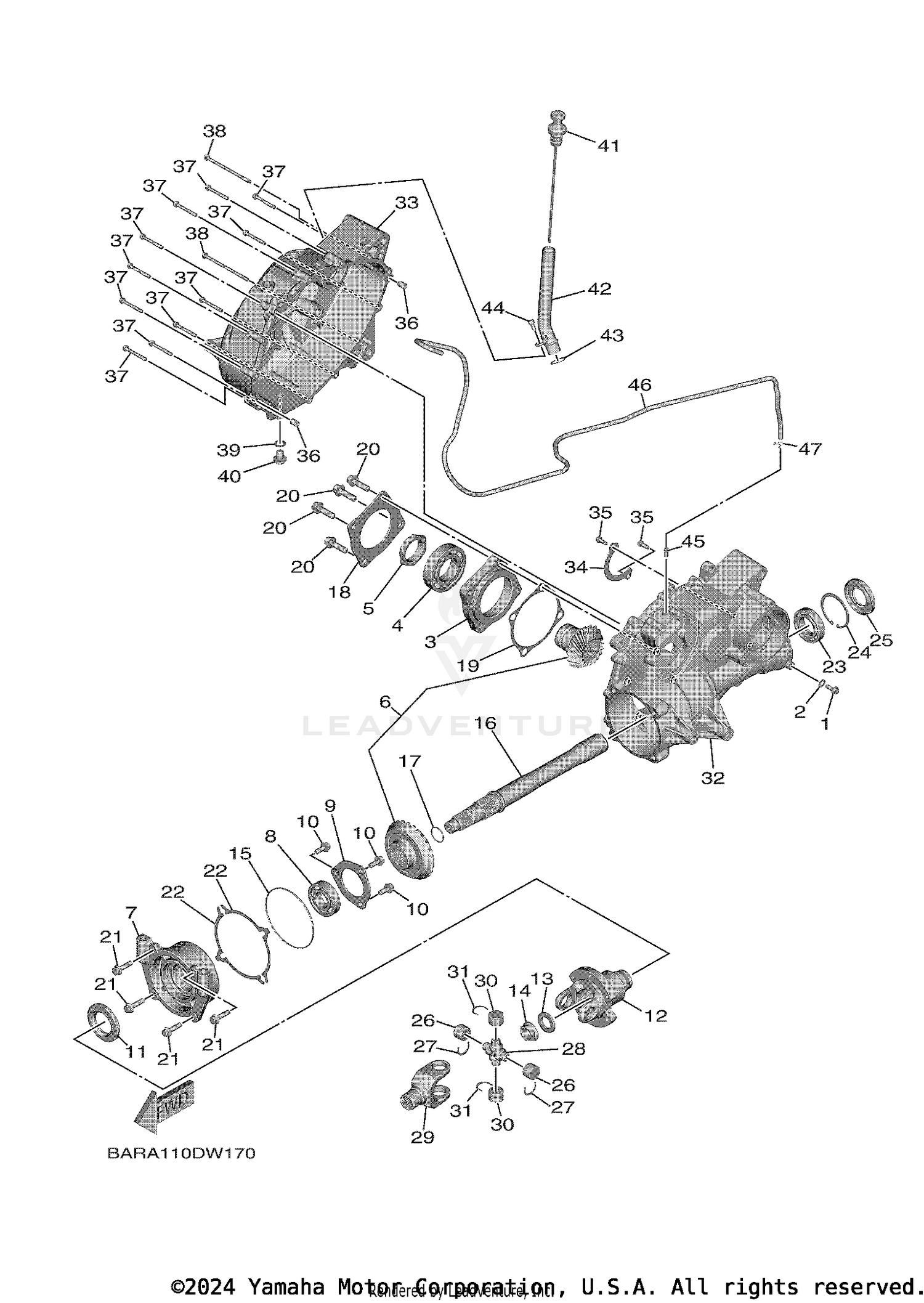

Middle Drive Gear Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BOLT, FLANGE
95022-06010-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
GASKET
90430-06014-00
|
$8.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
HOUSING, BEARING
BG4-17521-00-00
|
$85.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING
93306-20904-00
|
$93.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT
90179-44001-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PINION SET
BG4-17530-00-00
|
$447.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOUSING, BEARING
BG4-17551-00-00
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING
93306-20654-00
|
$83.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE, BRG. 2
BG4-17568-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE
90105-08171-00
Superseded by 95812-08020-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#11
OIL SEAL
93102-40031-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
YOKE,JOINT 2
BG4-17576-00-00
|
$264.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLATE
90201-22026-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT
90179-22025-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
O-RING
93211-05471-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
SHAFT, MIDDLE DRIVEN
BG4-17553-00-00
|
$216.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
O-RING
93210-25755-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
PLATE, BEARING COVER
BG4-15383-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
SHIM, PINION (0.25T)
BG4-17531-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
SHIM, PINION (0.30T)
BG4-17531-10-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
SHIM, PINION (0.35T)
BG4-17531-20-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
SHIM, PINION (0.40T)
BG4-17531-30-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
SHIM, PINION (0.45T)
BG4-17531-40-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
SHIM, PINION (0.50T)
BG4-17531-50-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE
95812-10035-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE
90105-08236-00
|
$5.00 | ||
|
Available to order. Add to View Price |
|||
|
#22
SHIM, THRUST (0.15T)
BG4-17537-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
SHIM, THRUST (0.20T)
BG4-17537-10-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
SHIM, THRUST (0.25T)
BG4-17537-20-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
SHIM, THRUST (0.30T)
BG4-17537-30-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
SHIM, THRUST (0.40T)
BG4-17537-40-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
SHIM, THRUST (0.50T)
BG4-17537-50-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
SHIM, THRUST (0.60T)
BG4-17537-60-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BEARING
93306-00704-00
Superseded by 93306-00702-00
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
CIRCLIP
99009-62500-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
OIL SEAL
93102-35042-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
BEARING
93399-99965-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
CIRCLIP
93440-23197-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#28
SPIDER
1YW-46187-10-00
|
$83.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
YOKE, JOINT 2
BG4-46147-00-00
|
$133.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
BEARING
93399-99965-00
|
$28.99 | ||
|
Unavailable |
|||
|
#31
CIRCLIP
93440-23197-00
|
$3.95 | ||
|
Unavailable |
|||
|
#32
CASE, TRANSFER 1
BG4-17541-10-00
|
$370.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
CASE, TRANSFER 2
BG4-17542-01-00
|
$284.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
PLATE, BEARING
B4J-17558-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT, FLANGE
90105-06187-00
Superseded by 95022-06016-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#36
PIN, DOWEL
99530-10114-00
|
$2.65 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#37
BOLT, FLANGE
95022-06045-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#38
BOLT, FLANGE
95022-06100-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#39
GASKET
90430-12213-00
|
$6.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#40
PLUG, STRAIGHT SCREW
90340-12006-00
|
$4.55 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#41
PLUG, OIL LEVEL
BG4-15362-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
PIPE, OIL
BG4-15112-00-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
O-RING
93210-21631-00
|
$8.49 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#44
BOLT
91312-06012-00
Superseded by 91317-06012-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
CONNECTOR, SUCTION PIPE
137-13115-01-00
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
HOSE (L1200)
90445-080K8-00
|
$8.99 | ||
|
Unavailable |
|||
|
#47
CLIP
90467-08075-00
Superseded by 90467-08021-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
