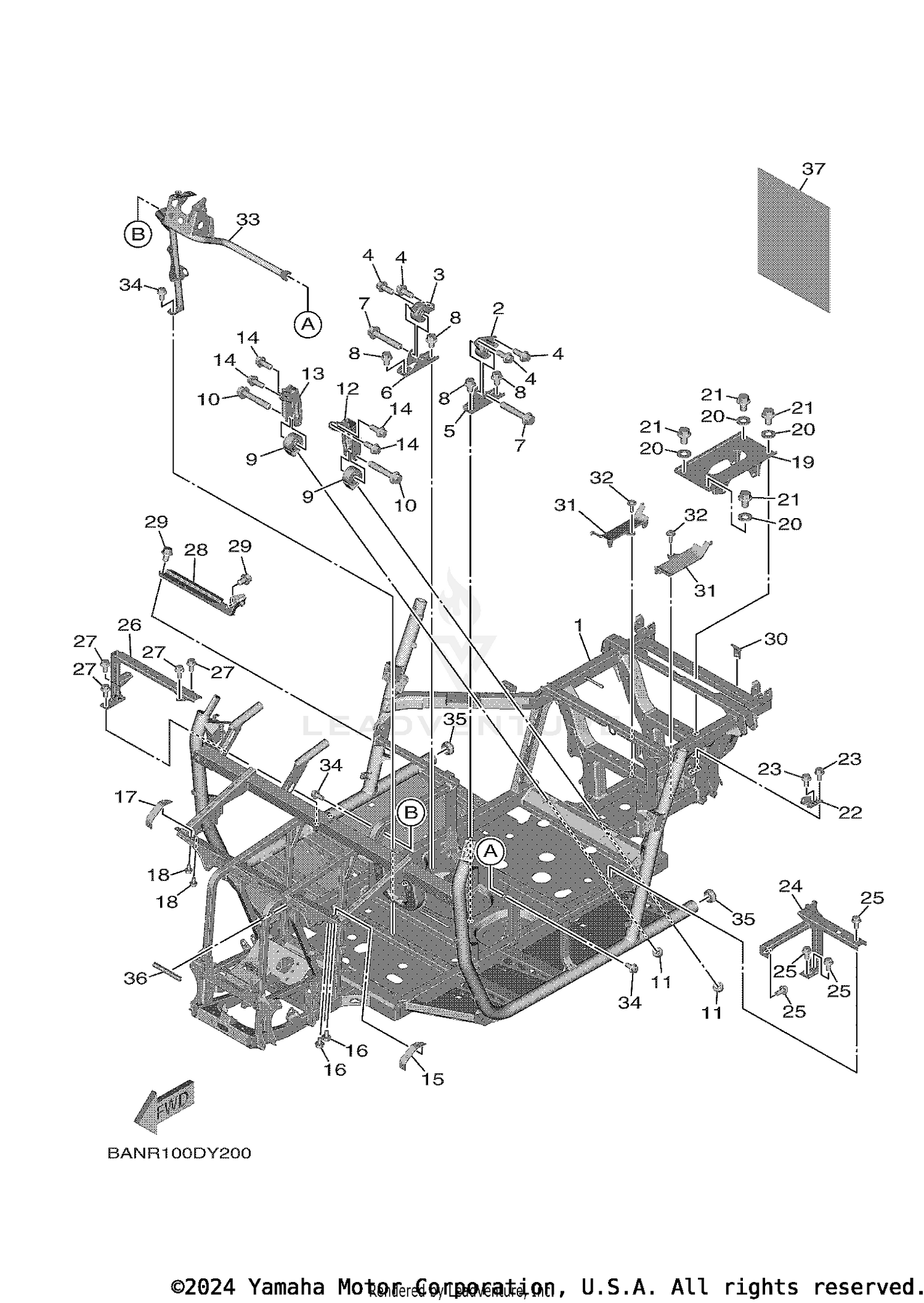

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME COMP.
BAN-F1110-30-00
|
$3,123.99 | ||
|
Unavailable |
|||
|
#2
ENGINE BRACKET COMP.
BG4-21410-00-00
|
$80.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
ENGINE BRACKET COMP. 2
BG4-21420-00-00
|
$80.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, FLANGE DEEP RE
95D32-10025-00
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
|
#5
BRACKET 5
BG4-F161F-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRACKET 3
BG4-F161A-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE DEEP RE
95D32-12065-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE DEEP RE
95D32-10016-00
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#9
BRACKET, ENGINE 1
B4J-21490-10-00
|
$90.99 | ||
|
Unavailable |
|||
|
#10
BOLT, FLANGE DEEP RE
95D32-12065-00
|
$3.95 | ||
|
Unavailable |
|||
|
#11
NUT
90179-10033-00
|
$99,999.99 | ||
|
Unavailable |
|||
|
#12
SUPPORT, ENGINE
B4J-F1283-03-00
|
$23.99 | ||
|
Unavailable |
|||
|
#13
SUPT., ENGINE 2
B4J-F1284-03-00
|
$26.99 | ||
|
Unavailable |
|||
|
#14
BOLT, FLANGE DEEP RE
95D32-10025-00
|
$1.55 | ||
|
Unavailable |
|||
|
#15
BRACKET 1
BG4-F172K-00-00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE
95812-06010-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#17
BRACKET 1
BG4-F172K-00-00
|
$4.95 | ||
|
Unavailable |
|||
|
#18
BOLT, FLANGE
95812-06010-00
|
$3.20 | ||
|
Unavailable |
|||
|
#19
STAY, SUPPORT 1
BG4-F831T-00-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
90201-12039-00
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE
90105-12121-00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#22
BRKT., RR. AXLE
BAR-F1981-00-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE
95812-12020-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
LUG, SEAT RAIL LH.
BG4-F1143-10-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, FLANGE
90105-08867-00
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#26
MEMBER, SEAT SUPPORT
BG4-F255G-01-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, FLANGE
90105-08867-00
|
$1.95 | ||
|
Unavailable |
|||
|
#28
BRACKET, LOCK 2
BG4-F287M-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, FLANGE
95812-10020-00
Superseded by 95817-10020-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
STAY, MUFFLER 2
B8K-F1446-00-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#31
COVER 3
2MB-F198J-00-00
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, SPECIAL 1
90119-06868-00
Superseded by JW1-K6179-01-00
|
$1.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#33
REINFORCEMENT, FRAME 1
BG4-F1986-01-00
|
$704.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT, FLANGE
90105-08867-00
|
$1.95 | ||
|
Unavailable |
|||
|
#35
PLUG
B8K-F2417-00-00
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#36
MOLD, FUEL TANK
31A-24188-01-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
POUCH
1P0-F8186-01-00
|
$2.90 | ||
|
Available to order. Add to View Price |
|||
