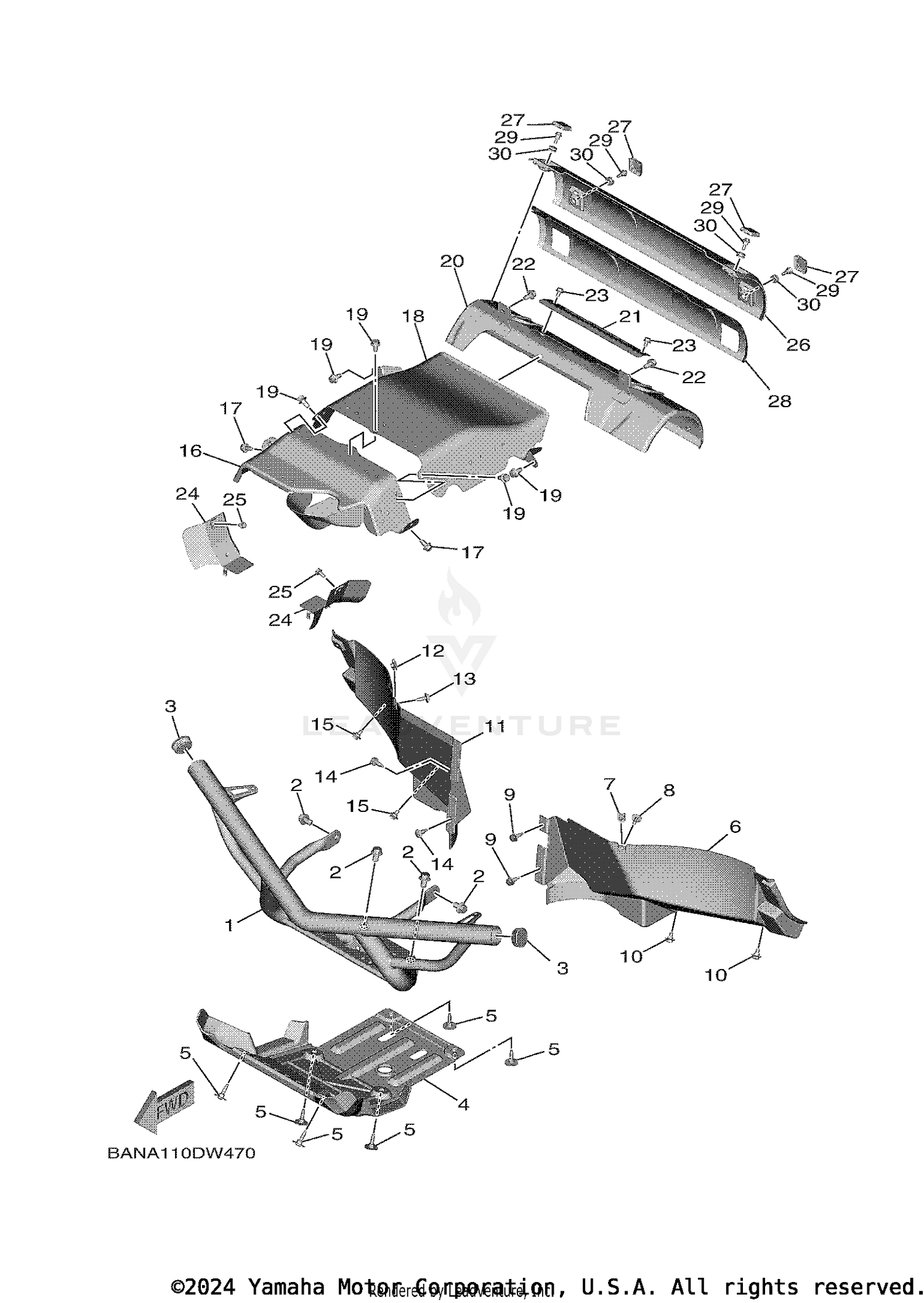

Guard Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BAR, CARRY FRONT
BAR-F845N-11-00
|
$253.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT, FLANGE
95812-10016-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
PLUG
5UG-F2417-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER, LOWER
2MB-F8385-00-00
Superseded by 2MB-F8385-01-00
|
$48.99 | ||
|
Unavailable |
|||
|
#5
BOLT
90109-068A5-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
GUARD 1
BG4-F2361-01-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, SPRING
90183-062A1-00
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, WITH WASHER
90119-06226-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#9
RIVET
90269-07805-00
|
$1.75 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
BOLT
90109-06202-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#11
GUARD 2
BG4-F2362-01-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, SPRING
90183-062A1-00
|
$2.20 | ||
|
Unavailable |
|||
|
#13
BOLT, WITH WASHER
90119-06226-00
|
$2.80 | ||
|
Unavailable |
|||
|
#14
RIVET
90269-07805-00
|
$1.75 | ||
|
Unavailable |
|||
|
#15
BOLT
90109-06202-00
|
$3.10 | ||
|
Unavailable |
|||
|
#16
INSULATOR, HEAT
BG4-F2898-02-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE
90105-08867-00
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#18
SHIELD, HEAT
BG4-F3892-02-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE
90105-08867-00
|
$1.95 | ||
|
Unavailable |
|||
|
#20
INSULATOR, MOUNTING
BG4-F2891-01-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
INSULATOR, MOUNTING 2
BG4-F2894-00-00
|
$4.10 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE
90105-08867-00
|
$1.95 | ||
|
Unavailable |
|||
|
#23
BOLT, FLANGE DEEP RECESS
95D32-06010-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#24
PROTECTOR 1
BAR-F2825-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, FLANGE
90105-08867-00
|
$1.95 | ||
|
Unavailable |
|||
|
#26
PROTECTOR, MUFFLER
B8K-F194H-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
CAP
2MB-F143A-00-00
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#28
INSULATOR, HEAT
B8K-F2898-01-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT
90109-06262-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
GROMMET
90480-12025-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
